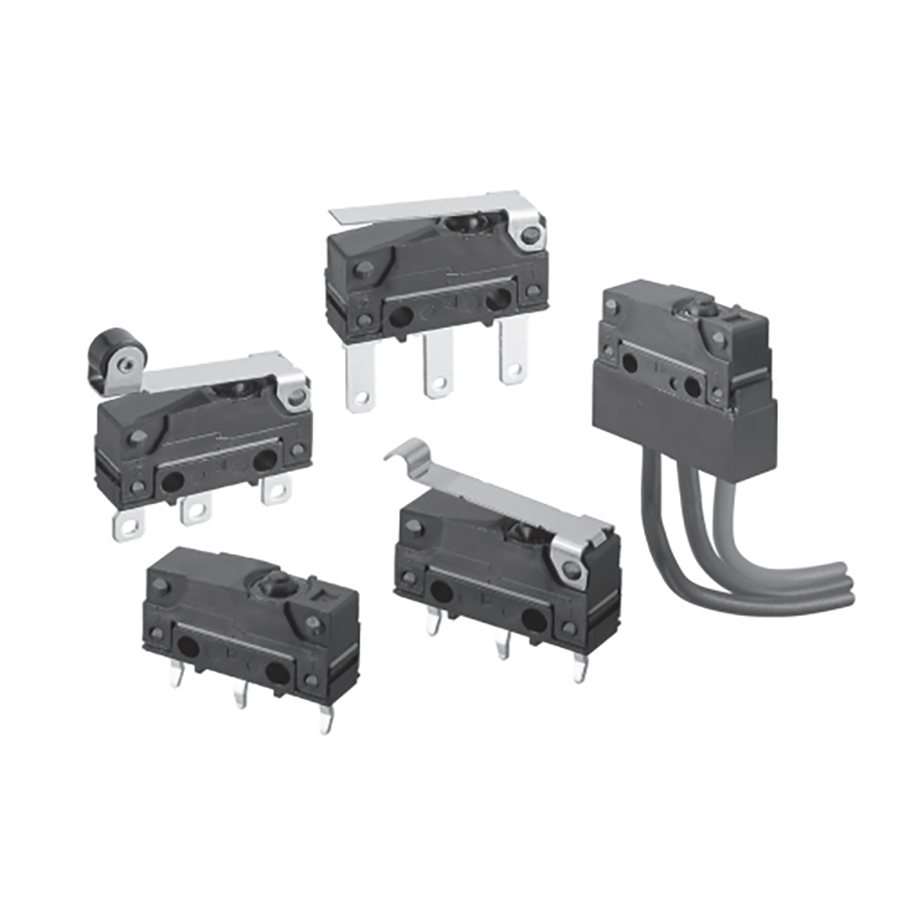

D2SW-P01L2H
Manufacturer:
Omron
Mfr.Part #:
D2SW-P01L2H
Datasheet:
Description:
Snap Action / Limit Switches Chassis Mount SPDT On-Mom Current Rating:100 mA Operating Force:600 mN Lever, Roller
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Length | 22.05 mm |
| Termination | Solder |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Voltage Rating (AC) | 125 V |
| Circuit Type | SPDT |
| Packaging | Bulk |
| Depth | 6.4 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Ratings | Dust Tight, IP67, Waterproof |
| Contact Material(Contact Finish) | Gold |
| Current Rating | 100 mA |
| Max Current Rating | 100 mA |
| Max Voltage Rating (DC) | 30 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Throw Configuration | SPDT |
| Max Voltage Rating (AC) | 125 V |
| Switch Function | On-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 200 kcycles |
| Operating Force | 600 mN |
| Actuator Material | Polyacetal, Resin, Stainless Steel |
| Mechanical Life | 1 Mcycles |
| Differential Travel | 787.4 µm |
| Overtravel | 762 µm |
| Operating Position | 14.5034 mm |
| Contact Current Rating | 100 mA |
| Actuator Type | Lever, Roller |
| Termination Style | Solder Lug |
| Life (Cycles) | 200 kCycles |
| IP Rating(Ingress Protection) | IP67 |
| Release Force | 5.099 gf |
Stock: 372
Distributors
pcbx
pcbxUnit Price$2.12108
Ext.Price$2.12108
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.12108 | $2.12108 |
| 10 | $1.95864 | $19.58640 |
| 25 | $1.83981 | $45.99525 |
| 50 | $1.79620 | $89.81000 |
| 100 | $1.53289 | $153.28900 |
| 300 | $1.41589 | $424.76700 |
| 500 | $1.30782 | $653.91000 |
| 1000 | $1.20801 | $1208.01000 |
