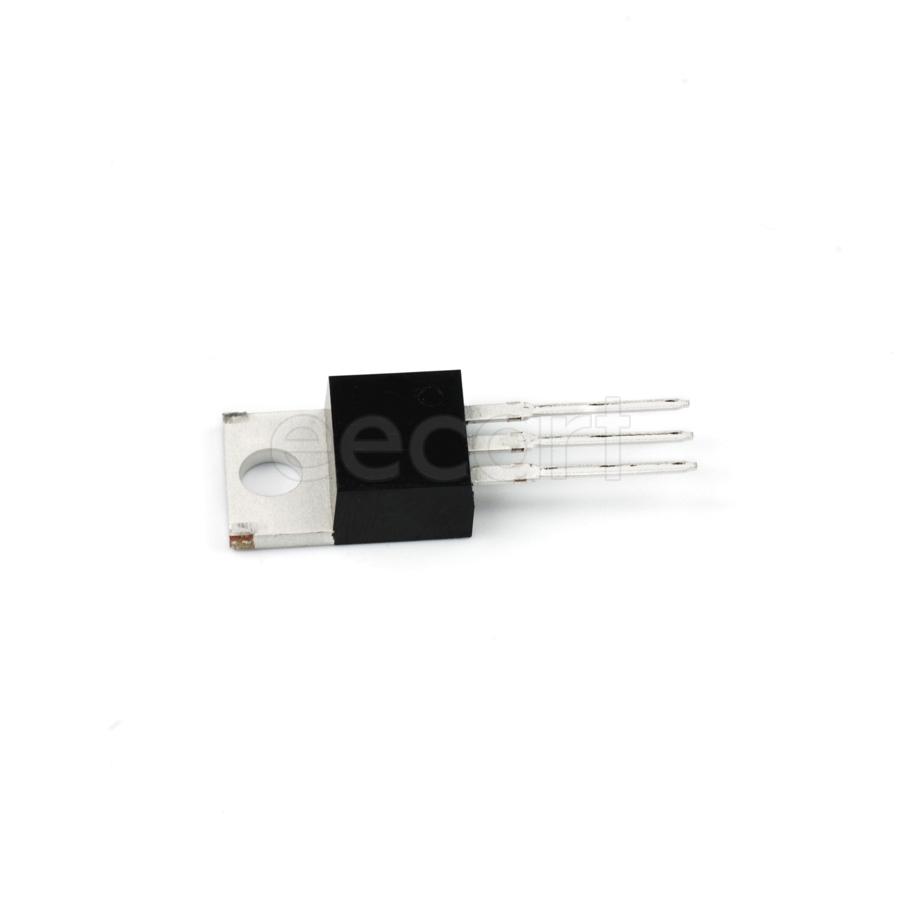

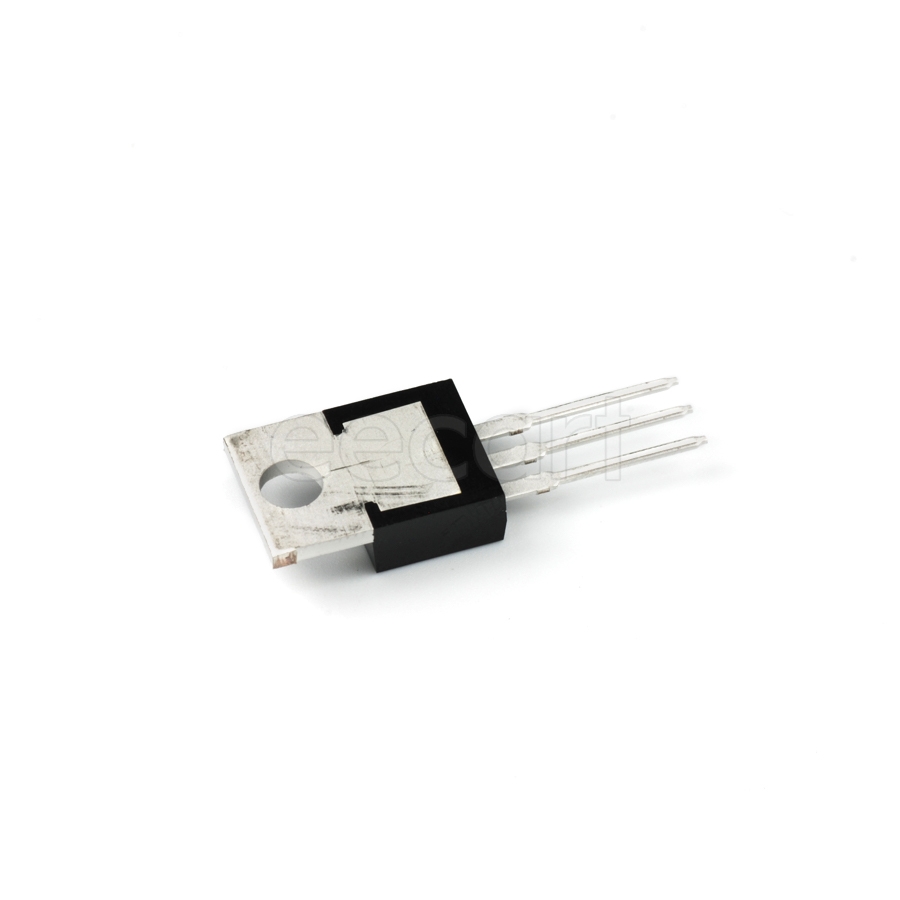

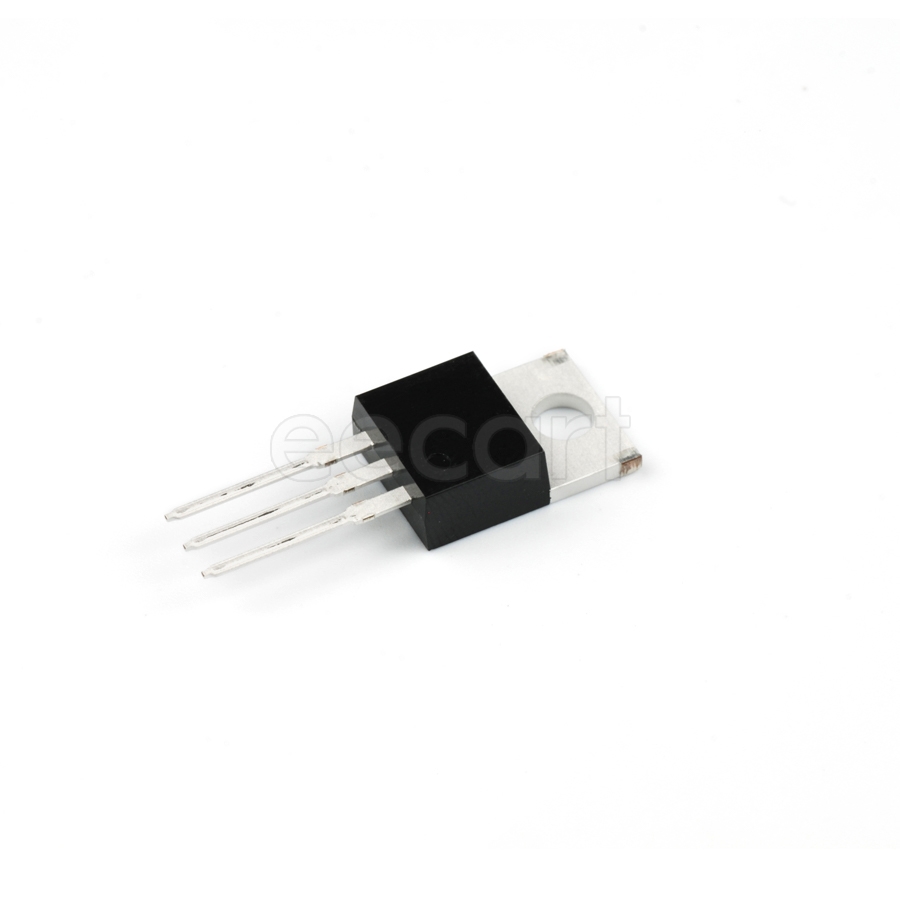

D44H11
Manufacturer:
STMicroelectronics
Mfr.Part #:
D44H11
Datasheet:
Description:
BJTs TO-220C Through Hole NPN 50 W Collector Base Voltage (VCBO):80 V Collector Emitter Voltage (VCEO):80 V Emitter Base Voltage (VEBO):5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 80 V |
| Length | 10.4 mm |
| Width | 4.6 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Height | 9.15 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | NPN |
| REACH SVHC | No SVHC |
| Weight | 9.071847 g |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Current Rating | 10 A |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Power Dissipation | 50 W |
| Power Dissipation | 50 W |
| Max Collector Current | 10 A |
| Collector Emitter Breakdown Voltage | 80 V |
| Element Configuration | Single |
| Collector Emitter Voltage (VCEO) | 80 V |
| Collector Base Voltage (VCBO) | 80 V |
| Collector Emitter Saturation Voltage | 1 V |
| Emitter Base Voltage (VEBO) | 5 V |
| hFE Min | 60 |
| Schedule B | 8541290080 |
| Max Cutoff Collector Current | 10 µA |
| Transistor Type | NPN |
Stock: 7350
Distributors
pcbx
pcbxUnit Price$0.46800
Ext.Price$0.46800
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46800 | $0.46800 |
| 10 | $0.36355 | $3.63550 |
| 25 | $0.32771 | $8.19275 |
| 50 | $0.29540 | $14.77000 |
| 100 | $0.26627 | $26.62700 |
| 300 | $0.25375 | $76.12500 |
| 500 | $0.24182 | $120.91000 |
| 1000 | $0.22650 | $226.50000 |
