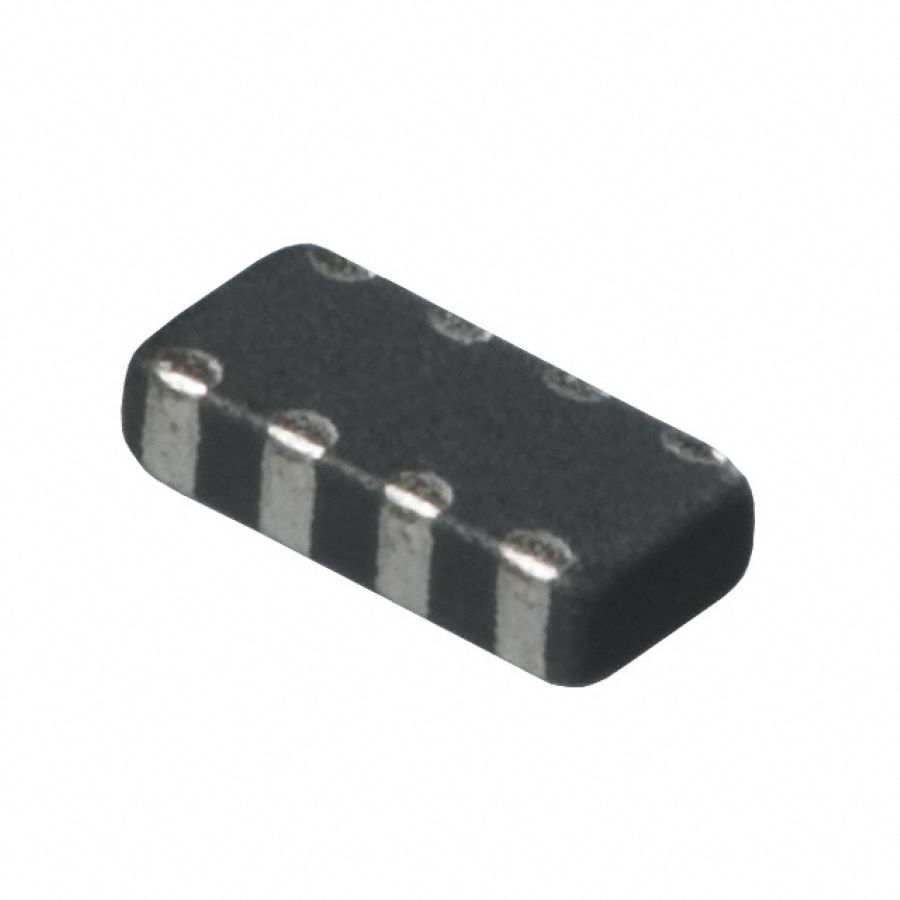

DA1206B102R-10
Manufacturer:
Laird
Mfr.Part #:
DA1206B102R-10
Datasheet:
Description:
Ferrite Beads and Chips 1206(3216 Metric) SMD/SMT 1 kΩ 200 mA
| Parameter | Value |
|---|---|
| Length | 3.2 mm |
| Width | 1.6002 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Number of Pins | 1206 |
| Height | 990.6 µm |
| Packaging | Reel |
| Depth | 1.8 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 269.88746 mg |
| Contact Plating | Tin |
| Impedance | 1 kΩ |
| Frequency | 100 MHz |
| DC Resistance (DCR) | 800 mΩ |
| Max Current Rating | 200 mA |
| Test Frequency | 100 MHz |
| Number of Circuits | 4 |
| Lifecycle Status | Production (Last Updated: 4 months ago) |
| Number of Lines | 4 |
| Core Material | Ferrite |
| Max DC Current | 200 mA |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 months ago) |
Stock: 7668
Distributors
pcbx
pcbxUnit Price$1.25162
Ext.Price$1.25162
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.25162 | $1.25162 |
| 10 | $0.86946 | $8.69460 |
| 25 | $0.74464 | $18.61600 |
| 50 | $0.65744 | $32.87200 |
| 100 | $0.57280 | $57.28000 |
| 300 | $0.55323 | $165.96900 |
| 500 | $0.53433 | $267.16500 |
| 1000 | $0.53347 | $533.47000 |
| 3000 | $0.43687 | $1310.61000 |
