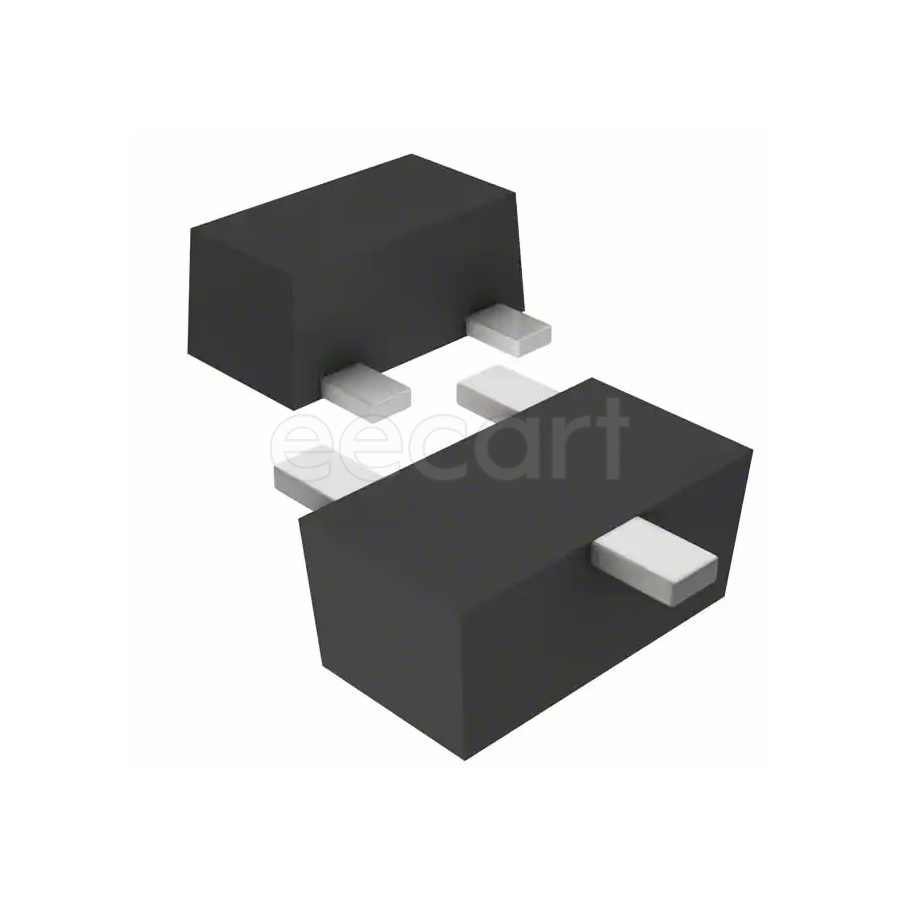

DA3S103E0L
Manufacturer:
Panasonic
Mfr.Part #:
DA3S103E0L
Datasheet:
Description:
Rectifier Diodes SC-89 SMD/SMT Standard Common Cathode Forward Current:100 mA Forward Voltage:1.2 V Reverse Voltage:80 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 850 µm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Height | 700 µm |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Type | Standard |
| Forward Current | 100 mA |
| Forward Voltage | 1.2 V |
| Reverse Recovery Time | 10 ns |
| Average Rectified Current | 100 mA |
| Max Reverse Leakage Current | 100 nA |
| Max Repetitive Reverse Voltage (Vrrm) | 80 V |
| Element Configuration | Common Cathode |
| Forward Surge Current (Ifsm) | 750 mA |
| Reverse Voltage | 80 V |
| Peak Non-Repetitive Surge Current | 750 mA |
| Reverse Current | 100 nA |
| Recovery Time | 10 ns |
