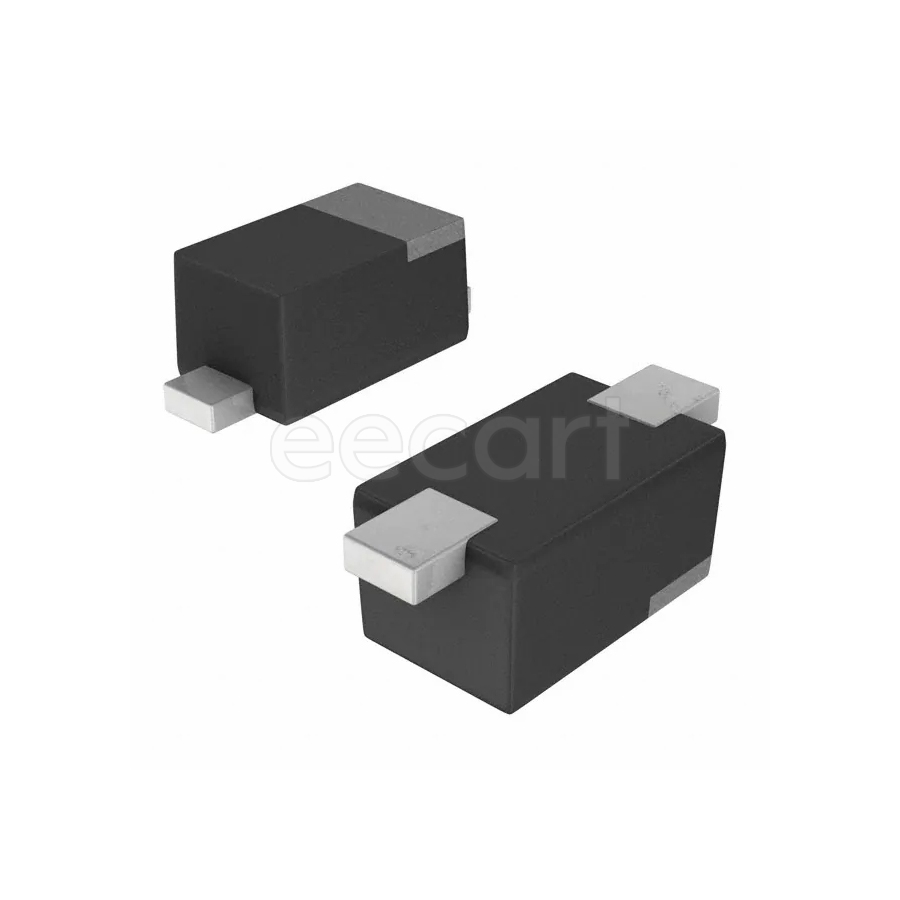

DB2141200L
Manufacturer:
Panasonic
Mfr.Part #:
DB2141200L
Datasheet:
Description:
Rectifier Diodes SMINI2-F4-B-B SMD/SMT Schottky Single Forward Current:1.5 A Forward Voltage:480 mV Reverse Voltage:40 V
| Parameter | Value |
|---|---|
| Length | 1.9 mm |
| Width | 1.25 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 550 µm |
| Packaging | Reel |
| RoHS | Compliant |
| Forward Current | 1.5 A |
| Reverse Recovery Time | 12 ns |
| Average Rectified Current | 1.5 A |
| Max Reverse Leakage Current | 25 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 40 V |
| Element Configuration | Single |
| Max Surge Current | 30 A |
| Forward Surge Current (Ifsm) | 30 A |
| Peak Non-Repetitive Surge Current | 30 A |
| Reverse Current | 25 µA |
| Recovery Time | 12 ns |
| Forward Voltage | 480 mV |
| Capacitance | 43 pF |
| Reverse Voltage | 40 V |
| Type | Schottky |
