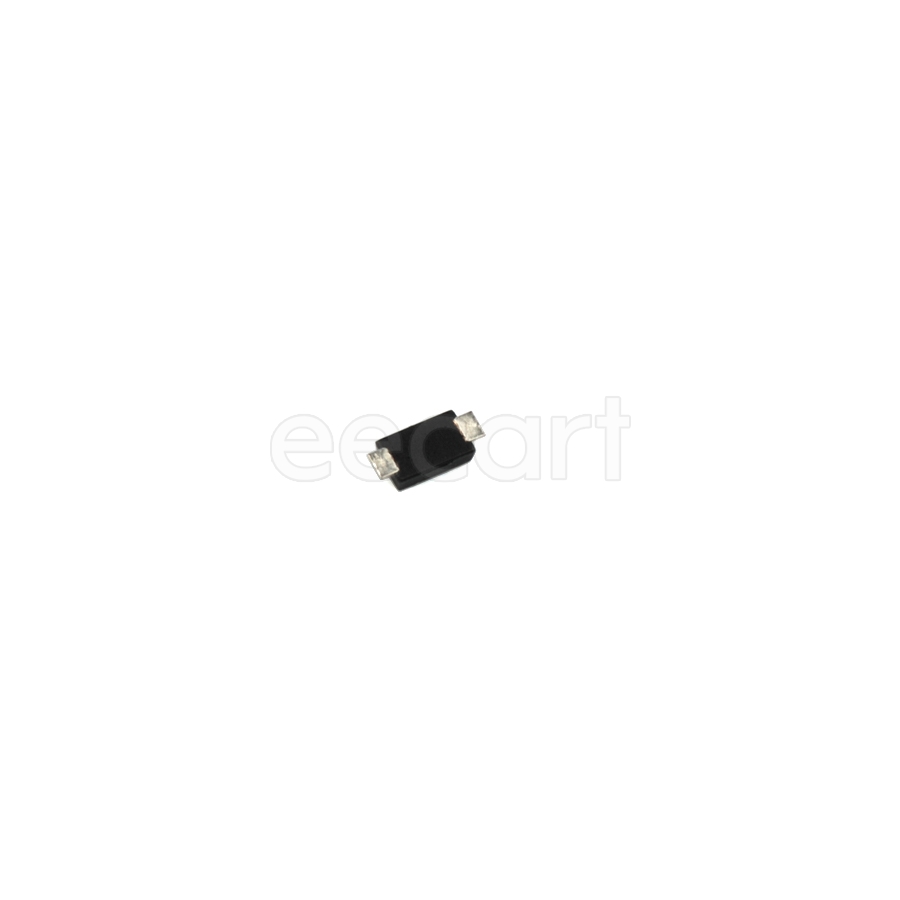

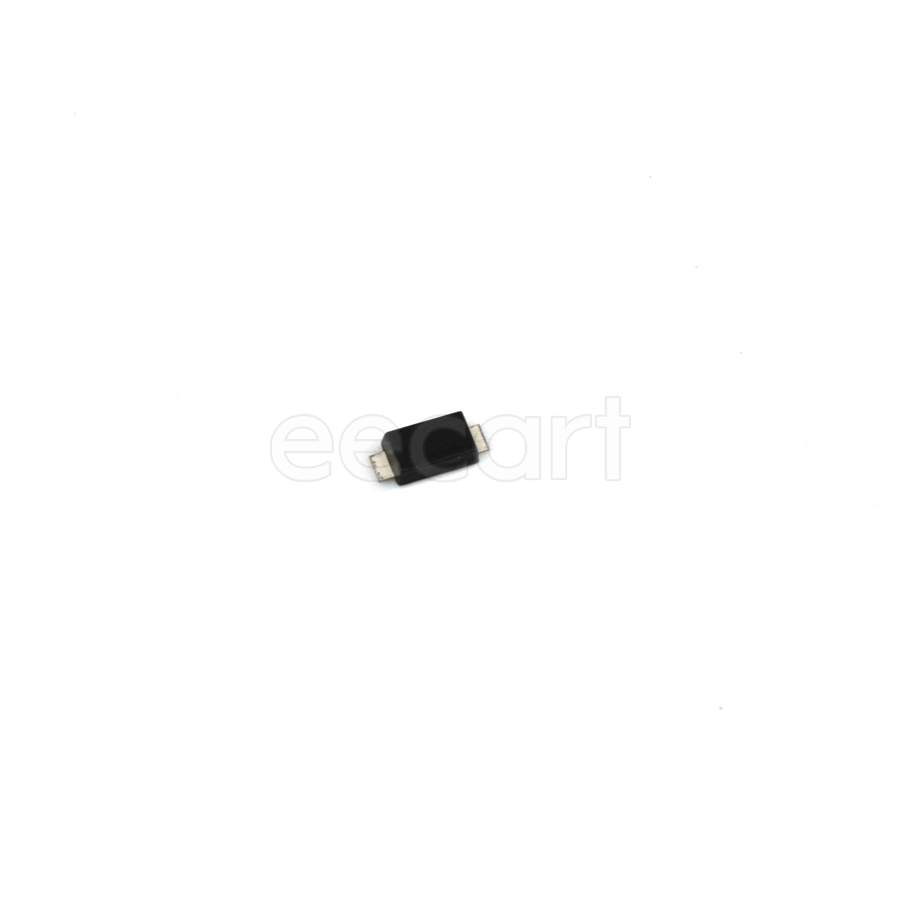

DB2W31900L
Manufacturer:
Panasonic
Mfr.Part #:
DB2W31900L
Datasheet:
Description:
Rectifier Diodes Mini2-F3-B SMD/SMT Schottky Single Forward Current:3 A Forward Voltage:490 mV Reverse Voltage:30 V
| Parameter | Value |
|---|---|
| Length | 2.6 mm |
| Width | 1.6 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 700 µm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Forward Current | 3 A |
| Forward Voltage | 490 mV |
| Reverse Recovery Time | 23 ns |
| Average Rectified Current | 3 A |
| Max Repetitive Reverse Voltage (Vrrm) | 30 V |
| Element Configuration | Single |
| Forward Surge Current (Ifsm) | 30 A |
| Peak Non-Repetitive Surge Current | 30 A |
| Reverse Current | 200 µA |
| Capacitance | 70 pF |
| Reverse Voltage | 30 V |
| Recovery Time | 23 ns |
| Type | Schottky |
