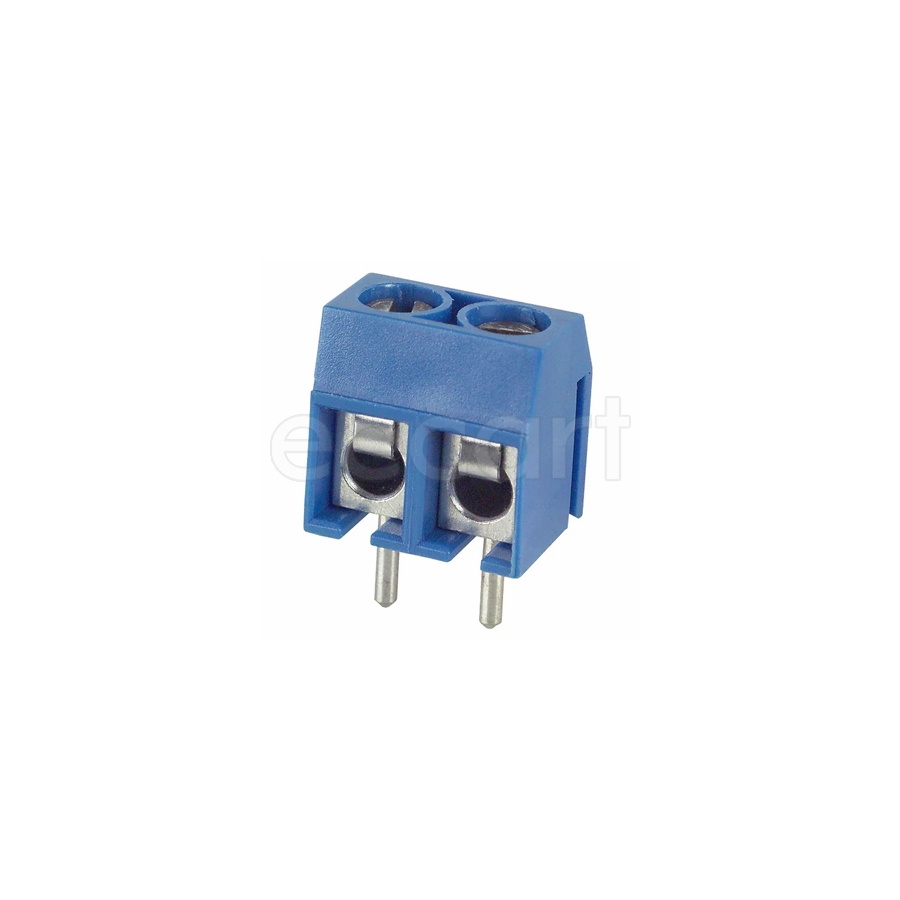

DB301V-5.0-2P-BU-S
Manufacturer:
DORABO
Mfr.Part #:
DB301V-5.0-2P-BU-S
Datasheet:
Description:
Terminal Blocks Through Hole 2 5 mm 16 A 250 V 22 AWG to 14 AWG
| Parameter | Value |
|---|---|
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Pitch | 5 mm |
| Current Rating | 16 A |
| Orientation | Horizontal with Board |
| Color | Blue |
| Wire/Cable Gauge | 14 AWG to 22 AWG |
| Thread Size | M2.5 |
| Number of Positions | 2 |
| Number of Positions Per Level | 2 |
| Number of Levels | 1 |
| Connection Method | Screw |
| Wire Gauge Range | 22 AWG to 14 AWG |
| Voltage Rating (IEC) | 250 V |
| Current Rating (IEC) | 17.5 A |
Stock: 2348
Distributors
pcbx
pcbxUnit Price$0.10368
Ext.Price$0.10368
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10368 | $0.10368 |
| 10 | $0.09306 | $0.93060 |
| 50 | $0.08352 | $4.17600 |
| 100 | $0.07558 | $7.55800 |
| 500 | $0.06839 | $34.19500 |
| 1000 | $0.06189 | $61.89000 |
| 3000 | $0.05744 | $172.32000 |
| 5000 | $0.05331 | $266.55000 |
