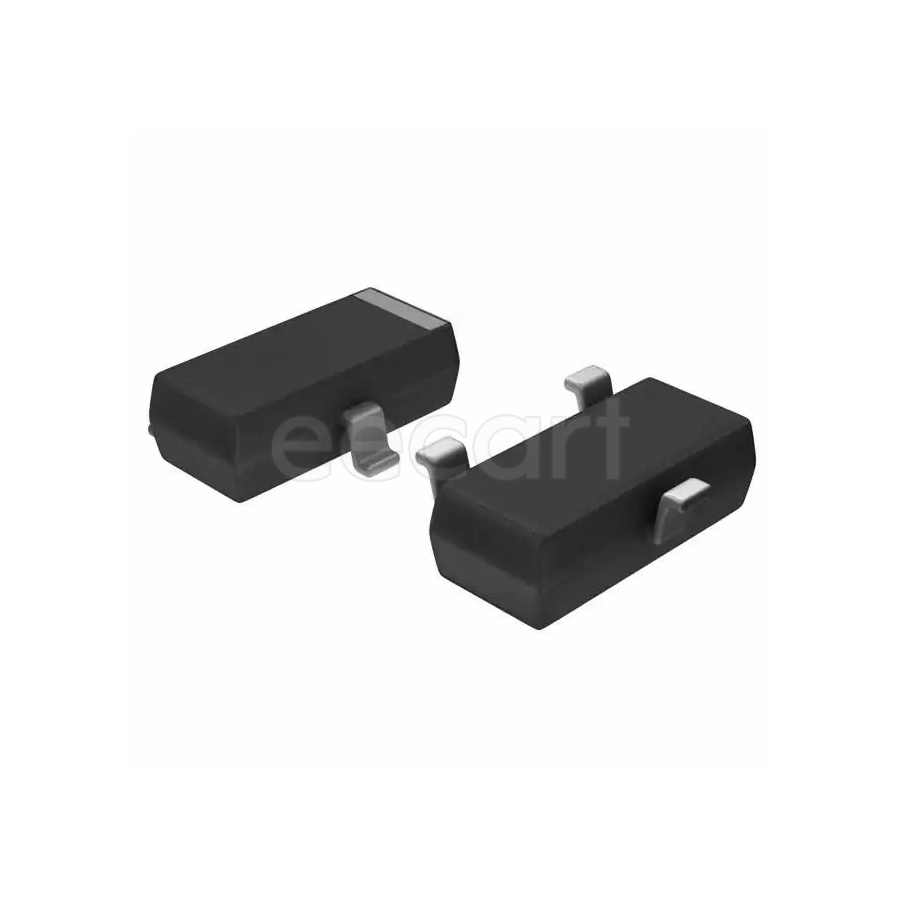

DB3X316F0L
Manufacturer:
Panasonic
Mfr.Part #:
DB3X316F0L
Datasheet:
Description:
Rectifier Diodes Mini3-G3-B SMD/SMT Schottky Single Forward Current:100 mA Forward Voltage:550 mV Reverse Voltage:30 V
| Parameter | Value |
|---|---|
| Length | 2.9 mm |
| Width | 1.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Height | 1.1 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Schottky |
| Forward Current | 100 mA |
| Forward Voltage | 550 mV |
| Reverse Recovery Time | 800 ps |
| Average Rectified Current | 100 mA |
| Max Repetitive Reverse Voltage (Vrrm) | 30 V |
| Element Configuration | Single |
| Forward Surge Current (Ifsm) | 1 A |
| Reverse Voltage | 30 V |
| Peak Non-Repetitive Surge Current | 1 A |
| Reverse Current | 15 µA |
| Recovery Time | 800 ps |
