DB5S308K0R
Manufacturer:
Panasonic
Mfr.Part #:
DB5S308K0R
Datasheet:
Description:

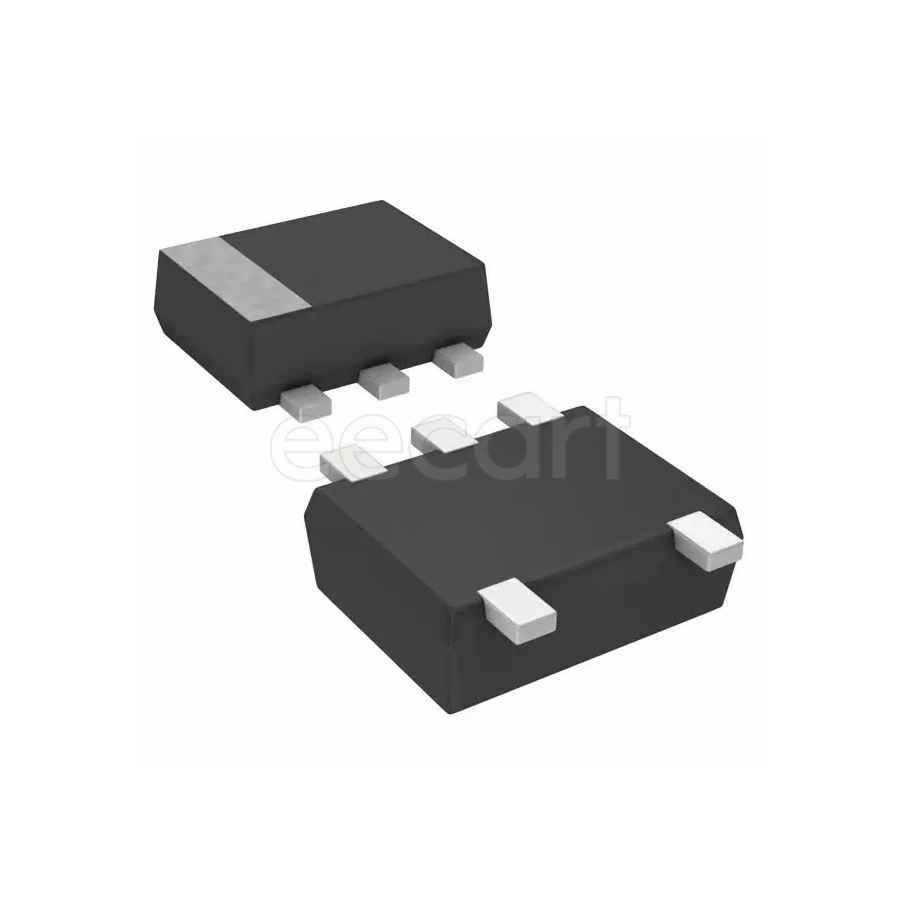

Rectifier Diodes SSMini5-F4-B SMD/SMT Schottky Dual Forward Current:100 mA Forward Voltage:420 mV Reverse Voltage:30 V
| Parameter | Value |
|---|---|
| Length | 1.6 mm |
| Width | 1.2 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 5 |
| Height | 550 µm |
| Forward Current | 100 mA |
| Reverse Recovery Time | 1.3 ns |
| Average Rectified Current | 100 mA |
| Max Reverse Leakage Current | 120 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 30 V |
| Max Surge Current | 1 A |
| Forward Surge Current (Ifsm) | 1 A |
| Reverse Current | 120 µA |
| Recovery Time | 1.3 ns |
| Forward Voltage | 420 mV |
| Reverse Voltage | 30 V |
| Type | Schottky |
| Element Configuration | Dual |
| Packaging | Reel |
| RoHS | Compliant |
