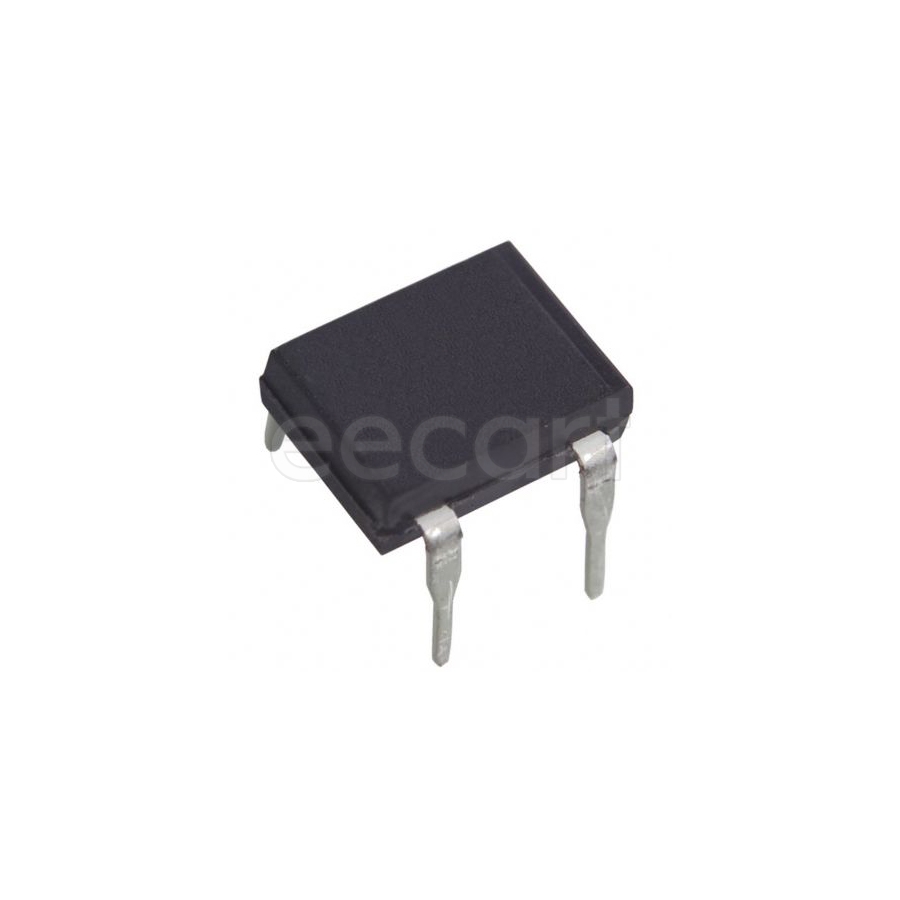

DF10M/45
Manufacturer:
Vishay
Mfr.Part #:
DF10M/45
Datasheet:
Description:
Bridge Rectifiers DFM Through Hole Single Phase Bridge 1 kV Forward Current:1 A Forward Voltage:1.1 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 1 kV |
| Length | 8.51 mm |
| Width | 6.5 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Height | 3.3 mm |
| Packaging | Tube |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| Type | Single Phase Bridge |
| Number of Elements | 1 |
| Current Rating | 1 A |
| Output Current | 1 A |
| Forward Current | 1 A |
| Forward Voltage | 1.1 V |
| Max Reverse Leakage Current | 5 µA |
| Max Surge Current | 50 A |
| Reverse Voltage | 700 V |
| Peak Non-Repetitive Surge Current | 50 A |
| Reverse Current | 5 µA |
| Peak Reverse Voltage | 1 kV |
