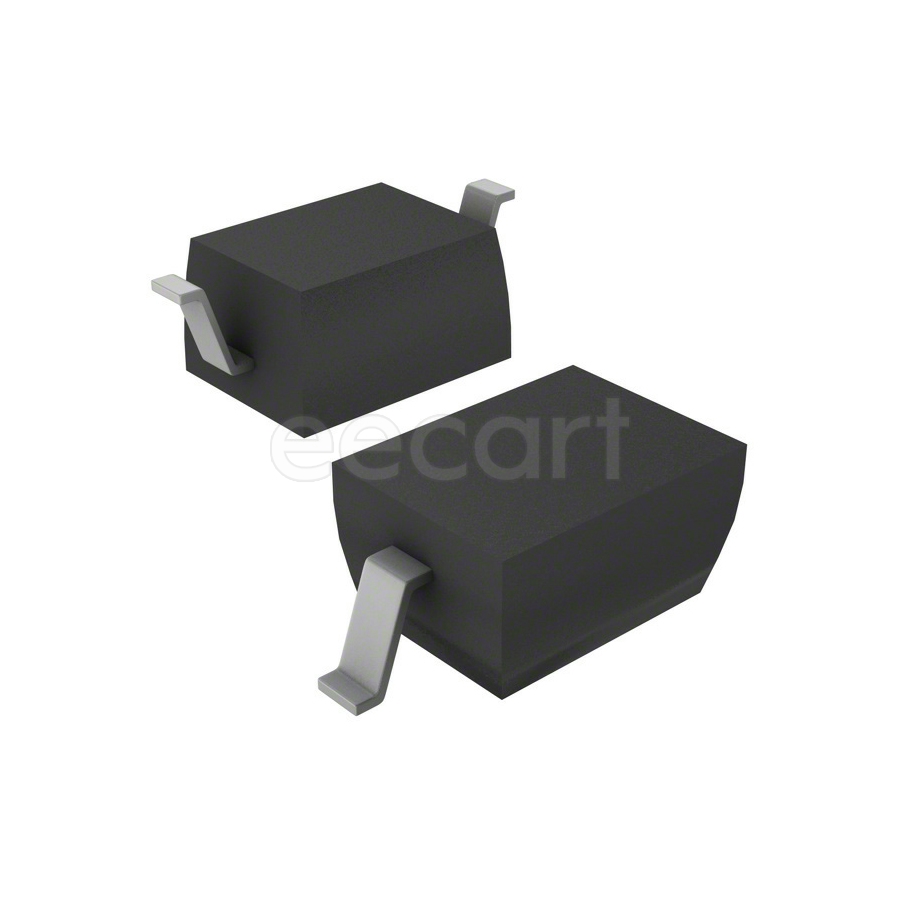

DF2B18FU,H3F
Manufacturer:
Toshiba
Mfr.Part #:
DF2B18FU,H3F
Datasheet:
Description:
TVS Diodes USC SMD/SMT Working Voltage:12 V Breakdown Voltage:16.2 V Clamping Voltage:33 V Peak Pulse Power:80 W Polarity:Bidirectional
| Parameter | Value |
|---|---|
| Capacitance | 9 pF |
| Max Operating Temperature | 150 °C |
| Height | 1.15 mm |
| RoHS | Compliant |
| Peak Pulse Current | 2.5 A |
| Number of Channels | 1 |
| Breakdown Voltage | 16.2 V |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 16.2 V |
| Reverse Standoff Voltage | 12 V |
| Clamping Voltage | 33 V |
| Power Line Protection | No |
| Number of Bidirectional Channels | 1 |
| Max Junction Temperature (Tj) | 150 °C |
| Schedule B | 8536300000 |
| Min Operating Temperature | -55 °C |
| Peak Pulse Power | 80 W |
| Polarity | Bidirectional |
| Packaging | Reel |
| Working Voltage | 12 V |
| Voltage ESD Contact | 30 kV |
| Voltage ESD Air Gap | 30 kV |
| Diode Capacitance | 10 pF |
Stock: 40
Distributors
pcbx
pcbxUnit Price$0.16248
Ext.Price$0.16248
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16248 | $0.16248 |
| 10 | $0.16066 | $1.60660 |
| 50 | $0.15887 | $7.94350 |
| 100 | $0.15646 | $15.64600 |
