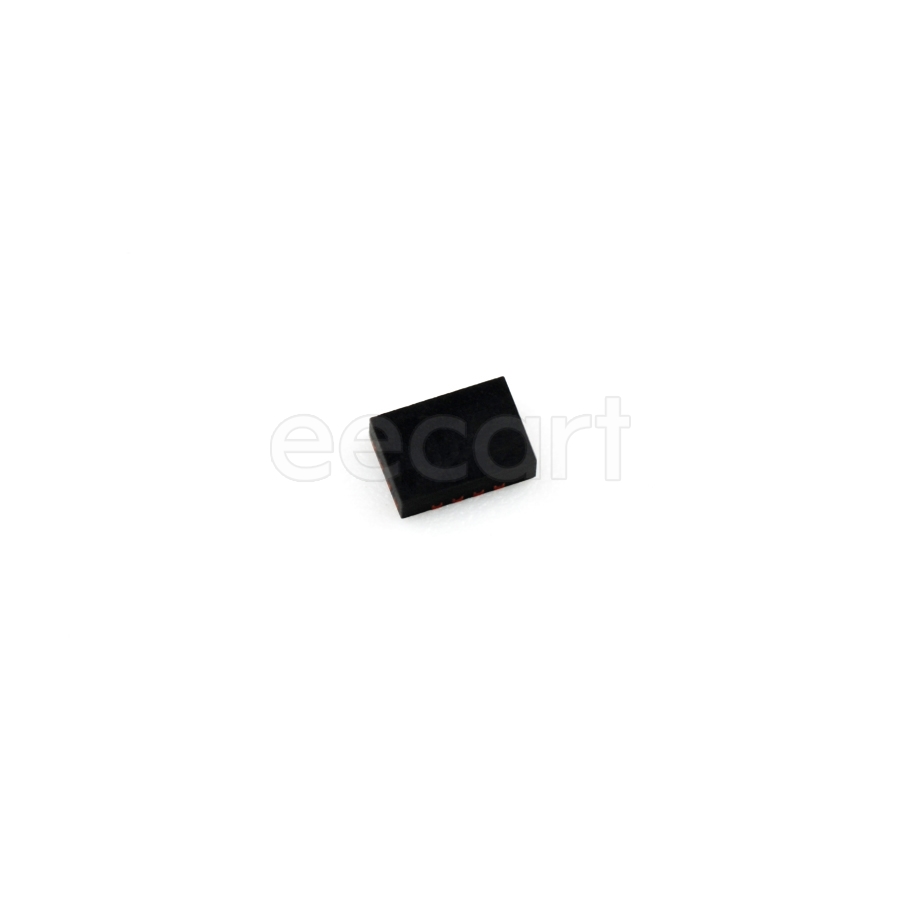

DG611AEN-T1-E4
Manufacturer:
Vishay
Mfr.Part #:
DG611AEN-T1-E4
Datasheet:
Description:
Analogue Switch ICs QFN-16 SMD/SMT Number of Channels:4 115 Ω 55 ns 35 ns
| Parameter | Value |
|---|---|
| Length | 2.6 mm |
| Width | 1.8 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Resistance | 72 Ω |
| Height | 750 µm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Type | Analogue Switch IC |
| Interface | |
| Output Current | |
| Operating Supply Voltage | 4 V to 21 V |
| Output Type | |
| Max Power Dissipation | 525 mW |
| Max Supply Voltage | 12 V |
| Min Supply Voltage | 2.7 V |
| Power Dissipation | 525 mW |
| Number of Channels | 4 |
| Turn-On Delay Time | 55 ns |
| Turn-Off Delay Time | 35 ns |
| Operating Supply Current | 1 µA |
| Max Supply Current | 100 µA |
| Number of Inputs | 4 |
| Supply Type | Dual, Single |
| Throw Configuration | SPST |
| Number of Outputs | 4 |
| Max Dual Supply Voltage | 5 V |
| Min Dual Supply Voltage | 2.7 V |
| Fault Protection | |
| On Resistance (RON) | 115 Ω |
| Current Limit | |
| Configuration | 4 x SPST |
