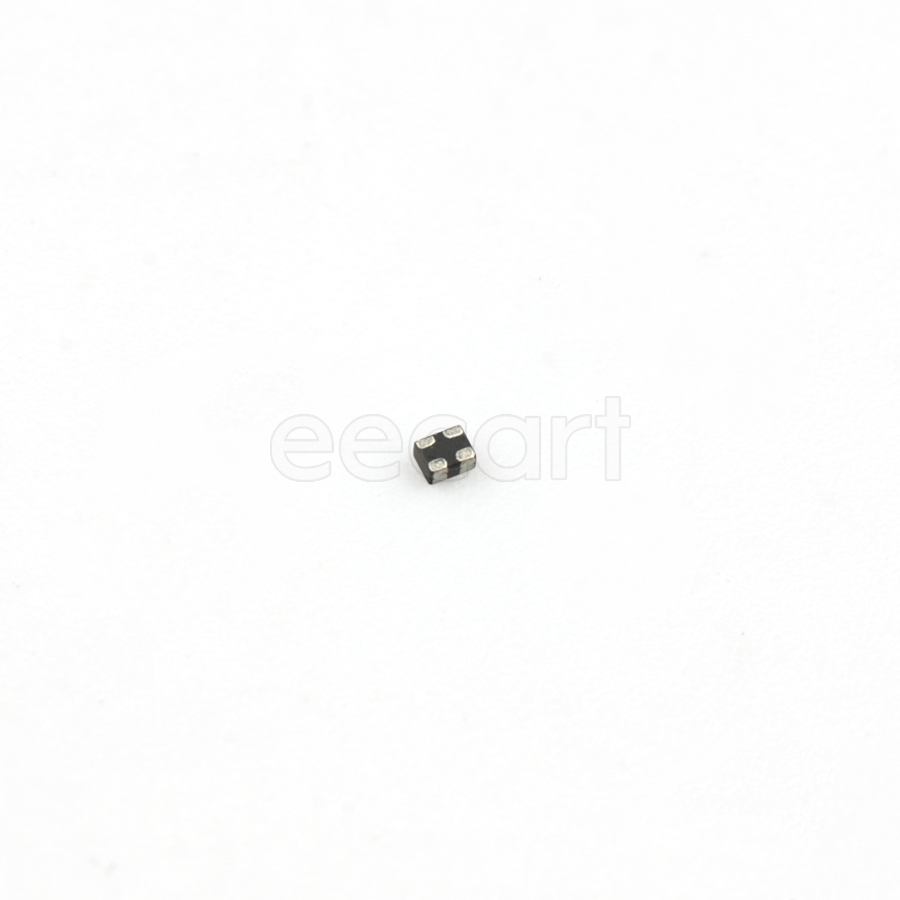

DLM11GN601SD2D
Manufacturer:
Murata
Mfr.Part #:
DLM11GN601SD2D
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:100 mA Number of Lines:2 600 Ω 800 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 25 % |
| Length | 1.25 mm |
| Width | 1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 600 Ω |
| Height | 500 µm |
| Voltage Rating | 5 V |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Impedance | 600 Ω |
| Type | Signal Line |
| Current Rating | 100 mA |
| DC Resistance (DCR) | 800 mΩ |
| Test Frequency | 100 MHz |
| Lifecycle Status | NRND (Last Updated: 5 days ago) |
| RMS Current (Irms) | 100 mA |
| Max DC Current | 100 mA |
| Series Resistance | 800 mΩ |
| Schedule B | 8504500000 |
| Number of Lines | 2 |
| Voltage Rating (DC) | 5 V |
| Max Current Rating | 100 mA |
| Packaging | Reel |
