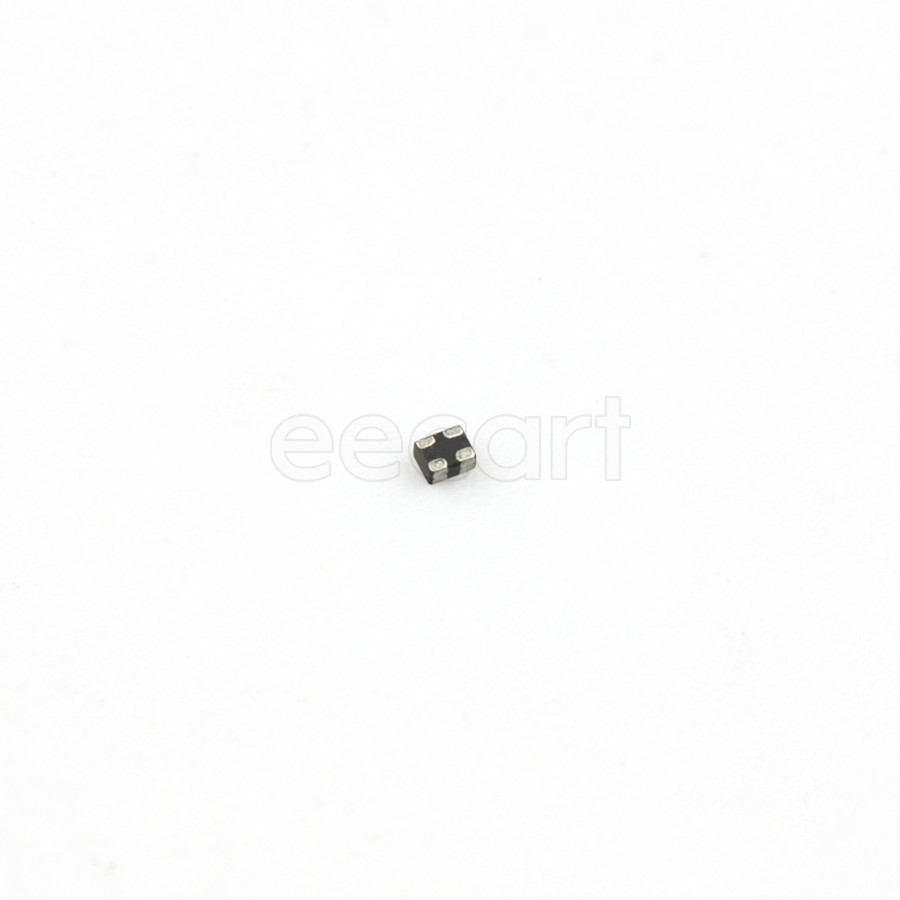

DLP0NSN900HL2L
Manufacturer:
Murata
Mfr.Part #:
DLP0NSN900HL2L
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:100 mA Number of Lines:2 90 Ω 3 Ω
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 5 V |
| Tolerance | 20 % |
| Length | 850 µm |
| Width | 650 µm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0302 |
| Case Code (Metric) | 0806 |
| Height | 450 µm |
| Packaging | Reel |
| Depth | 700 µm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Impedance | 90 Ω |
| Self Resonant Frequency | 100 MHz |
| Type | Signal Line |
| Current | 100 mA |
| DC Resistance (DCR) | 3 Ω |
| Max Current Rating | 100 mA |
| Test Frequency | 100 MHz |
| Lifecycle Status | EOL (Last Updated: 1 month ago) |
| Number of Lines | 2 |
| RMS Current (Irms) | 100 mA |
| Max DC Current | 100 mA |
| Series Resistance | 3.75 Ω |
| DC Current | 100 mA |
| Schedule B | 8504500000 |
