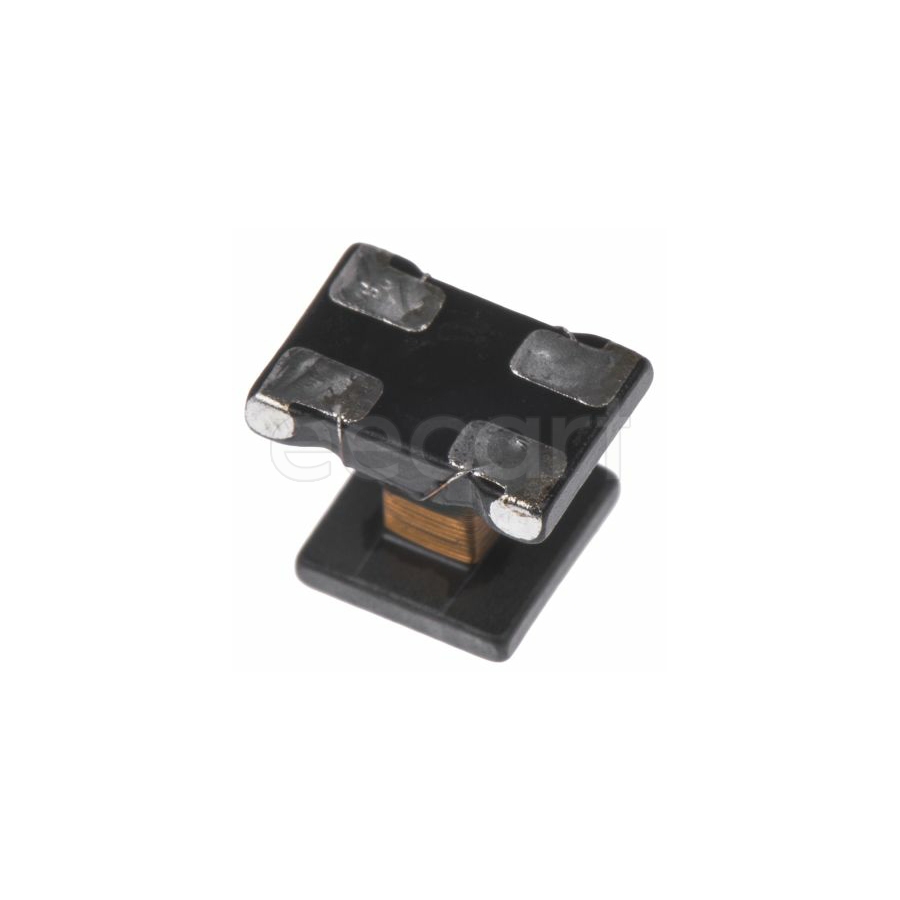

DLW5AHN402SQ2L
Manufacturer:
Murata
Mfr.Part #:
DLW5AHN402SQ2L
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:200 mA Number of Lines:2 4 kΩ 3 Ω
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Length | 5 mm |
| Width | 3.6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Case Code (Imperial) | 2014 |
| Composition(Kit Type) | Wirewound |
| Height | 4.3 mm |
| Voltage Rating | 50 V |
| Depth | 3.9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 0.15 g |
| Impedance | 4 kΩ |
| Self Resonant Frequency | 100 MHz |
| Type | Power, Signal Line |
| Current | 200 mA |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 3 Ω |
| Max Current Rating | 200 mA |
| Test Frequency | 100 MHz |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 5 days ago) |
| Shielding | Unshielded |
| Number of Lines | 2 |
| Core Material | Ferrite |
| RMS Current (Irms) | 200 mA |
| Max DC Current | 200 mA |
| Series Resistance | 3 Ω |
| DC Current | 200 mA |
| Schedule B | 8504500000 |
| Packaging | Reel |
Stock: 14
Distributors
pcbx
pcbxUnit Price$1.79023
Ext.Price$1.79023
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.79023 | $1.79023 |
| 10 | $1.47732 | $14.77320 |
| 25 | $1.21400 | $30.35000 |
| 50 | $1.14848 | $57.42400 |
| 100 | $1.08650 | $108.65000 |
| 300 | $1.02786 | $308.35800 |
| 500 | $0.97239 | $486.19500 |
| 1000 | $0.91990 | $919.90000 |
