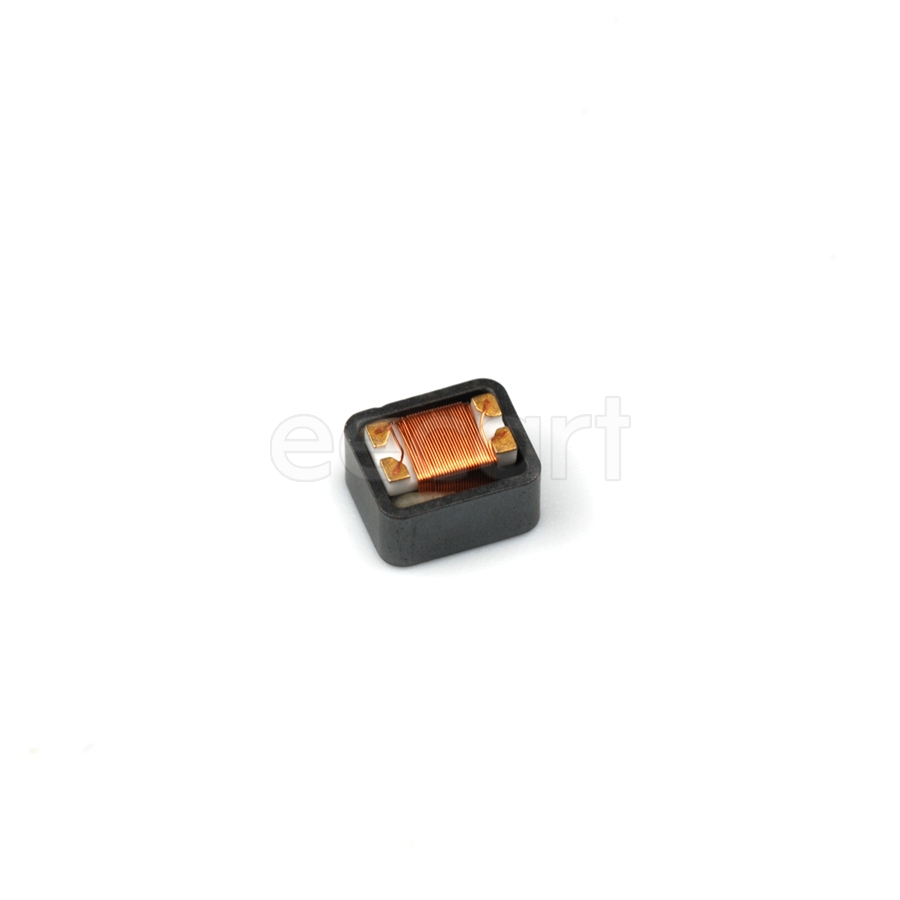

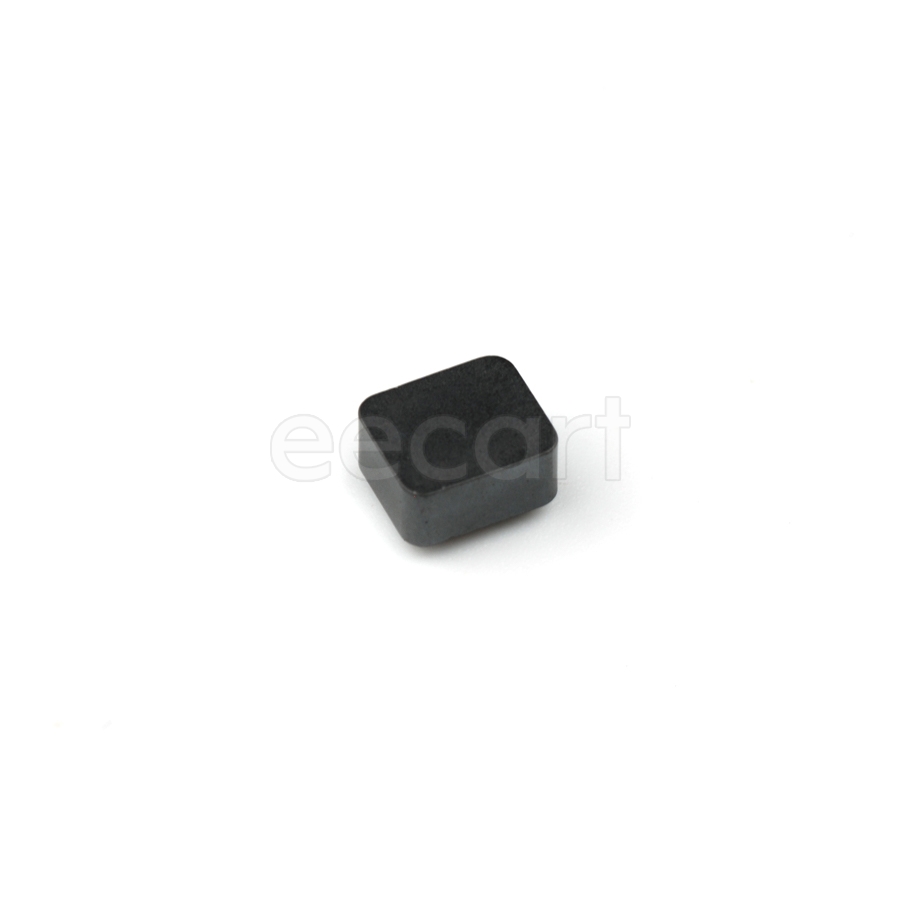

DLW5BTM101SQ2L
Manufacturer:
Murata
Mfr.Part #:
DLW5BTM101SQ2L
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:6 A Number of Lines:2 100 Ω 13 mΩ
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Tolerance | 40 % |
| Length | 5.0038 mm |
| Width | 5.0038 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 100 Ω |
| Composition(Kit Type) | Wirewound |
| Height | 2.4892 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Weight | 0.3 g |
| Impedance | 100 Ω |
| DC Resistance (DCR) | 13 mΩ |
| Max Current Rating | 6 A |
| Test Frequency | 100 MHz |
| Lifecycle Status | Production (Last Updated: 5 days ago) |
| Shielding | Unshielded |
| Number of Lines | 2 |
| Core Material | Ferrite |
| RMS Current (Irms) | 6 A |
| Max DC Current | 6 A |
| Series Resistance | 13 mΩ |
| Schedule B | 8504500000 |
Stock: 701
Distributors
pcbx
pcbxUnit Price$0.68995
Ext.Price$0.68995
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.68995 | $0.68995 |
| 10 | $0.56102 | $5.61020 |
| 25 | $0.51668 | $12.91700 |
| 50 | $0.47585 | $23.79250 |
| 100 | $0.43825 | $43.82500 |
| 300 | $0.39412 | $118.23600 |
| 500 | $0.35443 | $177.21500 |
| 1000 | $0.31874 | $318.74000 |
