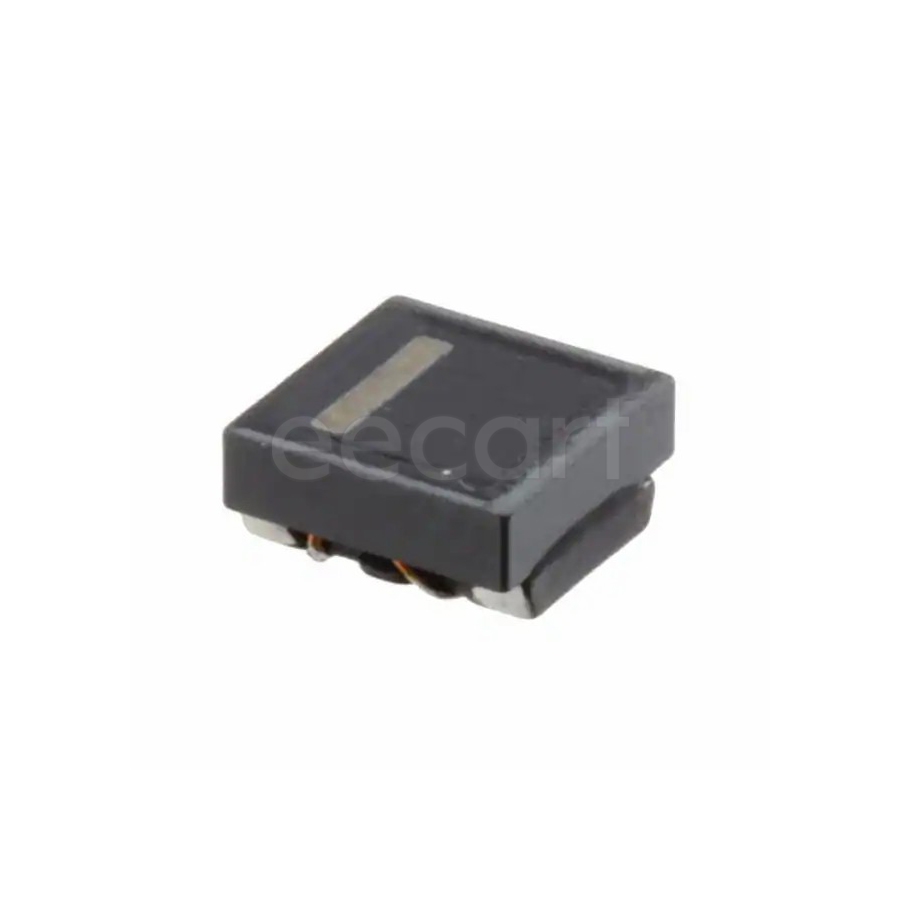

DLW5BTM101TQ2L
Manufacturer:
Murata
Mfr.Part #:
DLW5BTM101TQ2L
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:6 A Number of Lines:2 100 Ω 13 mΩ
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 50 V |
| Tolerance | 40 % |
| Length | 5 mm |
| Width | 5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Resistance | 100 Ω |
| Composition(Kit Type) | Wirewound |
| Height | 2.35 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 1.7 mm |
| Impedance | 100 Ω |
| Type | Power, Signal Line |
| DC Resistance (DCR) | 13 mΩ |
| Max Current Rating | 6 A |
| Test Frequency | 100 MHz |
| Lifecycle Status | Production (Last Updated: 1 month ago) |
| Number of Lines | 2 |
| Core Material | Ferrite |
| RMS Current (Irms) | 6 A |
| Max DC Current | 6 A |
| Series Resistance | 13 mΩ |
Stock: 380
Distributors
pcbx
pcbxUnit Price$0.61594
Ext.Price$0.61594
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.61594 | $0.61594 |
| 10 | $0.49517 | $4.95170 |
| 25 | $0.45329 | $11.33225 |
| 50 | $0.41495 | $20.74750 |
| 100 | $0.37985 | $37.98500 |
| 300 | $0.36059 | $108.17700 |
| 500 | $0.34231 | $171.15500 |
| 1000 | $0.32495 | $324.95000 |
