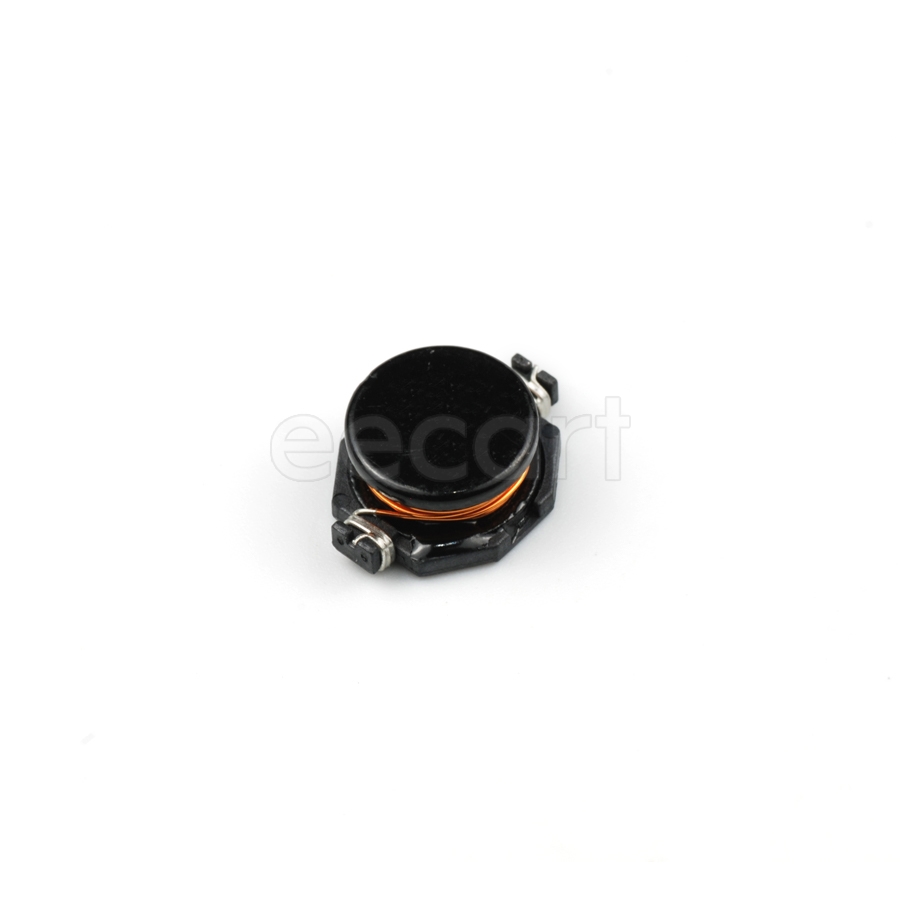

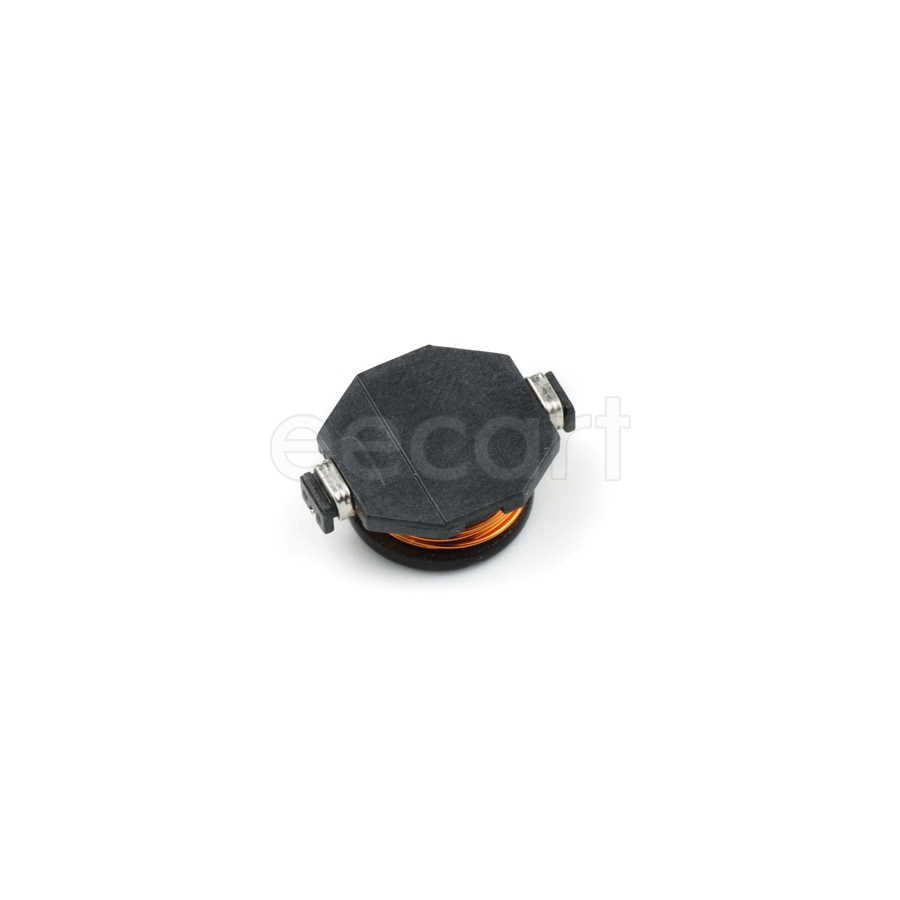

DO1813H-222MLD
Manufacturer:
Coilcraft
Mfr.Part #:
DO1813H-222MLD
Datasheet:
Description:
Fixed Inductors 8.89mmL×6.10mmW×5.00mmH SMD/SMT 2.2 µH 20 % 3.1 A 35 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 5 mm |
| Length | 8.89 mm |
| Width | 6.1 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 5 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 100 MHz |
| DC Resistance (DCR) | 35 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 12 hours ago) |
| Shielding | Unshielded |
| Inductance | 2.2 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 3.1 A |
| inductance tolerance | 20 % |
| Max DC Current | 3.1 A |
| Saturation Current | 3.5 A |
| Current Rating | 3.1 A |
