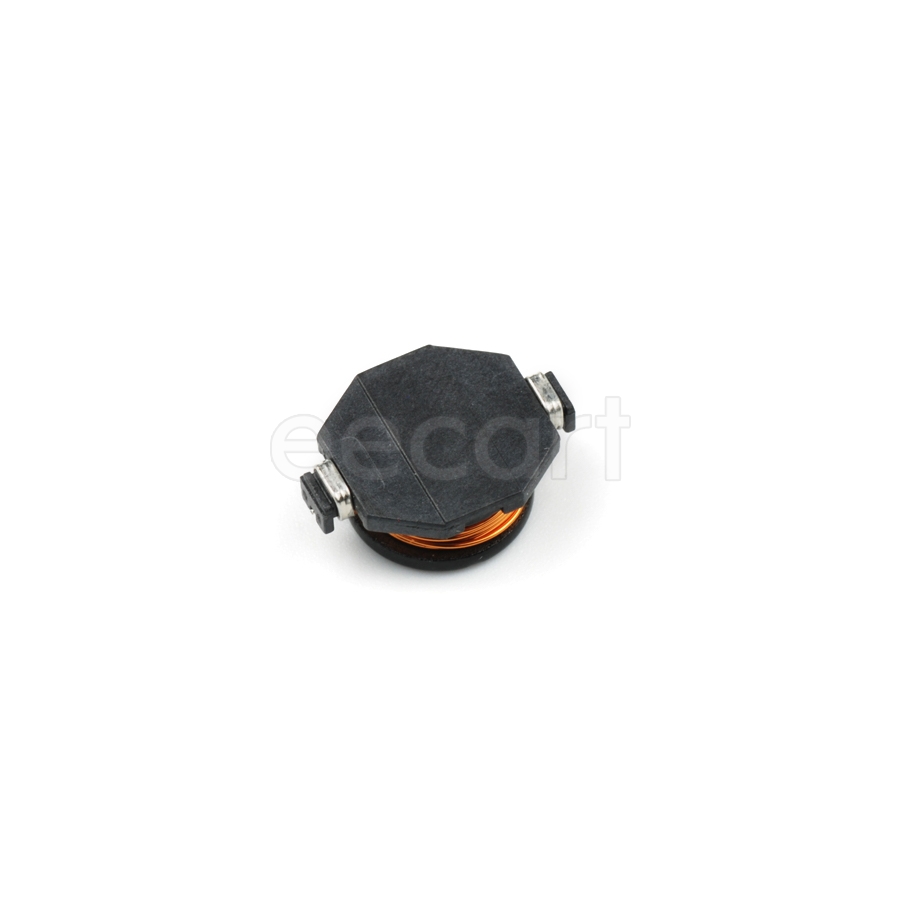

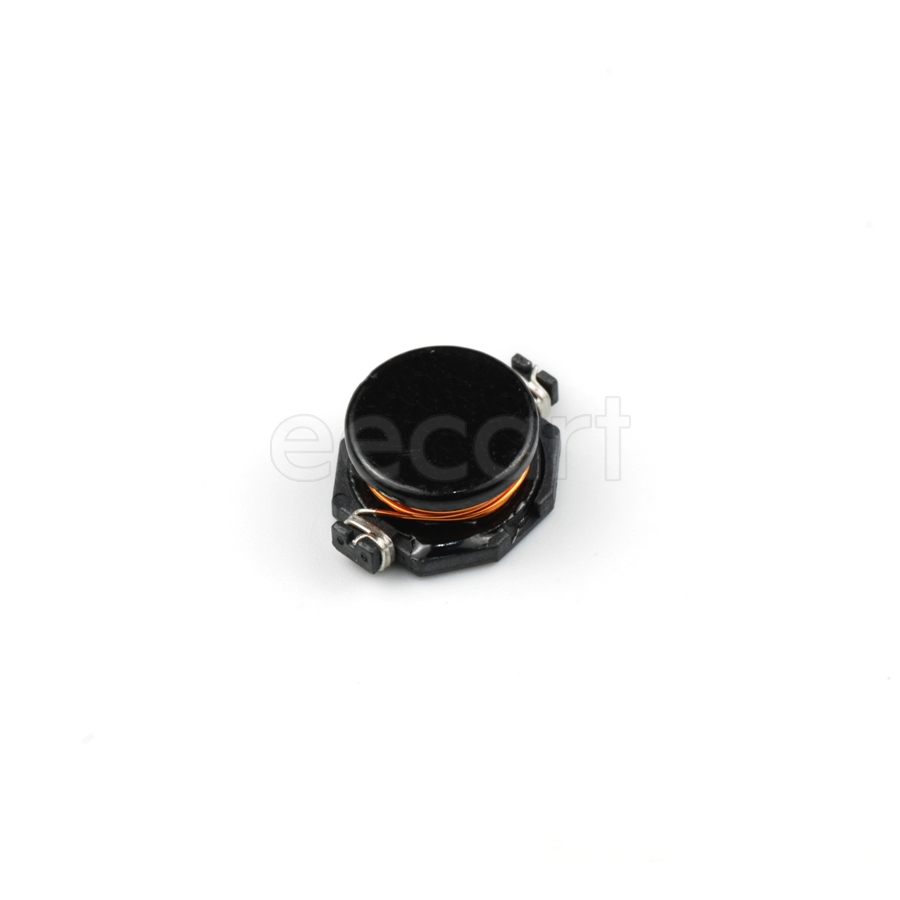

DO3316H-102MLD
Manufacturer:
Coilcraft
Mfr.Part #:
DO3316H-102MLD
Datasheet:
Description:
Fixed Inductors 13.21mmL×9.91mmW×6.35mmH SMD/SMT 1 µH 20 % 10 A 6 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 6.35 mm |
| Length | 13.21 mm |
| Width | 9.91 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 6.35 mm |
| Packaging | Reel |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 100 MHz |
| DC Resistance (DCR) | 6 mΩ |
| Test Frequency | 100 kHz |
| Lifecycle Status | Production (Last Updated: 12 hours ago) |
| Shielding | Unshielded |
| Inductance | 1 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 10 A |
| inductance tolerance | 20 % |
| Max DC Current | 10 A |
| Saturation Current | 11 A |
| Current Rating | 10 A |
