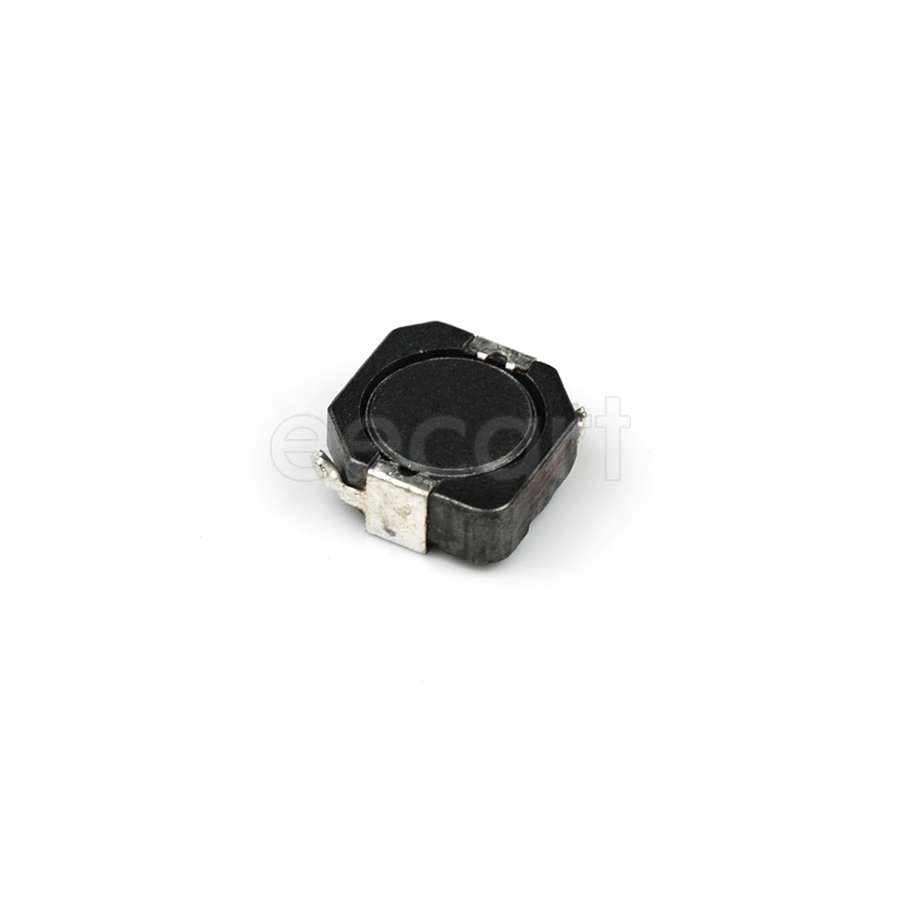

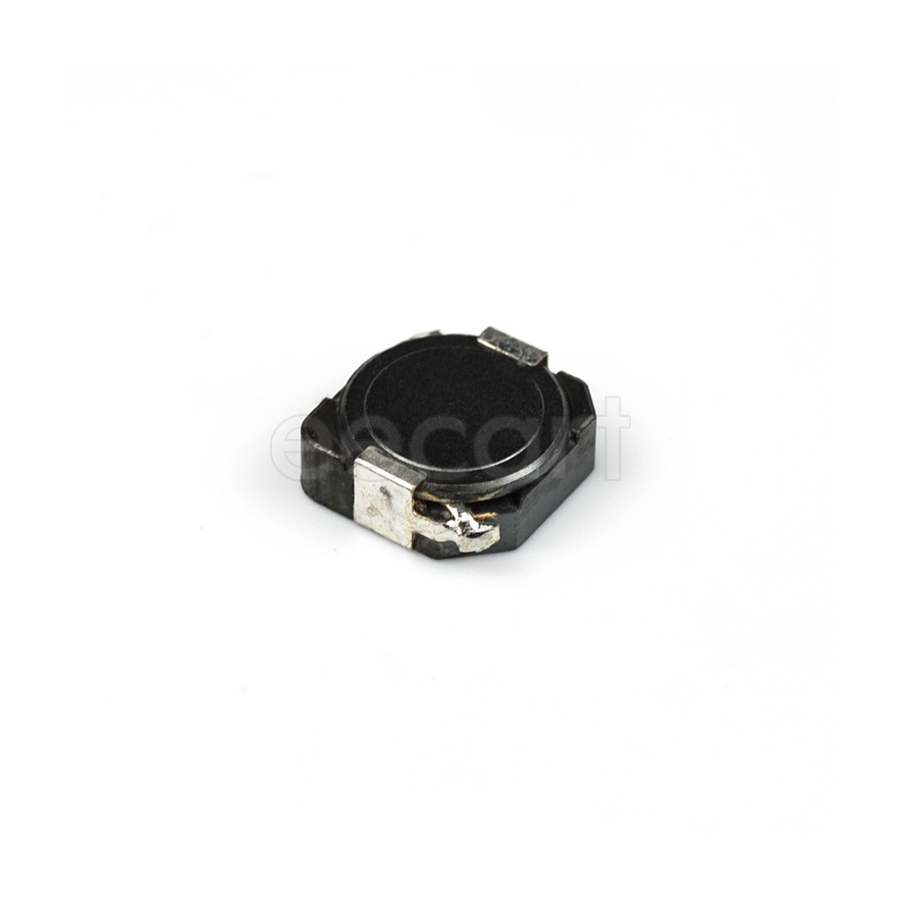

DR1030-6R8-R
Manufacturer:
Eaton
Mfr.Part #:
DR1030-6R8-R
Datasheet:
Description:
Fixed Inductors 10.50mmL×10.30mmW×3.00mmH SMD/SMT 6.8 µH 30 % 3.5 A 30 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 3 mm |
| Length | 10.5 mm |
| Width | 10.287 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 3 mm |
| Packaging | Reel |
| Depth | 10.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 5 g |
| Self Resonant Frequency | 1 MHz |
| Current Rating | 3.5 A |
| DC Resistance (DCR) | 30 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 6.8 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 3.5 A |
| inductance tolerance | 30 % |
| Max DC Current | 3.9 A |
| DC Current | 3.5 A |
| Saturation Current | 3.9 A |
| Type | Wirewound |
Stock: 1065
Distributors
pcbx
pcbxUnit Price$0.45016
Ext.Price$0.45016
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.45016 | $0.45016 |
| 10 | $0.37102 | $3.71020 |
| 25 | $0.34764 | $8.69100 |
| 50 | $0.32574 | $16.28700 |
| 100 | $0.30522 | $30.52200 |
| 300 | $0.29066 | $87.19800 |
| 500 | $0.27679 | $138.39500 |
| 1000 | $0.26358 | $263.58000 |
