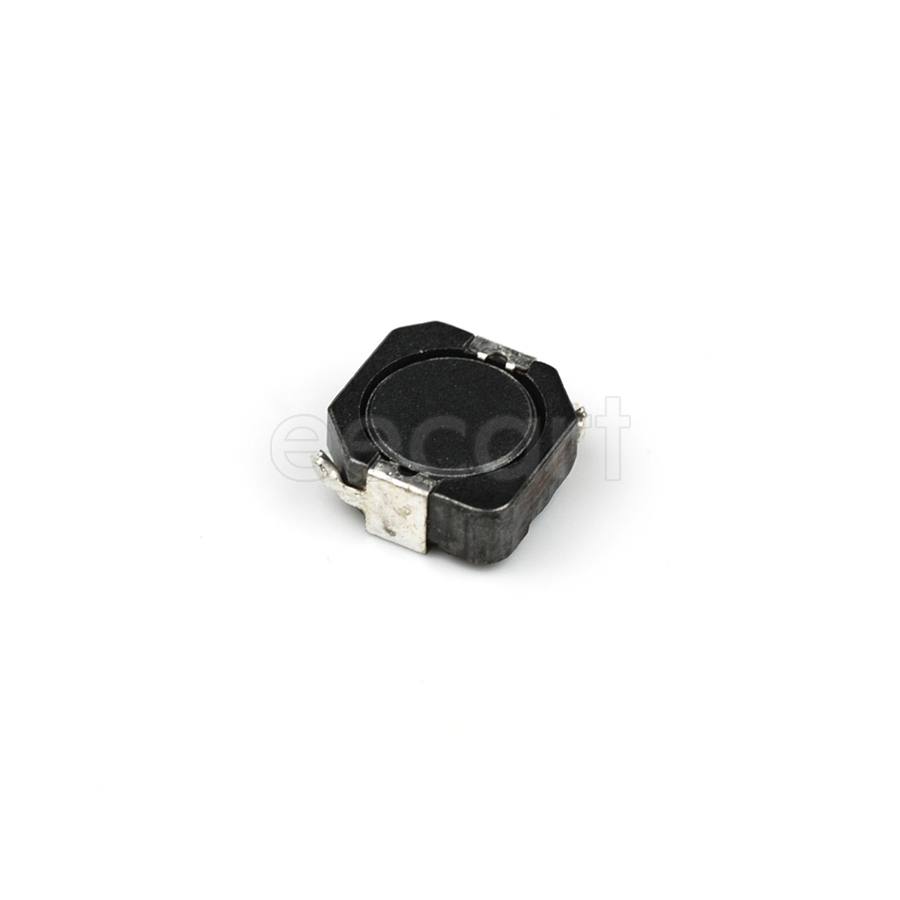

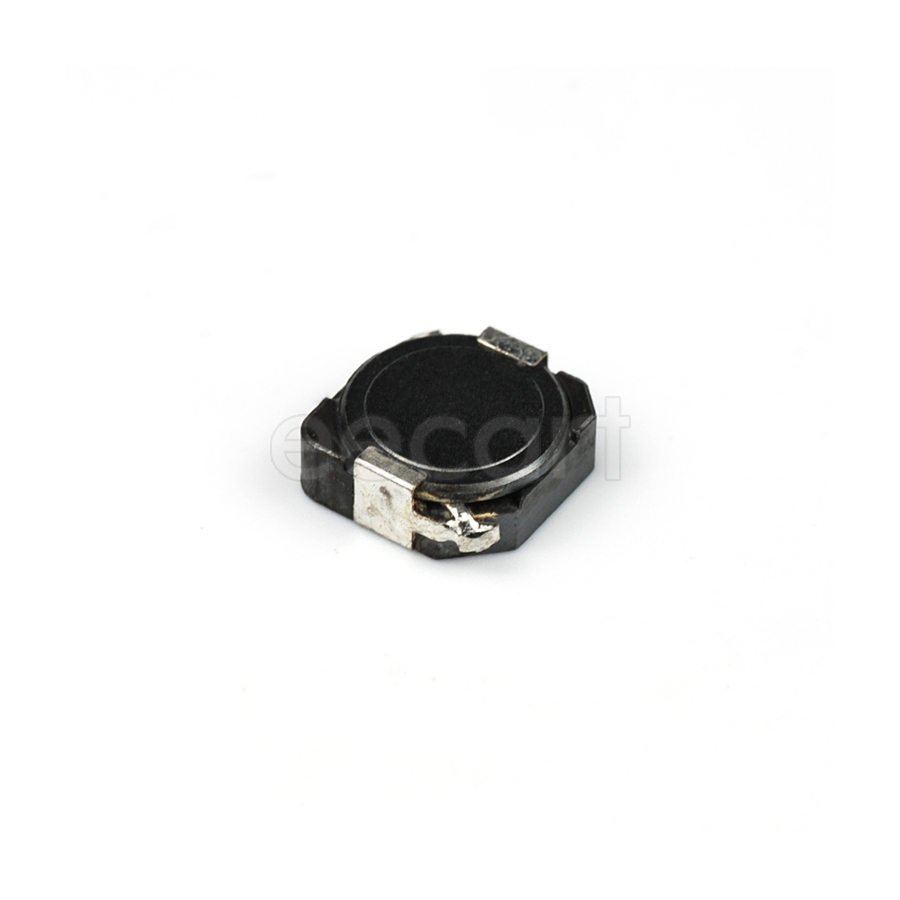

DR1050-220-R
Manufacturer:
Eaton
Mfr.Part #:
DR1050-220-R
Datasheet:
Description:
Fixed Inductors 10.50mmL×10.30mmW×5.00mmH SMD/SMT 22 µH 30 % 3.12 A 48.4 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 30 % |
| Height - Seated (Max) | 5 mm |
| Length | 10.5 mm |
| Width | 10.287 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 5 mm |
| Packaging | Reel |
| Depth | 10.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Weight | 5 g |
| Self Resonant Frequency | 1 MHz |
| Current Rating | 3.12 A |
| DC Resistance (DCR) | 48.4 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 22 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 3.12 A |
| inductance tolerance | 30 % |
| Max DC Current | 3 A |
| DC Current | 3.12 A |
| Saturation Current | 3 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
| RoHS | Compliant |
Stock: 114
Distributors
pcbx
pcbxUnit Price$0.46303
Ext.Price$0.46303
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46303 | $0.46303 |
| 10 | $0.38041 | $3.80410 |
| 25 | $0.35631 | $8.90775 |
| 50 | $0.33374 | $16.68700 |
| 100 | $0.31259 | $31.25900 |
| 300 | $0.29915 | $89.74500 |
| 500 | $0.28628 | $143.14000 |
