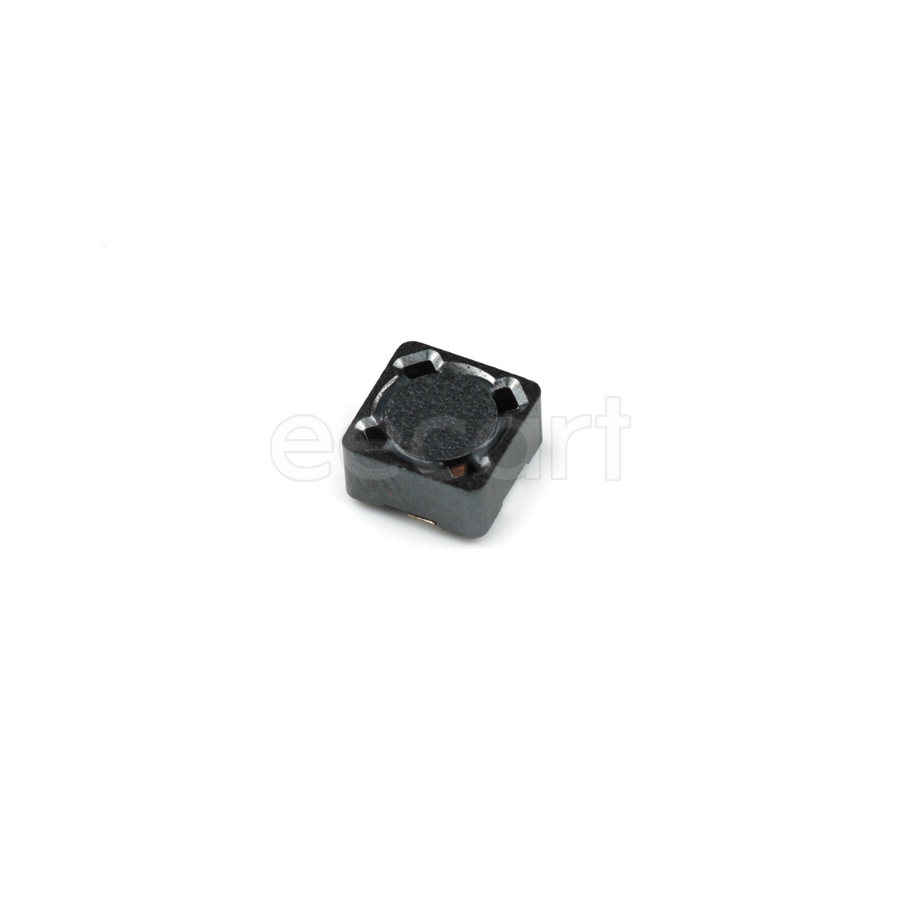

DR125-220-R
Manufacturer:
Eaton
Mfr.Part #:
DR125-220-R
Datasheet:
Description:
Fixed Inductors 12.50mL×12.50mmW×6.00mmH SMD/SMT 22 µH 20 % 3.7 A 39.6 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 6 mm |
| Length | 12.5 mm |
| Width | 12.4968 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 6 mm |
| Packaging | Reel |
| Depth | 12.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Weight | 4.082331 g |
| Self Resonant Frequency | 100 kHz |
| Current Rating | 3.7 A |
| DC Resistance (DCR) | 39.6 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 22 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 3.7 A |
| inductance tolerance | 20 % |
| Max DC Current | 3.7 A |
| DC Current | 3.7 A |
| Saturation Current | 4.71 A |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
| RoHS | Compliant |
Stock: 188
Distributors
pcbx
pcbxUnit Price$0.50085
Ext.Price$0.50085
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.50085 | $0.50085 |
| 10 | $0.41173 | $4.11730 |
| 25 | $0.38578 | $9.64450 |
| 50 | $0.36147 | $18.07350 |
| 100 | $0.33869 | $33.86900 |
| 300 | $0.32164 | $96.49200 |
| 500 | $0.30545 | $152.72500 |
