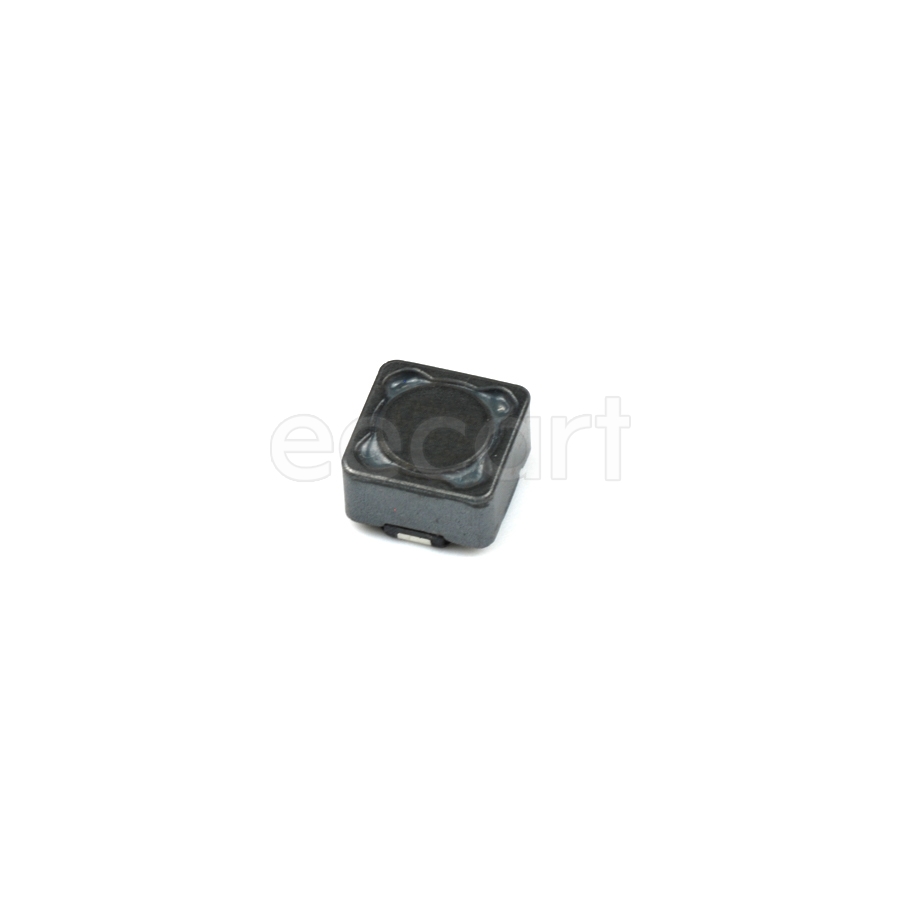

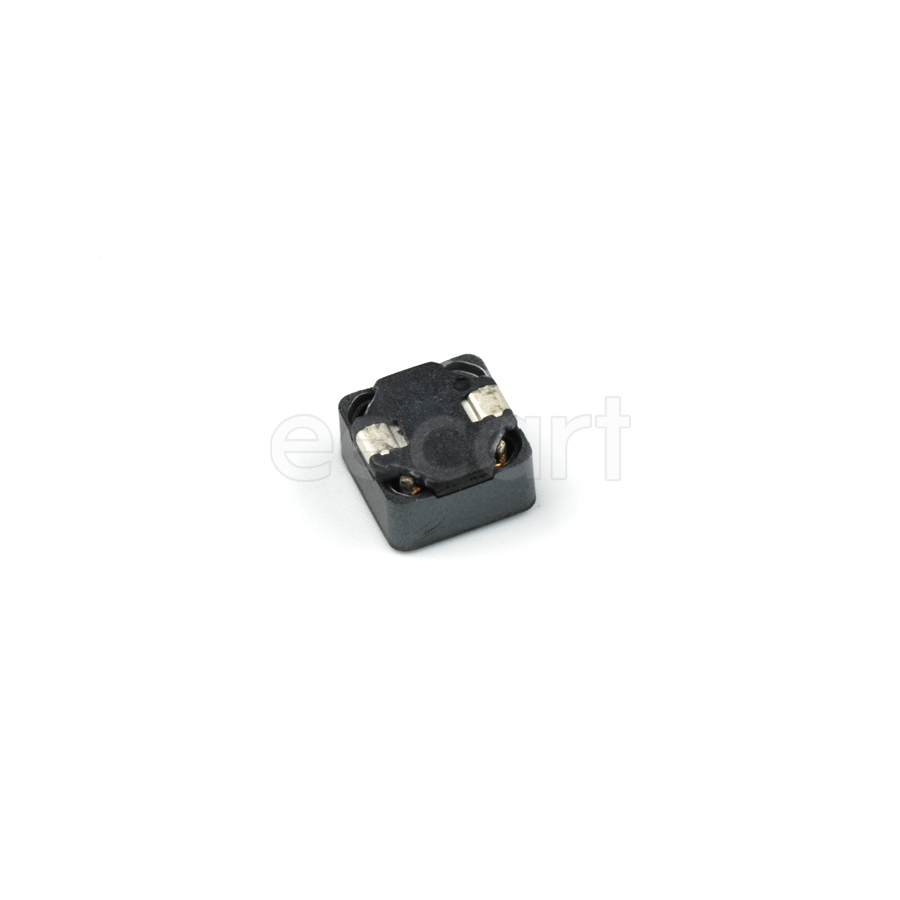

DR125-330-R
Manufacturer:
Eaton
Mfr.Part #:
DR125-330-R
Datasheet:
Description:
Fixed Inductors 12.50mmL×12.50mmW×6.00mmH SMD/SMT 33 µH 20 % 3.28 A 50.5 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 6 mm |
| Length | 12.5 mm |
| Width | 12.4968 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 6 mm |
| Packaging | Reel |
| Depth | 12.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Weight | 4.082331 g |
| Self Resonant Frequency | 100 kHz |
| Current Rating | 3.28 A |
| DC Resistance (DCR) | 50.5 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 33 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 3.28 A |
| inductance tolerance | 20 % |
| Max DC Current | 3.84 A |
| Saturation Current | 3.84 A |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
| RoHS | Compliant |
Stock: 1014
Distributors
pcbx
pcbxUnit Price$0.51901
Ext.Price$0.51901
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51901 | $0.51901 |
| 10 | $0.42482 | $4.24820 |
| 25 | $0.39802 | $9.95050 |
| 50 | $0.37291 | $18.64550 |
| 100 | $0.34939 | $34.93900 |
| 300 | $0.33179 | $99.53700 |
| 500 | $0.31507 | $157.53500 |
