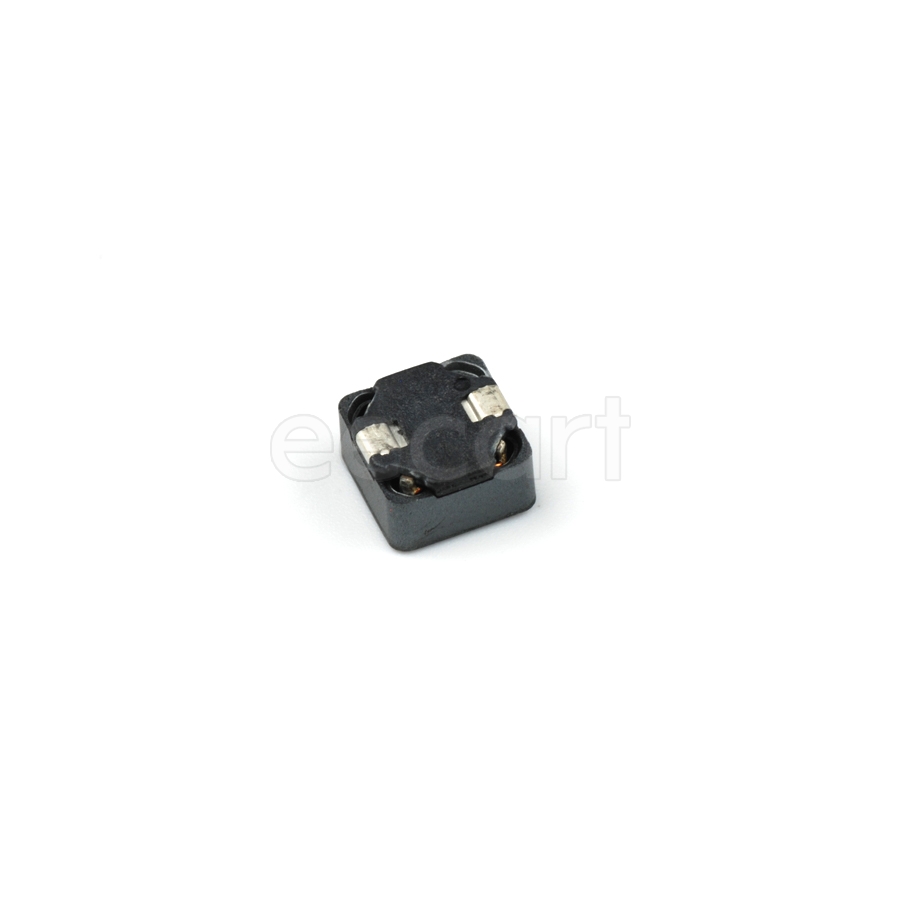

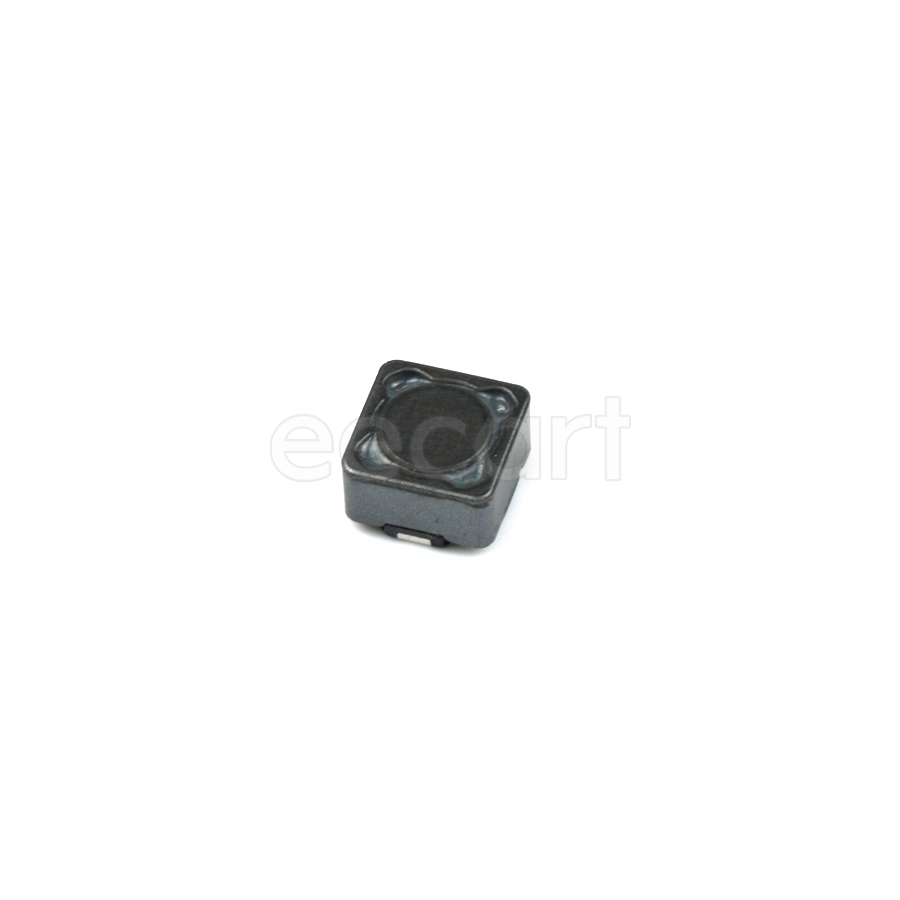

DR127-331-R
Manufacturer:
Eaton
Mfr.Part #:
DR127-331-R
Datasheet:
Description:
Fixed Inductors 12.50mmL×12.50mmW×8.00mmH SMD/SMT 330 µH 20 % 1.04 A 574 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 8 mm |
| Length | 12.5 mm |
| Width | 12.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 574 mΩ |
| Height | 8 mm |
| Packaging | Reel |
| Depth | 12.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Weight | 5.443108 g |
| Self Resonant Frequency | 100 kHz |
| Current Rating | 1.04 A |
| DC Resistance (DCR) | 574 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 330 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.04 A |
| inductance tolerance | 20 % |
| Max DC Current | 2.01 A |
| DC Current | 1.04 A |
| Saturation Current | 2.01 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
| RoHS | Compliant |
Stock: 353
Distributors
pcbx
pcbxUnit Price$0.51296
Ext.Price$0.51296
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51296 | $0.51296 |
| 10 | $0.42051 | $4.20510 |
| 25 | $0.39402 | $9.85050 |
| 50 | $0.36920 | $18.46000 |
| 100 | $0.34594 | $34.59400 |
| 300 | $0.32661 | $97.98300 |
