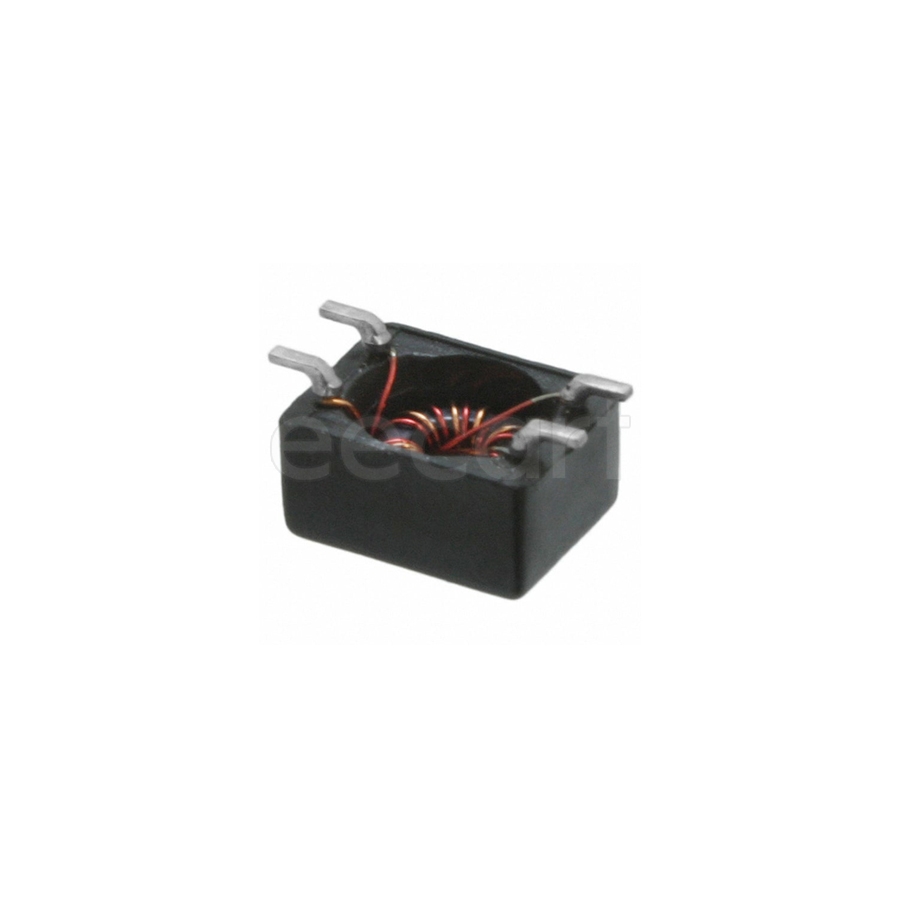

DR331-105BE
Manufacturer:
Bourns
Mfr.Part #:
DR331-105BE
Datasheet:
Description:
Fixed Inductors 7.30mmL×5.40mmW×5.00mmH SMD/SMT 1 mH 25 % 500 mA 400 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 25 % |
| Length | 7.2898 mm |
| Width | 5.4 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 135 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Height | 4.7 mm |
| Depth | 9.3 mm |
| RoHS | Compliant |
| Lead Pitch | 3.7 mm |
| REACH SVHC | No SVHC |
| Current | 500 mA |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 400 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Number of Lines | 2 |
| Inductance | 1 mH |
| Core Material | Ferrite |
| inductance tolerance | 25 % |
| Max DC Current | 500 mA |
| DC Current | 500 mA |
| Schedule B | 8504500000 |
| Packaging | Reel |
| Type | Surface Mount Data Line Chokes |
| Height - Seated (Max) | 5 mm |
Stock: 1222
Distributors
pcbx
pcbxUnit Price$0.54459
Ext.Price$0.54459
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54459 | $0.54459 |
| 10 | $0.44970 | $4.49700 |
| 25 | $0.39241 | $9.81025 |
| 50 | $0.36952 | $18.47600 |
| 100 | $0.34796 | $34.79600 |
| 300 | $0.32770 | $98.31000 |
| 500 | $0.30863 | $154.31500 |
| 1000 | $0.28897 | $288.97000 |
