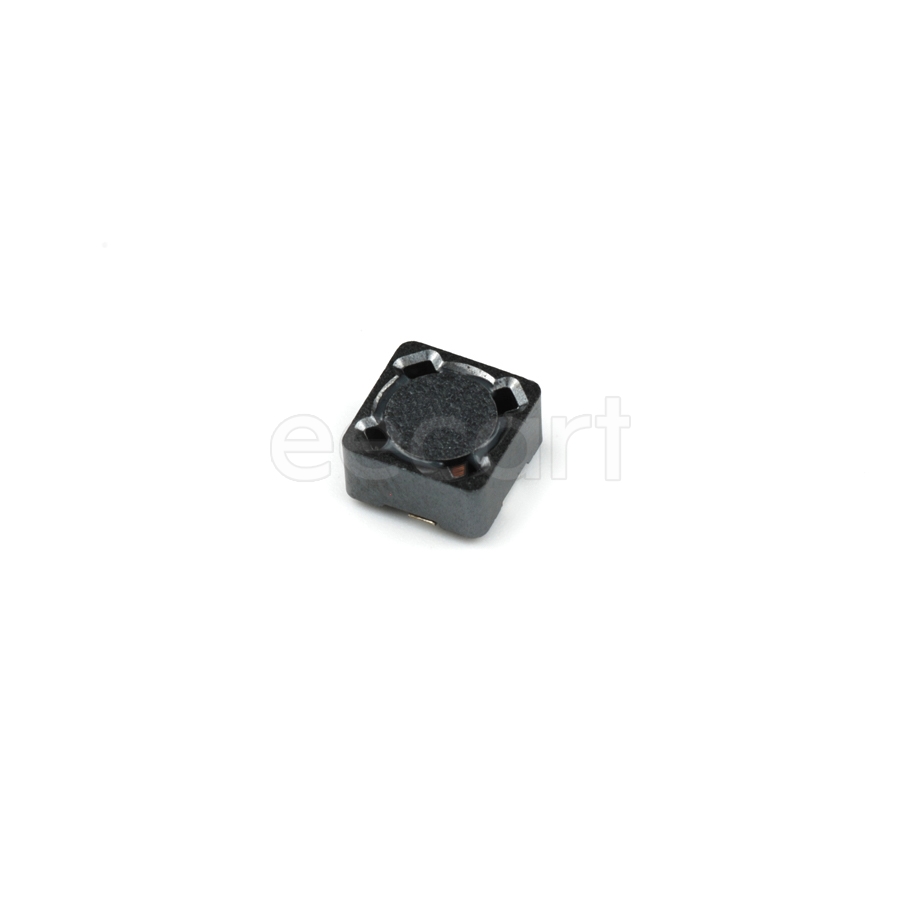

DR73-8R2-R
Manufacturer:
Eaton
Mfr.Part #:
DR73-8R2-R
Datasheet:
Description:
Fixed Inductors 7.60mmL×7.60mmW×3.55mmH SMD/SMT 8.2 µH 20 % 2.19 A 59.2 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Length | 7.6 mm |
| Width | 7.5946 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Height | 3.55 mm |
| Packaging | Reel |
| Depth | 7.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Weight | 907.18474 mg |
| Self Resonant Frequency | 100 kHz |
| Current Rating | 2.19 A |
| DC Resistance (DCR) | 59.2 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 8.2 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 2.19 A |
| inductance tolerance | 20 % |
| Max DC Current | 2.66 A |
| Saturation Current | 2.66 A |
| Schedule B | 8504500000 |
| Height - Seated (Max) | 3.55 mm |
| Type | Wirewound |
| RoHS | Compliant |
