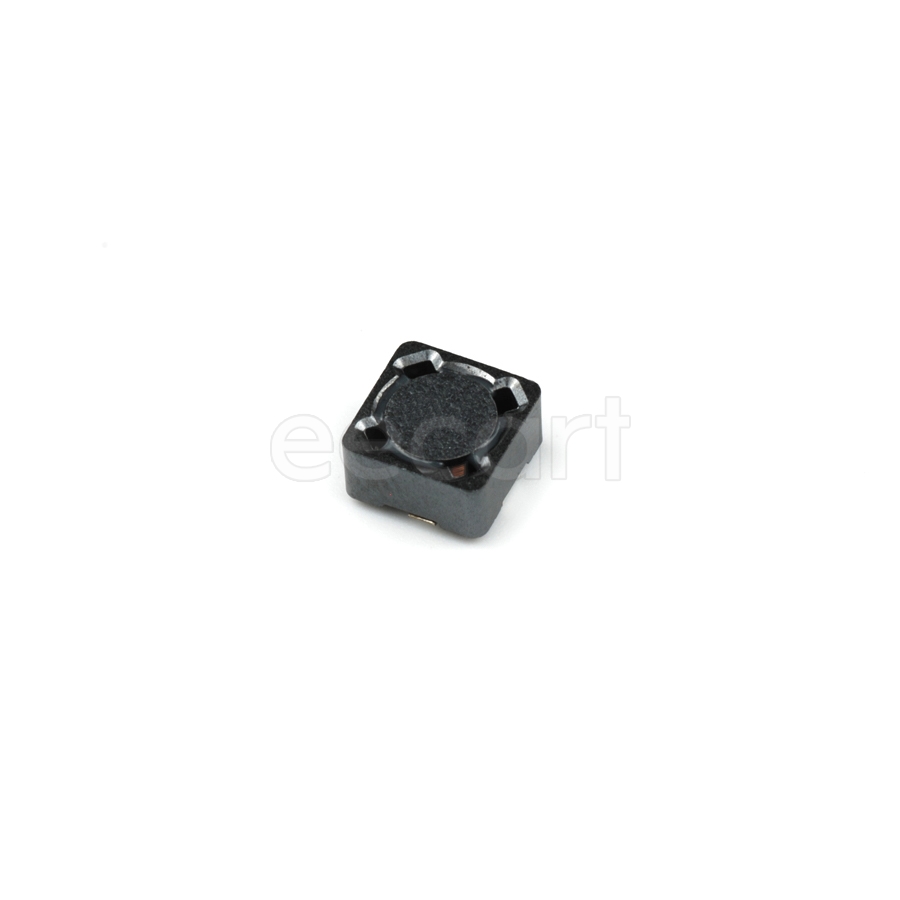

DR74-101-R
Manufacturer:
Eaton
Mfr.Part #:
DR74-101-R
Datasheet:
Description:
Fixed Inductors 7.60mmL×7.60mmW×4.35mmH SMD/SMT 100 µH 20 % 860 mA 383 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.35 mm |
| Length | 7.6 mm |
| Width | 7.5946 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Resistance | 383 mΩ |
| Height | 4.35 mm |
| Packaging | Reel |
| Depth | 7.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Weight | 1.360777 g |
| Self Resonant Frequency | 100 kHz |
| Current Rating | 860 mA |
| DC Resistance (DCR) | 383 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 100 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 860 mA |
| inductance tolerance | 20 % |
| Max DC Current | 990 mA |
| Series Resistance | 383 mΩ |
| DC Current | 860 mA |
| Saturation Current | 990 mA |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
| RoHS | Compliant |
