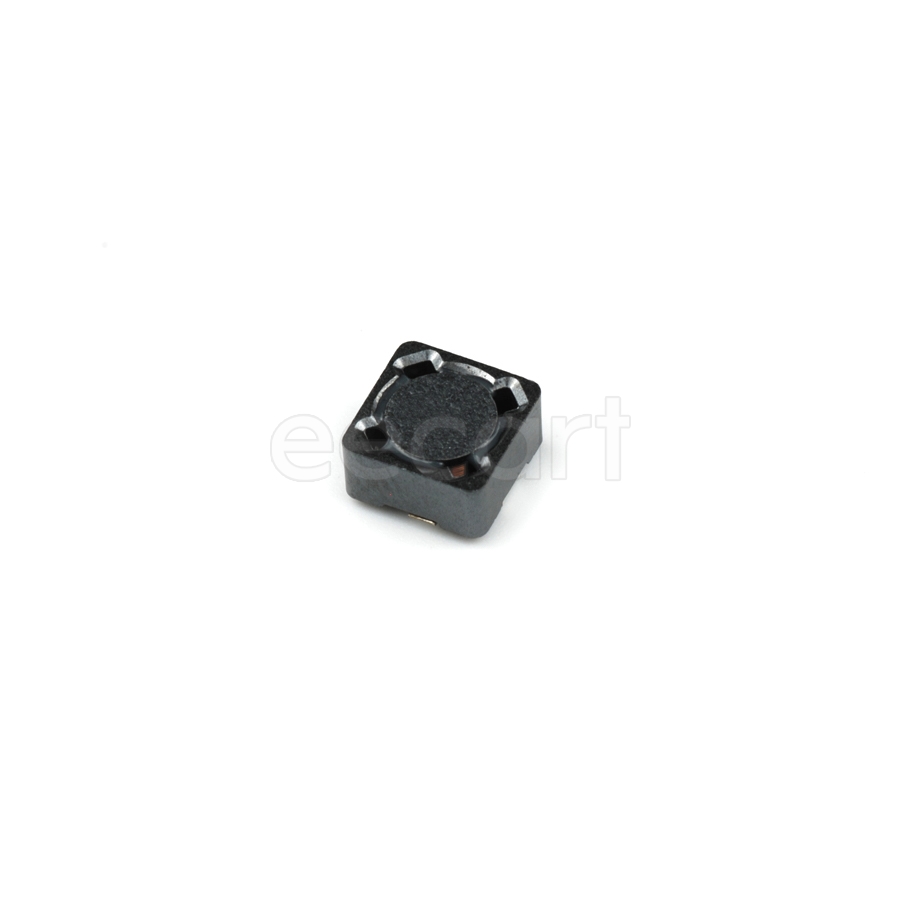

DRA124-101-R
Manufacturer:
Eaton
Mfr.Part #:
DRA124-101-R
Datasheet:
Description:
Fixed Inductors 12.50mmL×12.50mmW×4.50mmH SMD/SMT 100 µH 20 % 1.2 A 296 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.5 mm |
| Length | 12.5 mm |
| Width | 12.5 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 165 °C |
| Min Operating Temperature | -40 °C |
| Height | 4.5 mm |
| Packaging | Reel |
| Depth | 12.5 mm |
| REACH SVHC | No SVHC |
| Weight | 453.59237 mg |
| Ratings | AEC-Q200 |
| Self Resonant Frequency | 100 kHz |
| Current | 2.44 A |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 296 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 100 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 1.199 A |
| inductance tolerance | 20 % |
| Max DC Current | 2 A |
| Saturation Current | 2 A |
| Schedule B | 8504500000 |
| Composition(Kit Type) | Wirewound |
| Type | Wirewound |
| RoHS | Compliant |
Stock: 286
Distributors
pcbx
pcbxUnit Price$1.37016
Ext.Price$1.37016
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.37016 | $1.37016 |
| 10 | $1.12873 | $11.28730 |
| 25 | $1.04440 | $26.11000 |
| 50 | $0.98471 | $49.23550 |
| 100 | $0.92841 | $92.84100 |
| 300 | $0.89321 | $267.96300 |
| 500 | $0.85934 | $429.67000 |
