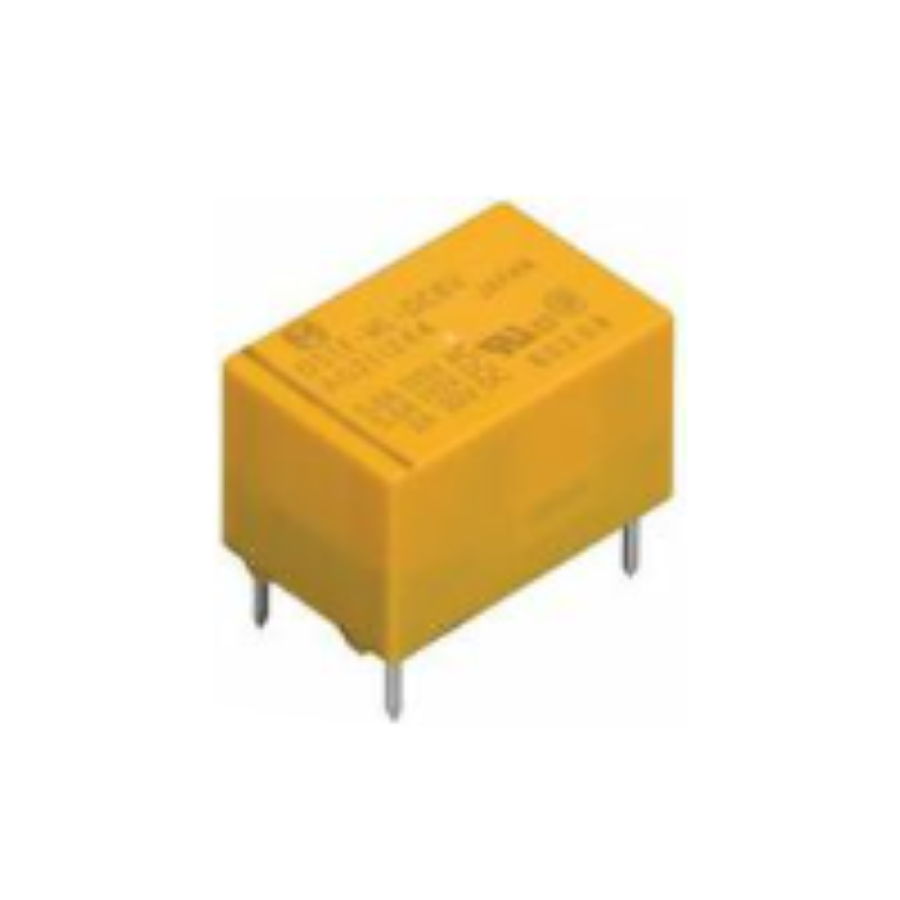

DS1E-S-DC5V
Manufacturer:
Panasonic
Mfr.Part #:
DS1E-S-DC5V
Datasheet:
Description:
Signal Relays Through Hole 40 mA Non-Latching Coil Voltage (DC):5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 220 V |
| Length | 15 mm |
| Width | 9.9 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 5 |
| Power Rating | 60 W |
| Height | 9.9 mm |
| Packaging | Tube |
| Depth | 9.9 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 3.2 g |
| Contact Plating | Gold, Silver |
| Contact Material(Contact Finish) | Silver |
| Type | Electromechanical |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Max Voltage Rating (DC) | 220 V |
| Approvals | CSA, UL |
| Throw Configuration | SPDT |
| Rise Time | 3 ms |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 5 V |
| Coil Current | 40 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 125 Ω |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Contact Current Rating | 2 A |
| power consumption | 200 mW |
| Termination Style | PC Pin |
| Switching Voltage | 250 VAC, 220 VDC |
| Coil Power | 200 mW |
| Must Operate Voltage | 4 V |
| Must Release Voltage | 500 mV |
| Contact Form | SPDT (1 Form C) |
Stock: 7
Distributors
pcbx
pcbxUnit Price$9.23666
Ext.Price$9.23666
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $9.23666 | $9.23666 |
| 10 | $8.42362 | $84.23620 |
| 25 | $7.84740 | $196.18500 |
| 50 | $7.30281 | $365.14050 |
| 100 | $7.09677 | $709.67700 |
| 300 | $6.79631 | $2038.89300 |
| 500 | $6.50858 | $3254.29000 |
| 1000 | $6.50174 | $6501.74000 |
