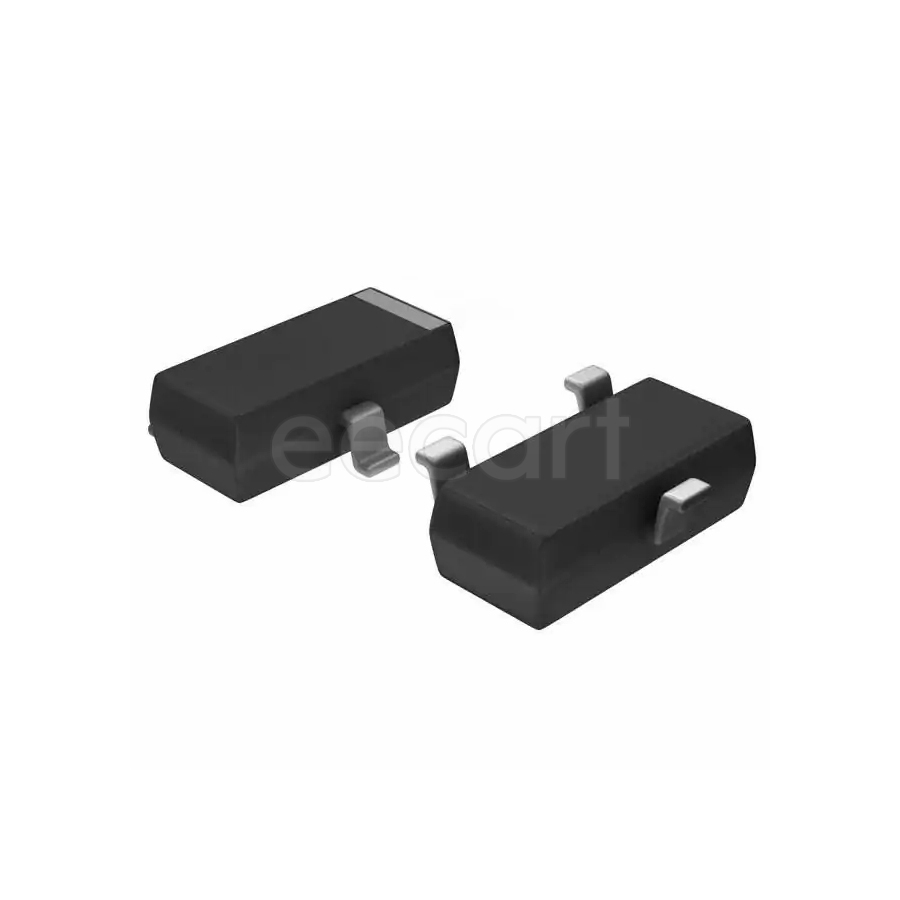

DSC2C01S0L
Manufacturer:
Panasonic
Mfr.Part #:
DSC2C01S0L
Datasheet:
Description:
BJTs SC-59 SMD/SMT NPN 200 mW Collector Base Voltage (VCBO):100 V Collector Emitter Voltage (VCEO):100 V Emitter Base Voltage (VEBO):15 V
| Parameter | Value |
|---|---|
| Length | 2.9 mm |
| Width | 1.5 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Height | 1.1 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Polarity | NPN |
| Contact Plating | Tin |
| Max Power Dissipation | 200 mW |
| Power Dissipation | 200 mW |
| Max Collector Current | 20 mA |
| Collector Emitter Breakdown Voltage | 100 V |
| Transition Frequency | 140 MHz |
| Continuous Collector Current | 20 mA |
| Element Configuration | Single |
| Max Frequency | 140 MHz |
| Collector Emitter Voltage (VCEO) | 100 V |
| Max Breakdown Voltage | 100 V |
| Gain Bandwidth Product | 140 MHz |
| Collector Base Voltage (VCBO) | 100 V |
| Collector Emitter Saturation Voltage | 200 mV |
| Emitter Base Voltage (VEBO) | 15 V |
| hFE Min | 400 |
| Max Cutoff Collector Current | 1 µA |
| Transistor Type | NPN |
