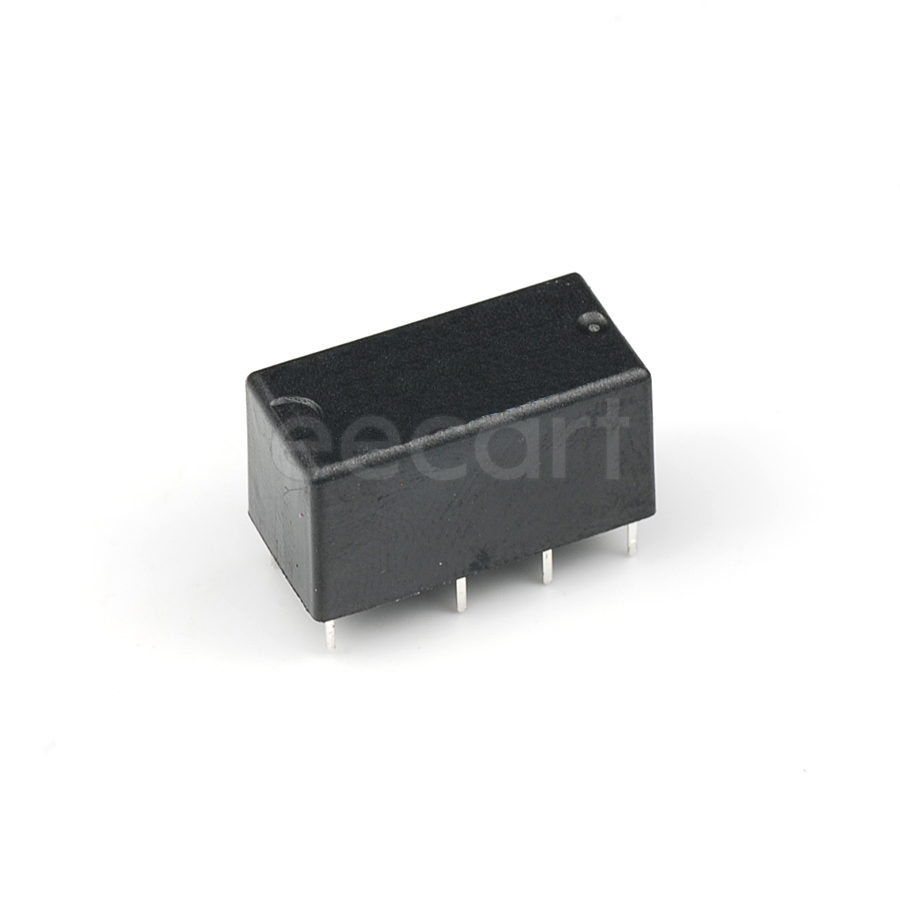

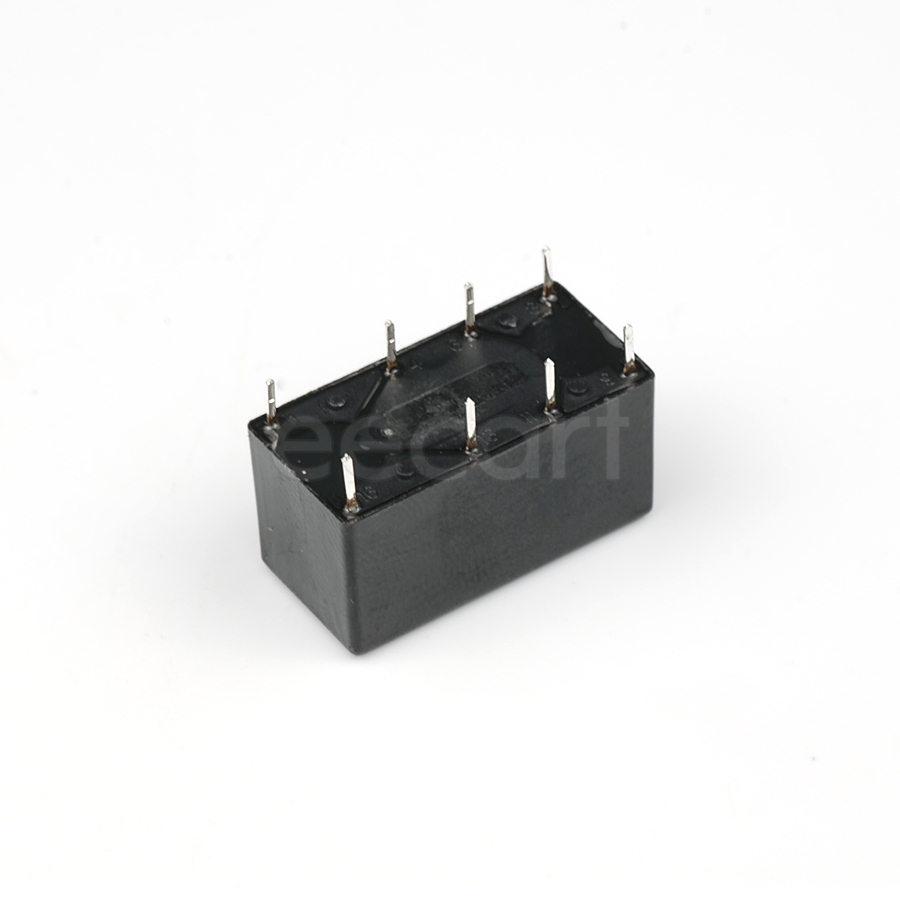

DSP1A-DC24V
Manufacturer:
Panasonic
Mfr.Part #:
DSP1A-DC24V
Datasheet:
Description:
Power Relays Through Hole 12.5 mA 24 V General Purpose
| Parameter | Value |
|---|---|
| Length | 20.2 mm |
| Width | 11 mm |
| Max Operating Temperature | 60 °C |
| Min Operating Temperature | -40 °C |
| Height | 10.5 mm |
| Circuit Type | Non Latching |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver Tin Oxide (AgSnO) |
| Current Rating | 8 A |
| Coil Voltage (DC) | 24 V |
| Coil Current | 12.5 mA |
| Coil Type | Non-Latching |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Contact Current Rating | 8 A |
| Termination Style | PC Pin |
| Switching Voltage | 250 VAC, 125 VDC |
| Must Operate Voltage | 19.2 V |
| Must Release Voltage | 2.4 V |
Stock: 512
Distributors
pcbx
pcbxUnit Price$3.47358
Ext.Price$3.47358
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.47358 | $3.47358 |
| 10 | $3.31029 | $33.10290 |
| 25 | $3.05000 | $76.25000 |
| 50 | $2.81016 | $140.50800 |
| 100 | $2.74689 | $274.68900 |
| 300 | $2.66769 | $800.30700 |
| 500 | $2.59077 | $1295.38500 |
| 1000 | $2.51606 | $2516.06000 |
