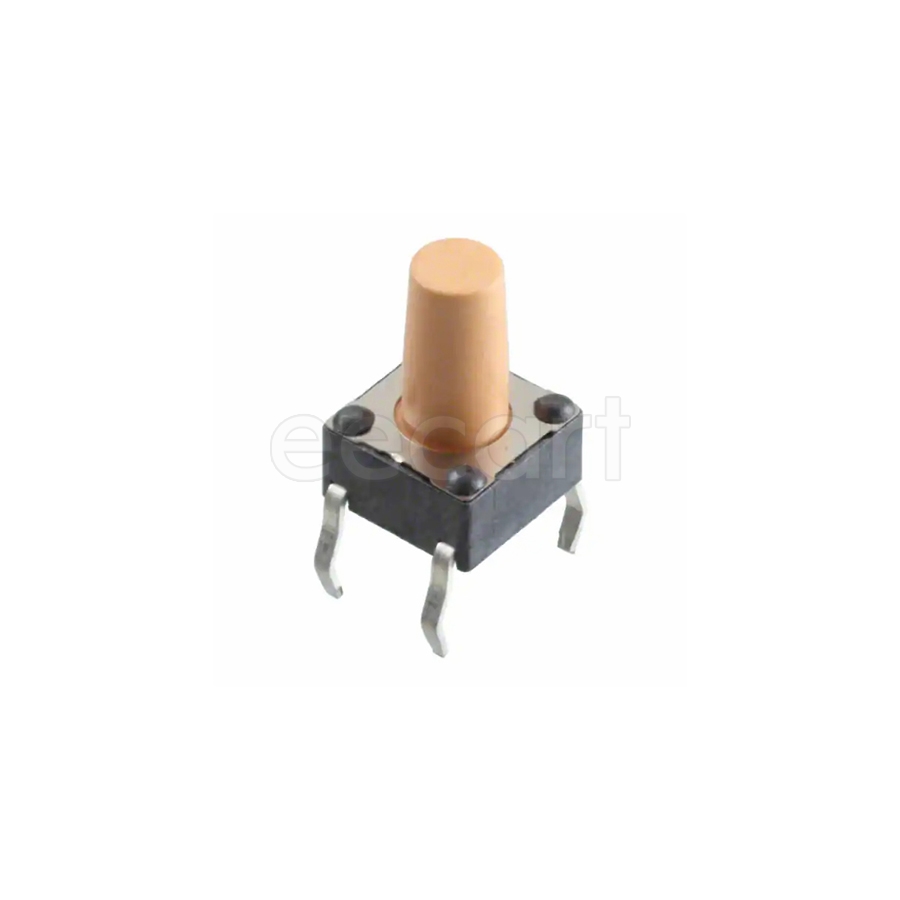

DTS-63N-S-V
Manufacturer:
Diptronics
Mfr.Part #:
DTS-63N-S-V
Datasheet:
Description:
Tactile Switches Through Hole SPST OFF - (ON) 160 gf Vertical
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 6.2 mm |
| Width | 6.2 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 4 |
| Height | 7 mm |
| Circuit Type | SPST |
| Packaging | Bulk |
| RoHS | Compliant |
| Current Rating | 50 mA |
| Color | Black |
| Throw Configuration | SPST |
| Switch Function | OFF - (ON) |
| Illumination Type | Non-Illuminated |
| Electrical Life | 50 kcycles |
| Operating Force | 160 gf |
| Actuator Type | Round |
| Mounting Direction | Vertical |
| Cap Color | Black |
Stock: 294
Distributors
pcbx
pcbxUnit Price$0.08890
Ext.Price$0.08890
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08890 | $0.08890 |
| 10 | $0.07931 | $0.79310 |
| 50 | $0.07075 | $3.53750 |
| 100 | $0.06524 | $6.52400 |
| 500 | $0.06016 | $30.08000 |
| 1000 | $0.05548 | $55.48000 |
| 3000 | $0.05146 | $154.38000 |
| 5000 | $0.04773 | $238.65000 |
