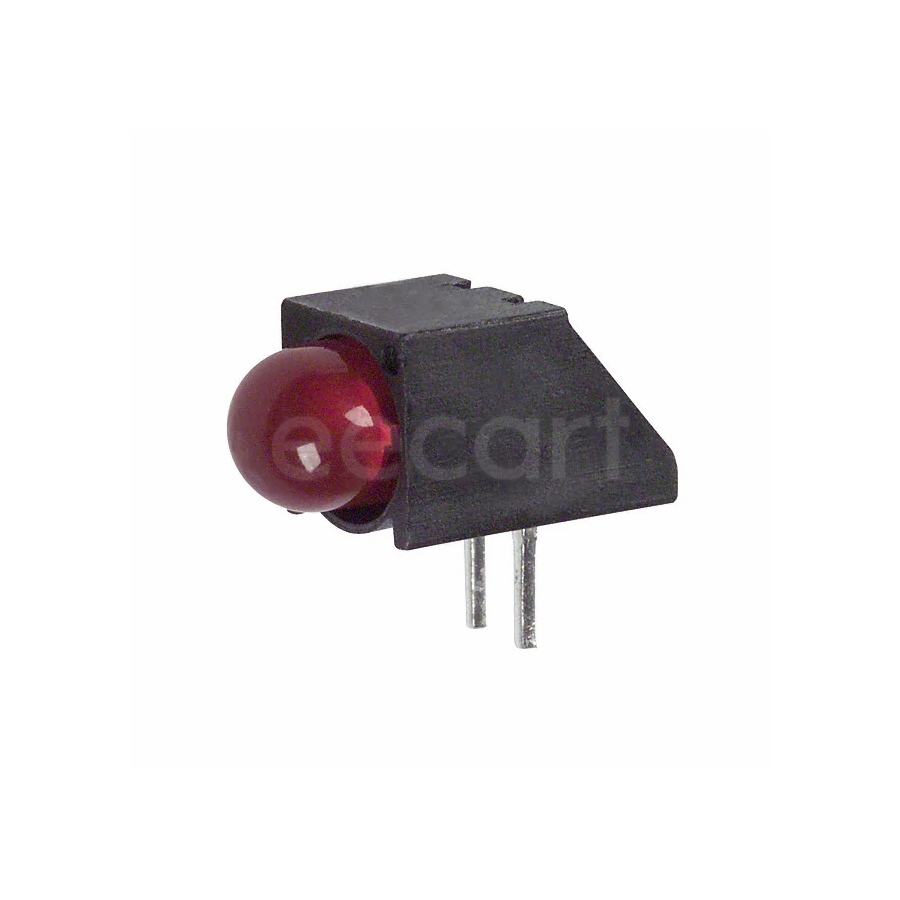

550-0407F
Manufacturer:
Dialight
Mfr.Part #:
550-0407F
Datasheet:
Description:
LEDs 12.45mmL×6.10mmW×6.10mmH Through Hole Red 635 nm 20 mA 2 V
| Parameter | Value |
|---|---|
| Length | 6.1 mm |
| Width | 6.1 mm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Height | 6.1 mm |
| Packaging | Bulk |
| Voltage Rating | 2 V |
| Depth | 6.1 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Current | 20 mA |
| Forward Current | 20 mA |
| Forward Voltage | 2 V |
| Color | Red |
| Illumination Color | Red |
| Lens Style | Diffused |
| Luminous Intensity | 12.3 mcd |
| Power Dissipation | 80 mW |
| Element Configuration | Single |
| Number of LEDs | 1 |
| Viewing Angle | 60 ° |
| Wavelength | 635 nm |
| Lens Color | Red |
| Dominant Wavelength/CCT (K) | 635 nm |
| Reverse Voltage | 5 V |
| Test Current | 20 mA |
| Schedule B | 8541402000 |
Stock: 933
Distributors
pcbx
pcbxUnit Price$1.33638
Ext.Price$1.33638
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.33638 | $1.33638 |
| 10 | $0.81066 | $8.10660 |
| 25 | $0.73295 | $18.32375 |
| 50 | $0.65371 | $32.68550 |
| 100 | $0.58046 | $58.04600 |
| 300 | $0.55367 | $166.10100 |
| 500 | $0.52811 | $264.05500 |
