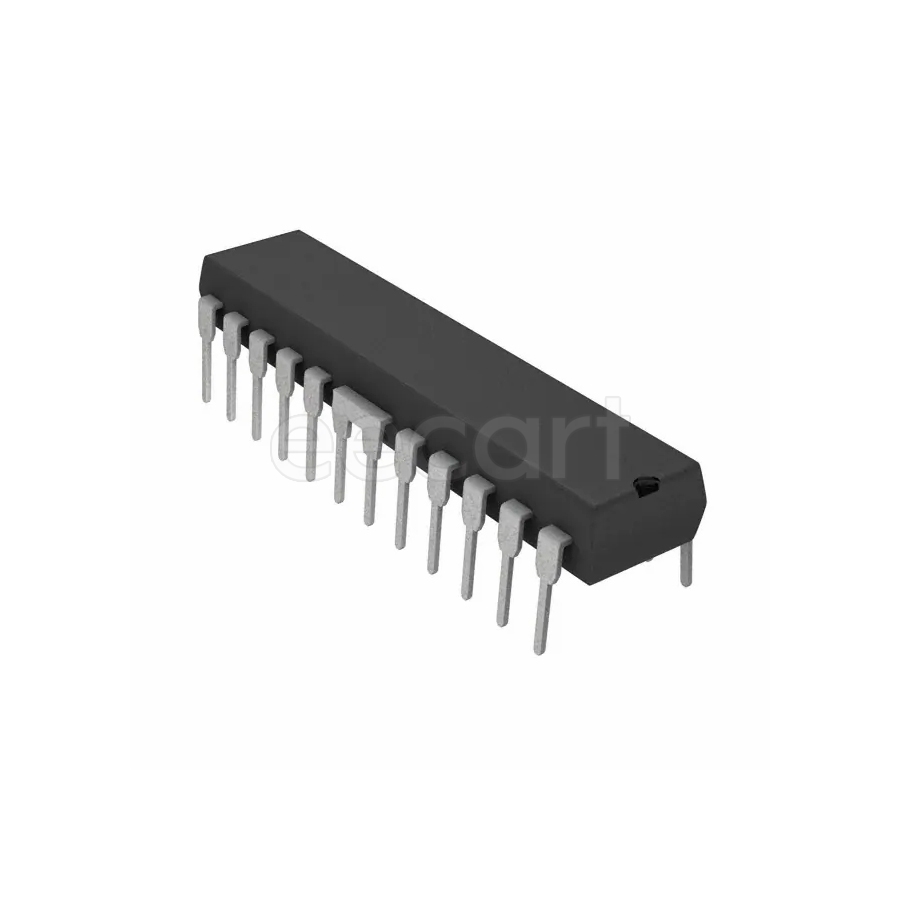

E-L6219
Manufacturer:
STMicroelectronics
Mfr.Part #:
E-L6219
Datasheet:
Description:
Motor Drivers PDIP-24 Through Hole Parallel Load voltage:10 V to 46 V Half Bridge
| Parameter | Value |
|---|---|
| Length | 31.88 mm |
| Width | 6.86 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 24 |
| Height | 3.3 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Interface | Parallel |
| Output Current | 1 A |
| Operating Supply Voltage | 4.5 V to 10 V |
| Max Supply Voltage | 46 V |
| Min Supply Voltage | 10 V |
| Max Collector Current | 750 mA |
| Operating Supply Current | 15 mA |
| Output Configuration | Half Bridge |
| Number of Outputs | 4 |
| Motor Type | Stepper |
| Nominal Supply Current | 15 mA |
| Collector Emitter Voltage (VCEO) | 46 V |
| Applications | General Purpose |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Step Resolution | 1, 1/2 |
| Load Voltage | 10 V to 46 V |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
