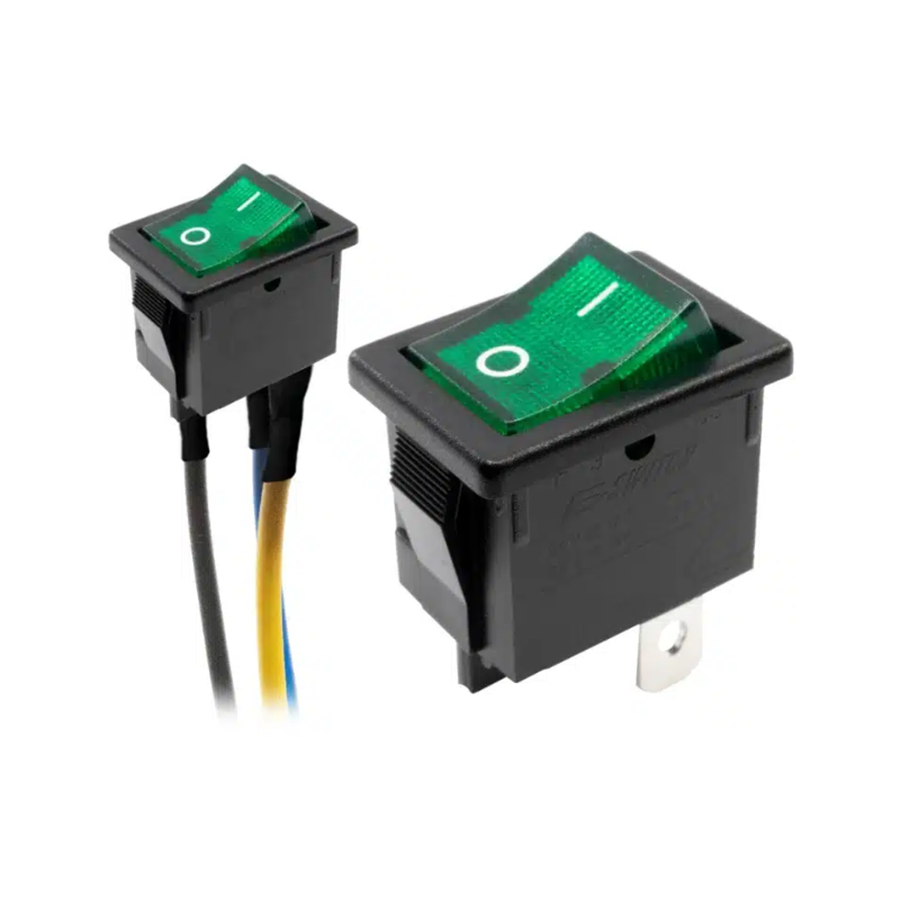

R1973BBLKBLKFF0
Manufacturer:
E-Switch
Mfr.Part #:
R1973BBLKBLKFF0
Datasheet:
Description:
Rocker Switches Panel, Snap in DPST ON - OFF Illuminated Concave (Curved) Current Rating:9 A
| Parameter | Value |
|---|---|
| Termination | Quick Connect |
| Max Operating Temperature | 55 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 125 V |
| Circuit Type | DPST |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Silver |
| Current Rating | 9 A |
| Color | Black |
| Throw Configuration | DPST |
| Switch Function | ON - OFF |
| Illumination Type | Illuminated |
| Electrical Life | 10 kcycles |
| Mechanical Life | 30 kcycles |
| Actuator Type | Concave (Curved) |
| Termination Style | Quick Connect - 4.7 mm |
| Panel Cutout Dimensions | Rectangular - 19.20 mm x 12.80 mm |
Stock: 250
Distributors
pcbx
pcbxUnit Price$1.59616
Ext.Price$1.59616
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.59616 | $1.59616 |
| 10 | $1.50211 | $15.02110 |
| 25 | $1.41406 | $35.35150 |
| 50 | $1.35164 | $67.58200 |
| 100 | $1.24196 | $124.19600 |
| 300 | $1.14118 | $342.35400 |
| 500 | $1.04858 | $524.29000 |
| 1000 | $0.96350 | $963.50000 |
