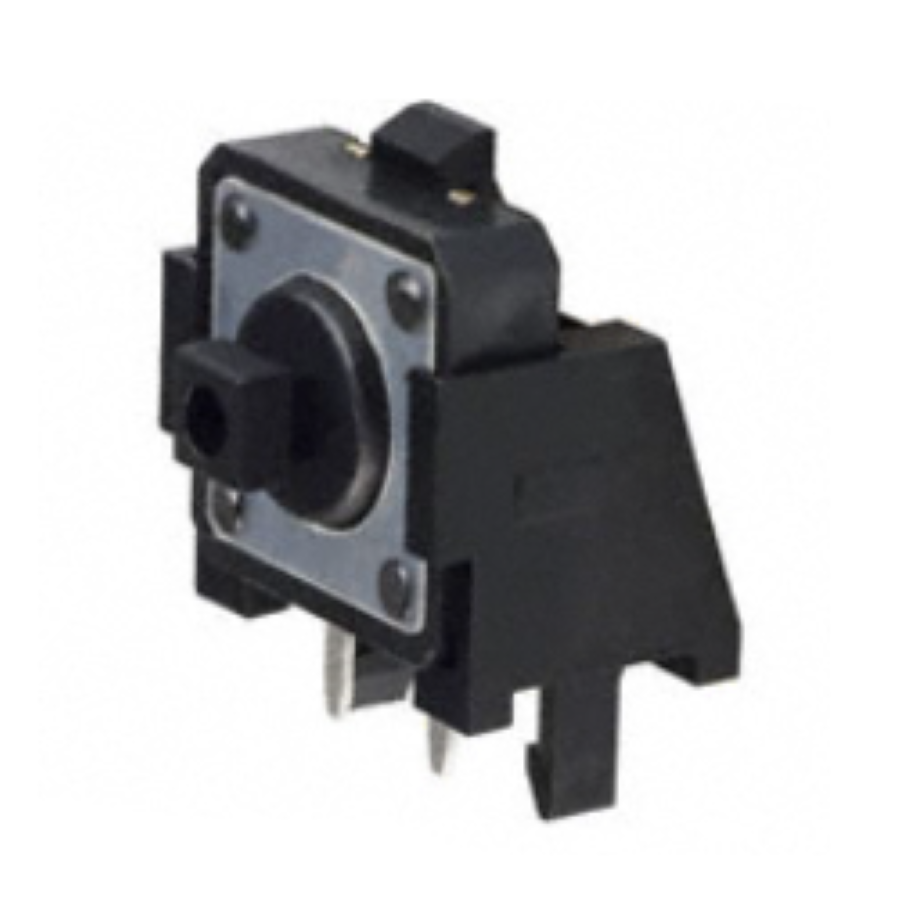

TL1100CF160Q
Manufacturer:
E-Switch
Mfr.Part #:
TL1100CF160Q
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 1.6 N Right Angle
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 12 mm |
| Width | 12 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Right Angle |
| Actuator Length | 5.6 mm |
| Throw Configuration | SPST |
| Housing Material | Polybutylene |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1.6 N |
| Switch Travel | 300 µm |
| Actuator Material | Polyester |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Plunger for Cap |
| Mounting Direction | Right Angle |
Stock: 3727
Distributors
pcbx
pcbxUnit Price$0.33770
Ext.Price$0.33770
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33770 | $0.33770 |
| 10 | $0.29324 | $2.93240 |
| 25 | $0.27443 | $6.86075 |
| 50 | $0.25994 | $12.99700 |
| 100 | $0.24622 | $24.62200 |
| 300 | $0.23026 | $69.07800 |
| 500 | $0.21533 | $107.66500 |
| 1000 | $0.20137 | $201.37000 |
| 3000 | $0.18832 | $564.96000 |
| 5000 | $0.17611 | $880.55000 |
