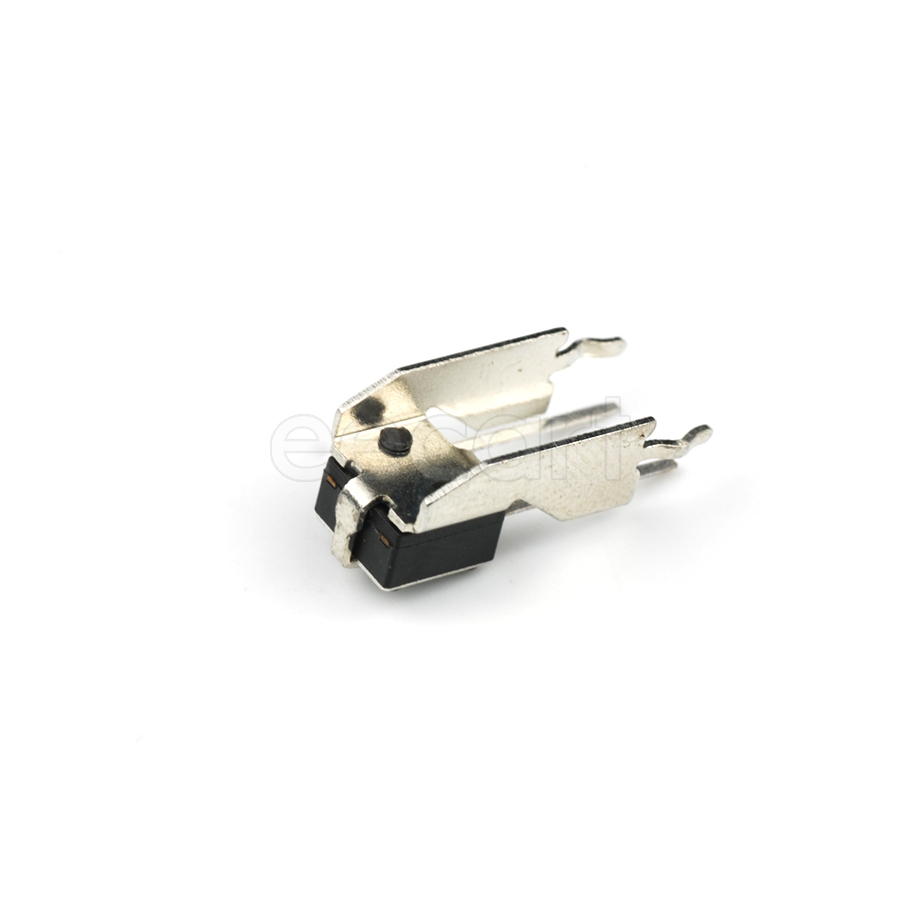

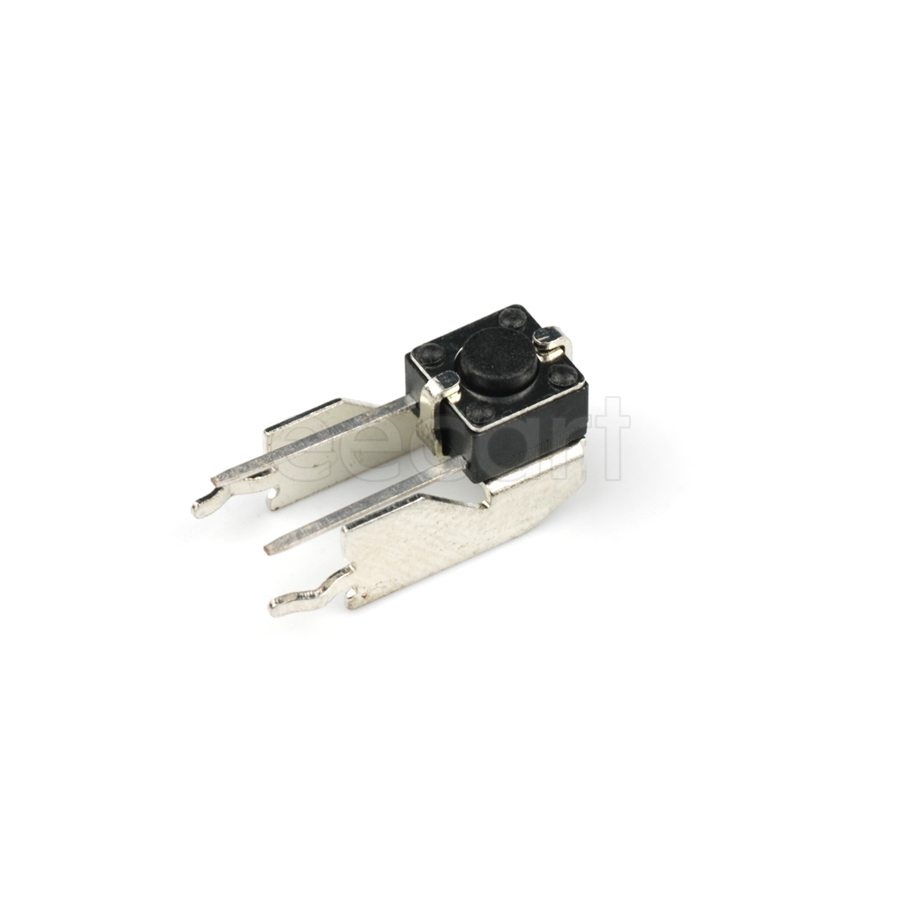

TL3301NF260QJ
Manufacturer:
E-Switch
Mfr.Part #:
TL3301NF260QJ
Datasheet:
Description:
Tactile Switches SMD/SMT Off-Mom 260 gf Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | J-Bend |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Bronze, Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Actuator Length | 700 µm |
| Throw Configuration | SPST |
| Housing Material | Nylon |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 260 gf |
| Switch Travel | 250 µm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 100 kcycles |
| Actuator Type | Standard |
| Life (Cycles) | 100 kCycles |
| Mounting Direction | Straight |
Stock: 5332
Distributors
pcbx
pcbxUnit Price$0.29410
Ext.Price$0.29410
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29410 | $0.29410 |
| 10 | $0.26161 | $2.61610 |
| 25 | $0.24366 | $6.09150 |
| 50 | $0.23047 | $11.52350 |
| 100 | $0.21800 | $21.80000 |
| 300 | $0.20387 | $61.16100 |
| 500 | $0.19065 | $95.32500 |
| 1000 | $0.16098 | $160.98000 |
| 3000 | $0.13593 | $407.79000 |
