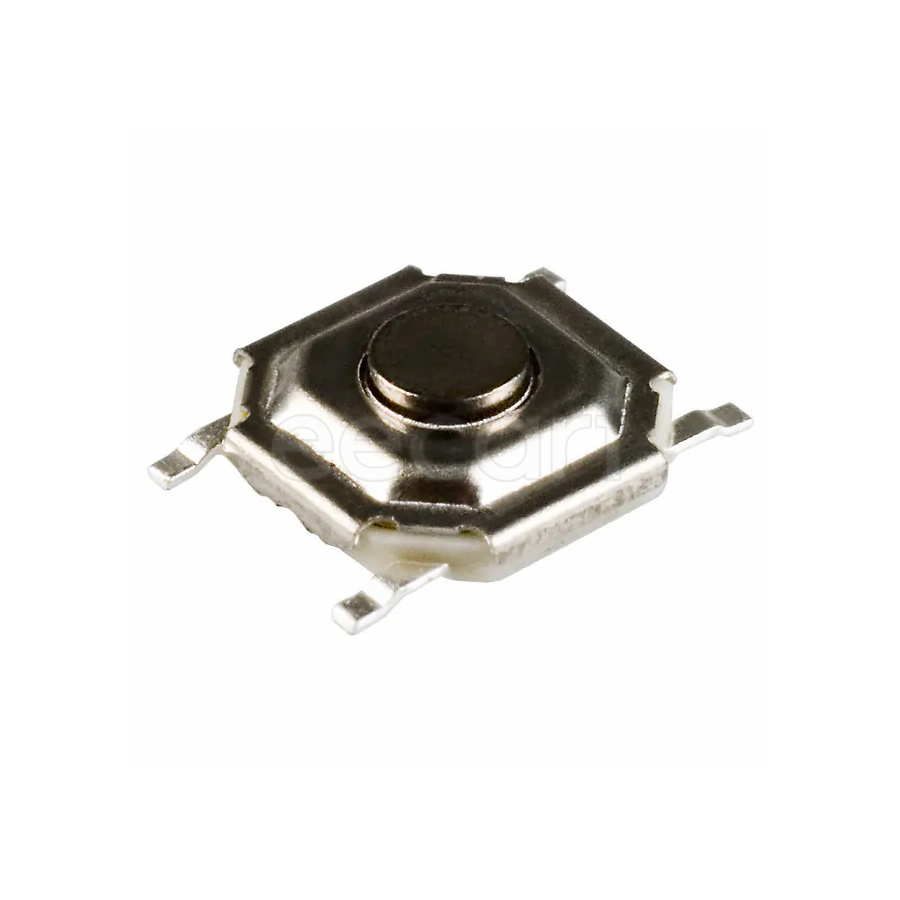

TL3342F160QG
Manufacturer:
E-Switch
Mfr.Part #:
TL3342F160QG
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO OFF - (ON) 1.6 N Straight
| Parameter | Value |
|---|---|
| Capacitance | 4.7 µF |
| Voltage Rating (DC) | 12 V |
| Tolerance | 20 % |
| Length | 4.9 mm |
| Width | 0 m |
| Termination | Solder |
| Diameter | 5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 4 |
| Height | 11 mm |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Actuator Length | 300 µm |
| Throw Configuration | SPST |
| Switch Function | OFF - (ON) |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1.6 N |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
| Mounting Direction | Straight |
Stock: 12300
Distributors
pcbx
pcbxUnit Price$0.41891
Ext.Price$0.41891
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.41891 | $0.41891 |
| 10 | $0.35565 | $3.55650 |
| 25 | $0.33427 | $8.35675 |
| 50 | $0.31581 | $15.79050 |
| 100 | $0.29837 | $29.83700 |
| 300 | $0.27893 | $83.67900 |
| 500 | $0.26076 | $130.38000 |
| 1000 | $0.24707 | $247.07000 |
| 3000 | $0.20860 | $625.80000 |
