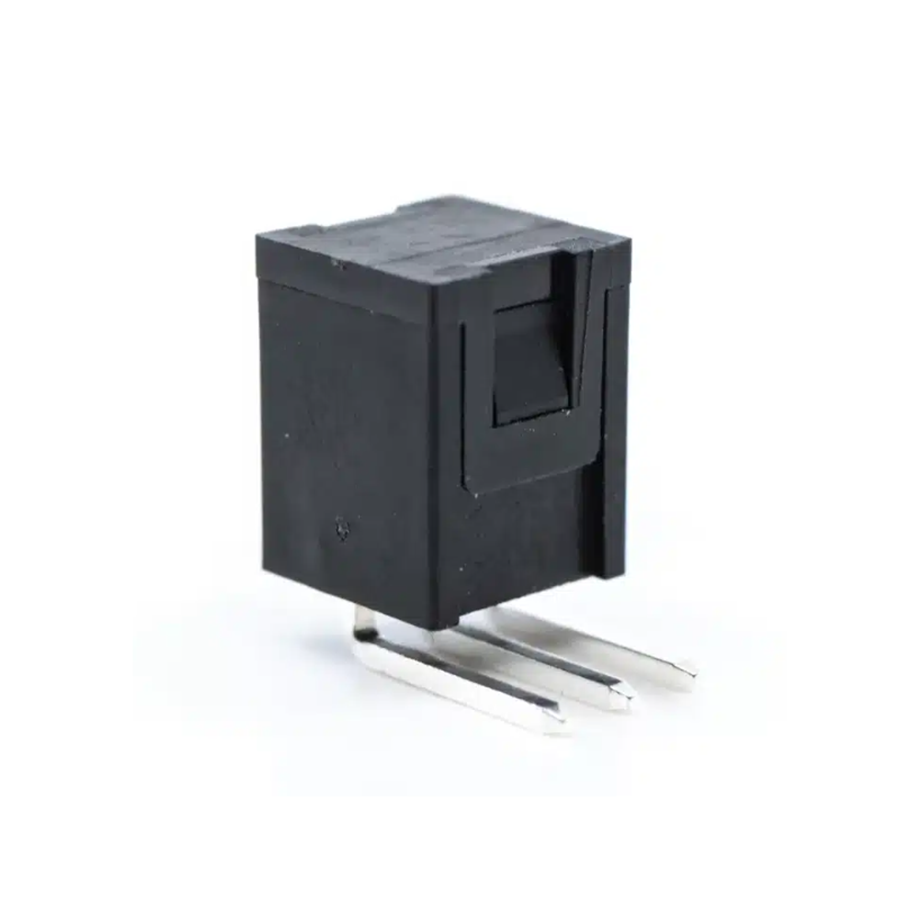

TM1000Q
Manufacturer:
E-Switch
Mfr.Part #:
TM1000Q
Datasheet:
Description:
Switches Through Hole Voltage Rating (DC):20 V Current Rating:2 mA Voltage Rating (AC):20 V 100 kCycles
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 20 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 20 V |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Number of Terminals | 3 |
| Current Rating | 2 mA |
| Max Voltage Rating (DC) | 24 V |
| Output Current | 20 mA |
| Orientation | Right Angle |
| Throw Configuration | SPST |
| Contact Resistance | 5 Ω |
| Max Voltage Rating (AC) | 24 V |
| Illumination Type | Non-Illuminated |
| Electrical Life | 1 Mcycles |
| Switching Voltage | 24 V |
| Life (Cycles) | 100 kCycles |
Stock: 512
Distributors
pcbx
pcbxUnit Price$1.01993
Ext.Price$1.01993
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.01993 | $1.01993 |
| 10 | $0.87630 | $8.76300 |
| 25 | $0.81987 | $20.49675 |
| 50 | $0.80107 | $40.05350 |
| 100 | $0.73866 | $73.86600 |
| 300 | $0.69863 | $209.58900 |
| 500 | $0.66077 | $330.38500 |
| 1000 | $0.62496 | $624.96000 |
