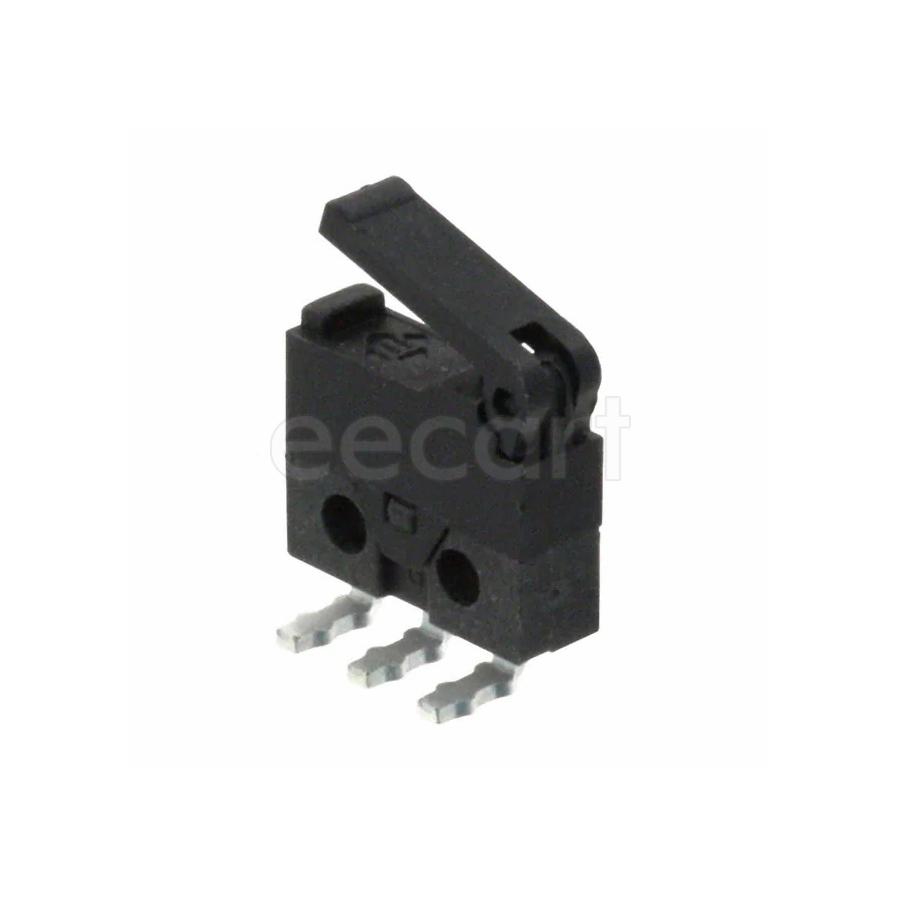

TS0101F020V4
Manufacturer:
E-Switch
Mfr.Part #:
TS0101F020V4
Datasheet:
Description:
Snap Action / Limit Switches Through Hole SPDT On-Mom Current Rating:300 mA Operating Force:200 mN Lever, Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 6 V |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Circuit Type | SPDT |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Current Rating | 300 mA |
| Max Voltage Rating (DC) | 6 V |
| Orientation | Right Angle |
| Throw Configuration | SPDT |
| Switch Function | On-Mom |
| Electrical Life | 50 kcycles |
| Operating Force | 200 mN |
| Mechanical Life | 100 kcycles |
| Operating Position | 6.7056 mm |
| Contact Current Rating | 300 mA |
| Actuator Type | Lever, Straight |
| Release Force | 20 gf |
| Packaging | Bulk |
| Termination Style | PC Pin |
| Pretravel | 1.8 mm |
Stock: 1742
Distributors
pcbx
pcbxUnit Price$0.67562
Ext.Price$0.67562
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.67562 | $0.67562 |
| 10 | $0.55684 | $5.56840 |
| 25 | $0.51628 | $12.90700 |
| 50 | $0.48764 | $24.38200 |
| 100 | $0.46074 | $46.07400 |
| 300 | $0.43130 | $129.39000 |
| 500 | $0.40375 | $201.87500 |
| 1000 | $0.37989 | $379.89000 |
| 3000 | $0.35744 | $1072.32000 |
| 5000 | $0.33630 | $1681.50000 |
