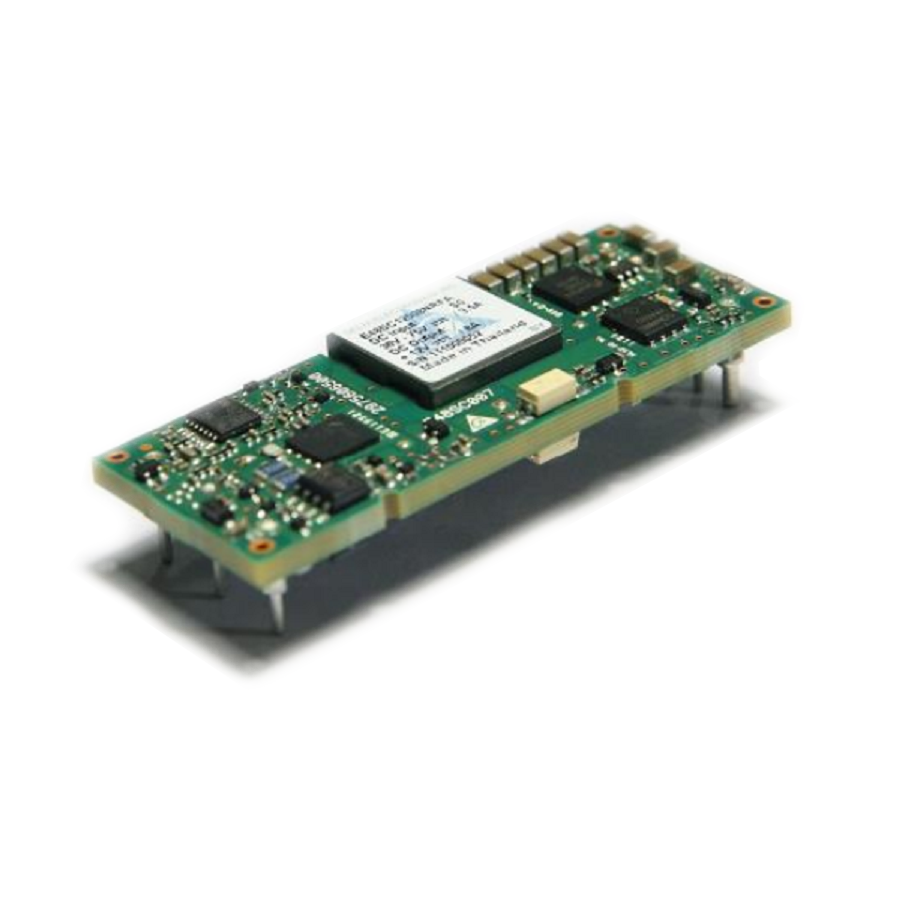

E48SC12008NRFA
Manufacturer:
Delta
Mfr.Part #:
E48SC12008NRFA
Datasheet:
Description:
Board Mount Modules 58.40mmL×22.8mmW×8.40mmH Through Hole Current - Output 1:8 A Voltage - Output 1:12 V 92 %
| Parameter | Value |
|---|---|
| Length | 58.4 mm |
| Width | 22.86 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 8.382 mm |
| Packaging | Tray |
| Radiation Hardening | No |
| RoHS | Compliant |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Min Input Voltage | 36 V |
| Output Current | 8 A |
| Output Voltage | 12 V |
| Max Power Dissipation | 96 W |
| Max Output Current | 8 A |
| Max Input Voltage | 75 V |
| Number of Outputs | 1 |
| Isolation Voltage | 2.25 kV |
| Output Power | 96 W |
| Current - Output 1 | 8 A |
| Efficiency | 92 % |
| Voltage - Output 1 | 12 V |
| Max Input Voltage (DC) | 75 V |
| Min Input Voltage (DC) | 36 V |
