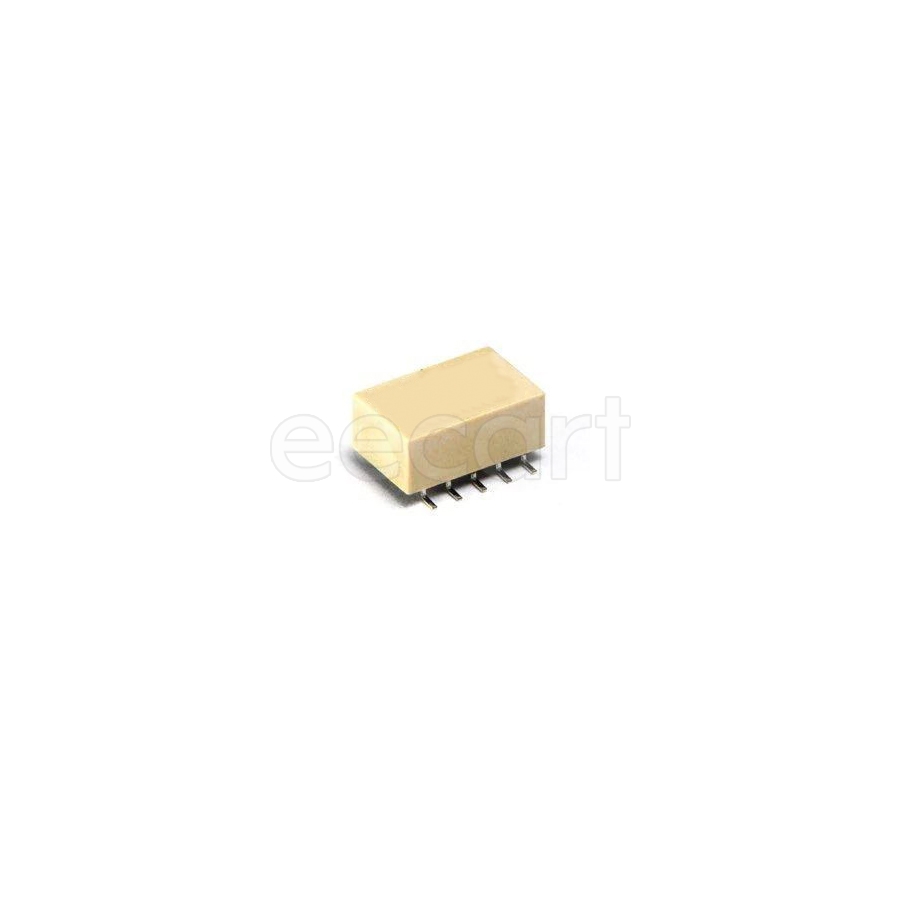

EB2-12NU
Manufacturer:
NEC
Mfr.Part #:
EB2-12NU
Datasheet:
Description:
Signal Relays SMD/SMT 11.7 mA Non-Latching Coil Voltage (DC):12 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 220 V |
| Length | 14.3 mm |
| Width | 14 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 10 |
| Packaging | Tube |
| Depth | 11.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Silver (Ag) with Gold Plating |
| Max Current Rating | 1 A |
| Max Voltage Rating (DC) | 220 V |
| Throw Configuration | DPDT |
| Max Voltage Rating (AC) | 250 V |
| Coil Voltage (DC) | 12 V |
| Coil Current | 11.7 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 1.028 kΩ |
| Operate Time | 2 ms |
| Release Time | 1 ms |
| Contact Current Rating | 1 A |
| power consumption | 140 mW |
| Termination Style | Gull Wing |
| Switching Voltage | 250 VAC, 220 VDC |
| Coil Power | 140 mW |
| Must Operate Voltage | 9 V |
| Must Release Voltage | 1.2 V |
| Contact Form | DPDT (2 Form C) |
