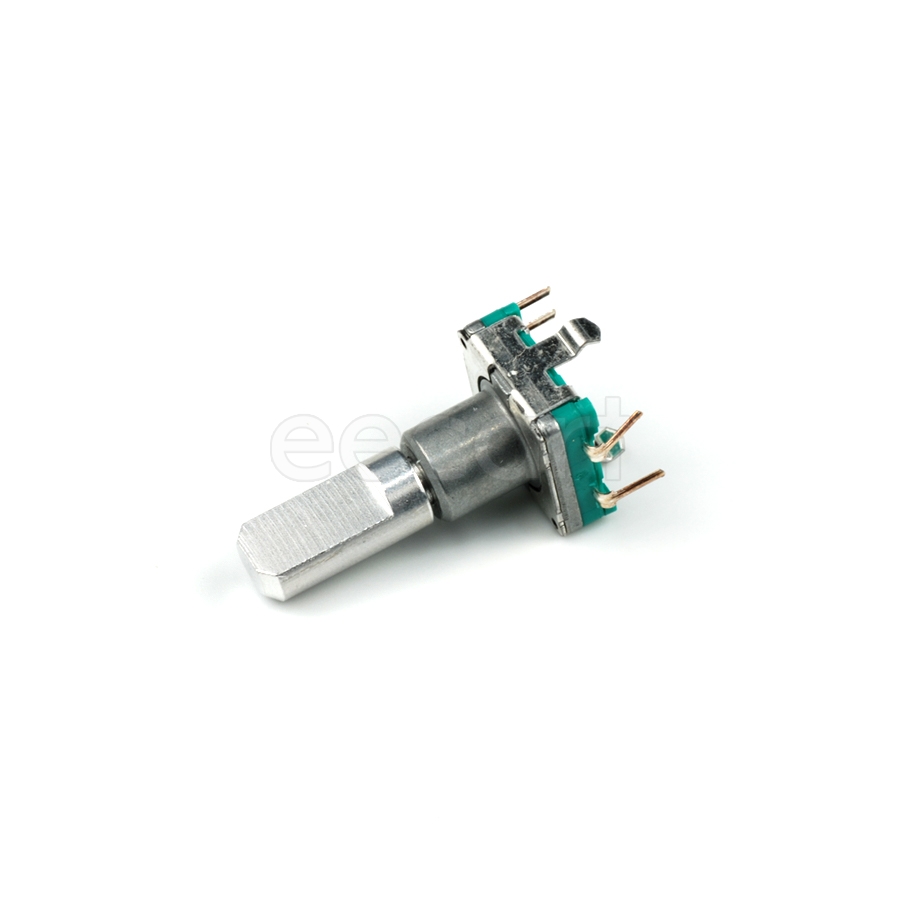

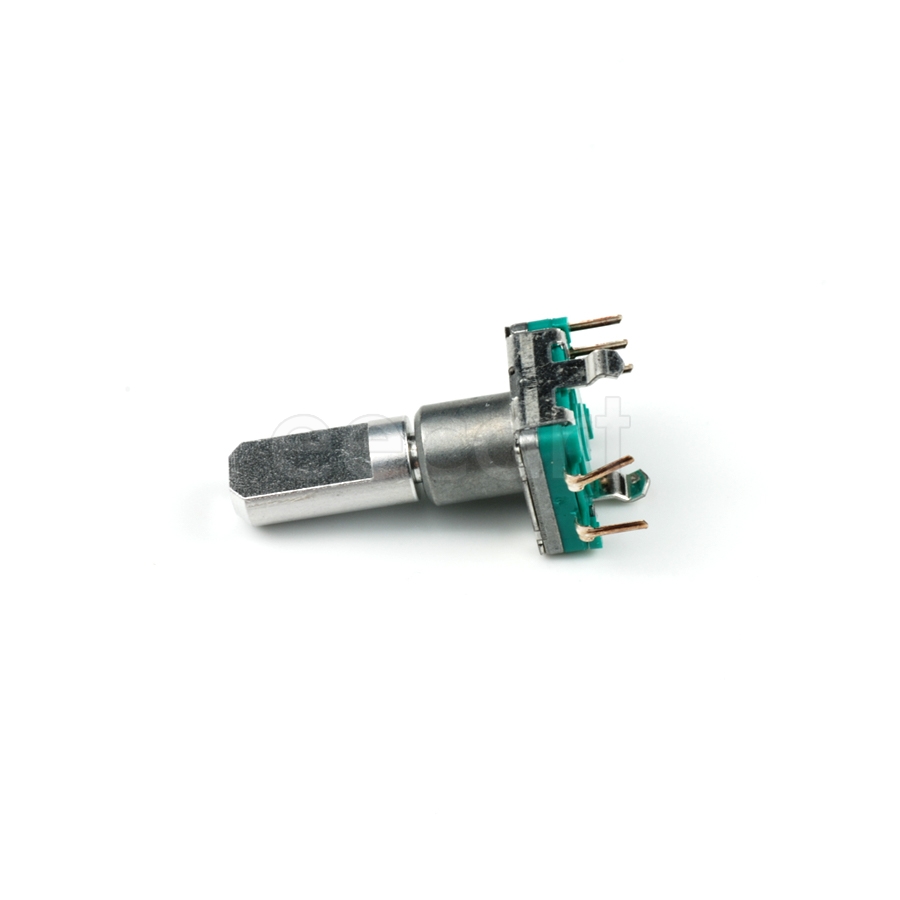

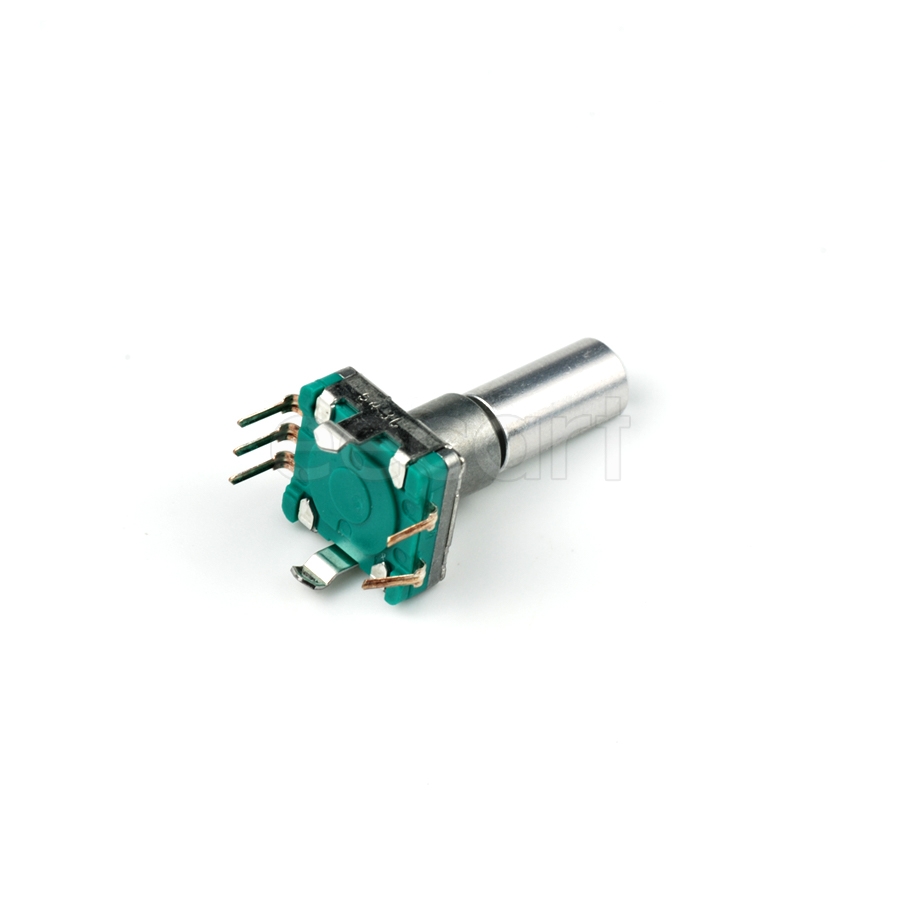

EC11E15244G1
Manufacturer:
ALPS
Mfr.Part #:
EC11E15244G1
Datasheet:
Description:
Encoders Through Hole Incremental 15 PPR number of detents:30 Quadrature Shaft Diameter :6 mm Flatted
| Parameter | Value |
|---|---|
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Packaging | Tray |
| RoHS | Compliant |
| Orientation | Vertical |
| Operating Supply Voltage | 5 V |
| Output Type | Quadrature |
| Hole Diameter | 1.5 mm |
| Max Supply Voltage (DC) | 5 V |
| Number of Channels | 2 |
| Number of Positions | 18 |
| Encoder Type | Incremental |
| Built in Switch | - |
| Pulses per Revolution | 15 |
| Number of Detents | 30 |
| Resolution | 15 PPR |
| Life (Cycles) | 15 kCycles |
| Chemistry/Technology | Rotary |
| Shaft Diameter | 6 mm |
| Shaft Type | Flatted |
Stock: 680
Distributors
pcbx
pcbxUnit Price$2.41603
Ext.Price$2.41603
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.41603 | $2.41603 |
| 10 | $2.26556 | $22.65560 |
| 25 | $1.94667 | $48.66675 |
| 50 | $1.88279 | $94.13950 |
| 100 | $1.82100 | $182.10000 |
| 300 | $1.62971 | $488.91300 |
| 500 | $1.45851 | $729.25500 |
| 1000 | $1.45167 | $1451.67000 |
