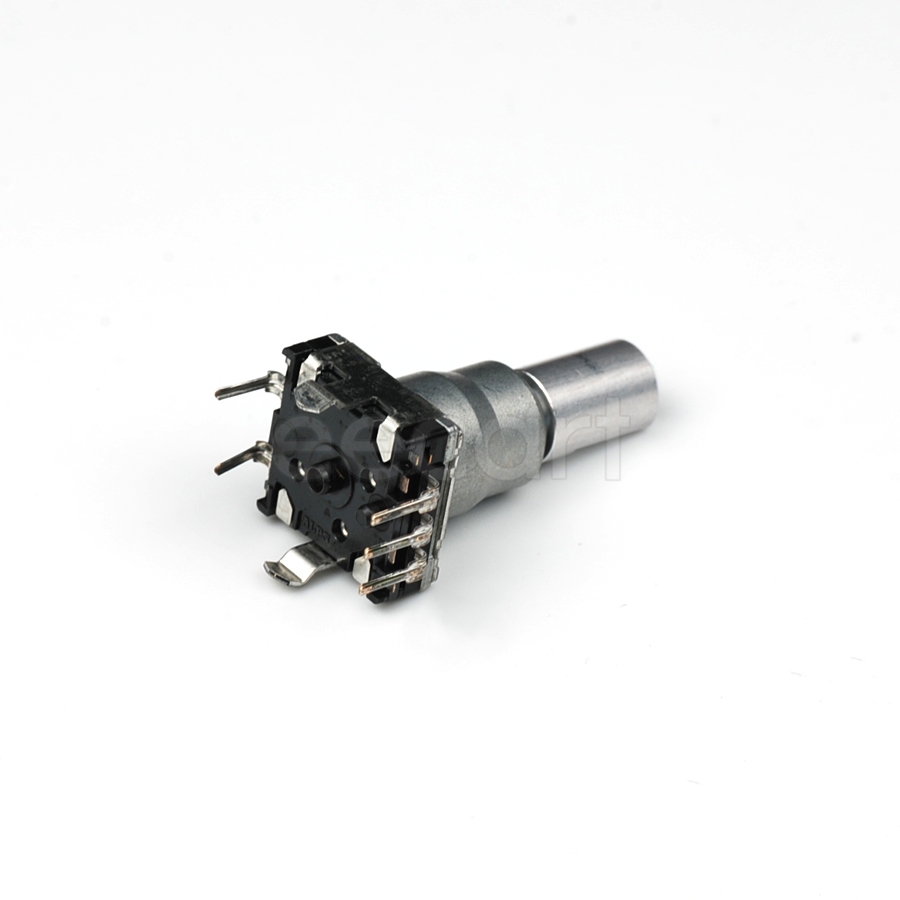

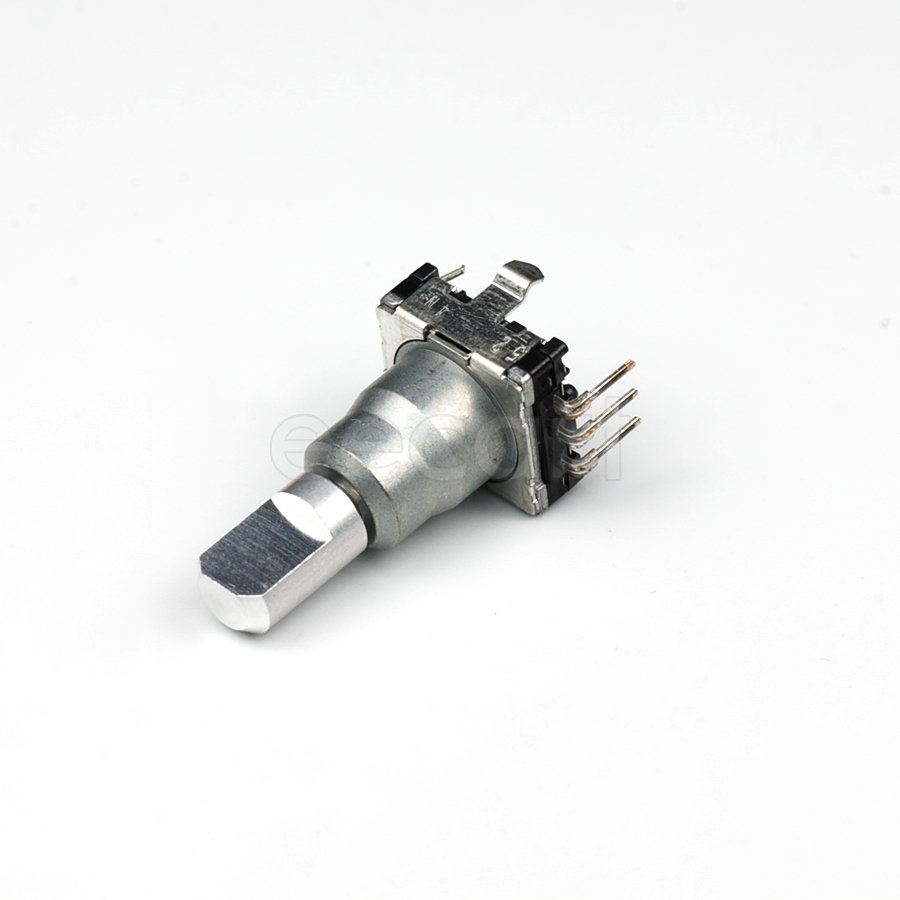

EC11K1524402
Manufacturer:
ALPS
Mfr.Part #:
EC11K1524402
Datasheet:
Description:
Encoders Through Hole Magnetic 15 PPR number of detents:30 Quadrature Shaft Diameter :6 mm Flatted
| Parameter | Value |
|---|---|
| Termination | Through Hole |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Packaging | Tray |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Orientation | Vertical |
| Operating Supply Voltage | 5 V |
| Output Type | Quadrature |
| Hole Diameter | 1.55 mm |
| Max Supply Voltage (DC) | 5 V |
| Number of Channels | 2 |
| Encoder Type | Magnetic |
| Built in Switch | Push/Pull Switch |
| Pulses per Revolution | 15 |
| Number of Detents | 30 |
| Actuator Type | |
| Resolution | 15 PPR |
| Life (Cycles) | 10 kCycles |
| Chemistry/Technology | Rotary |
| Shaft Diameter | 6 mm |
| Shaft Type | Flatted |
