ECA-1CM221
Manufacturer:
Panasonic
Mfr.Part #:
ECA-1CM221
Datasheet:
Description:

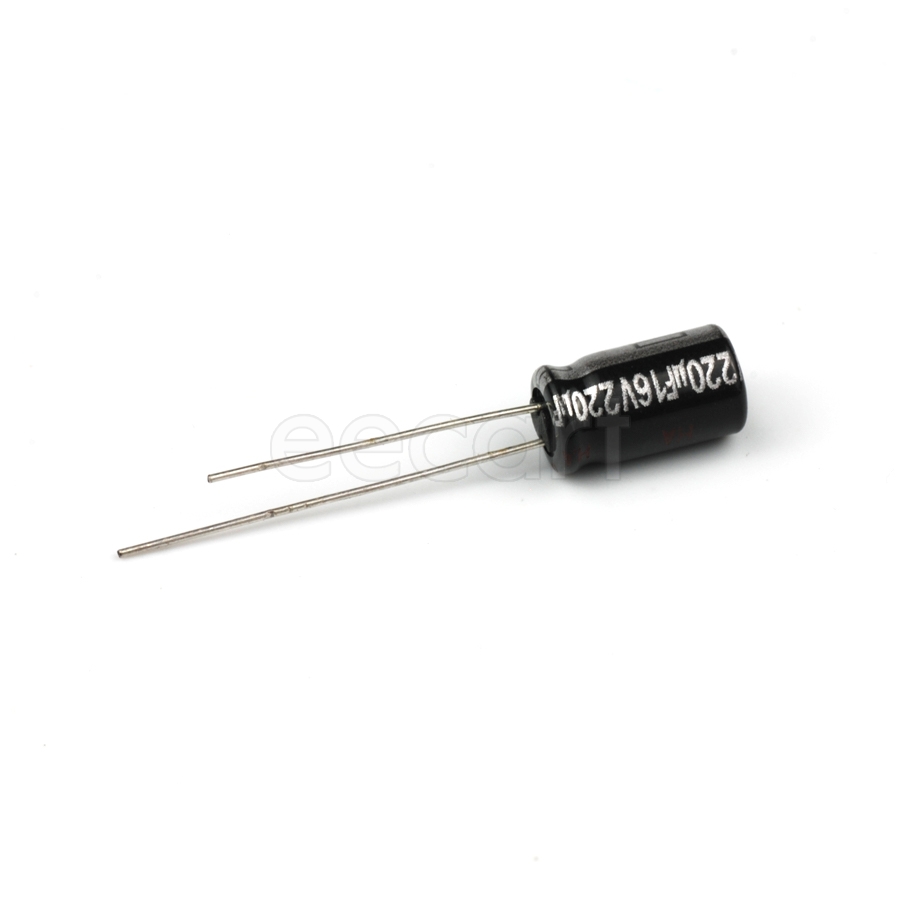

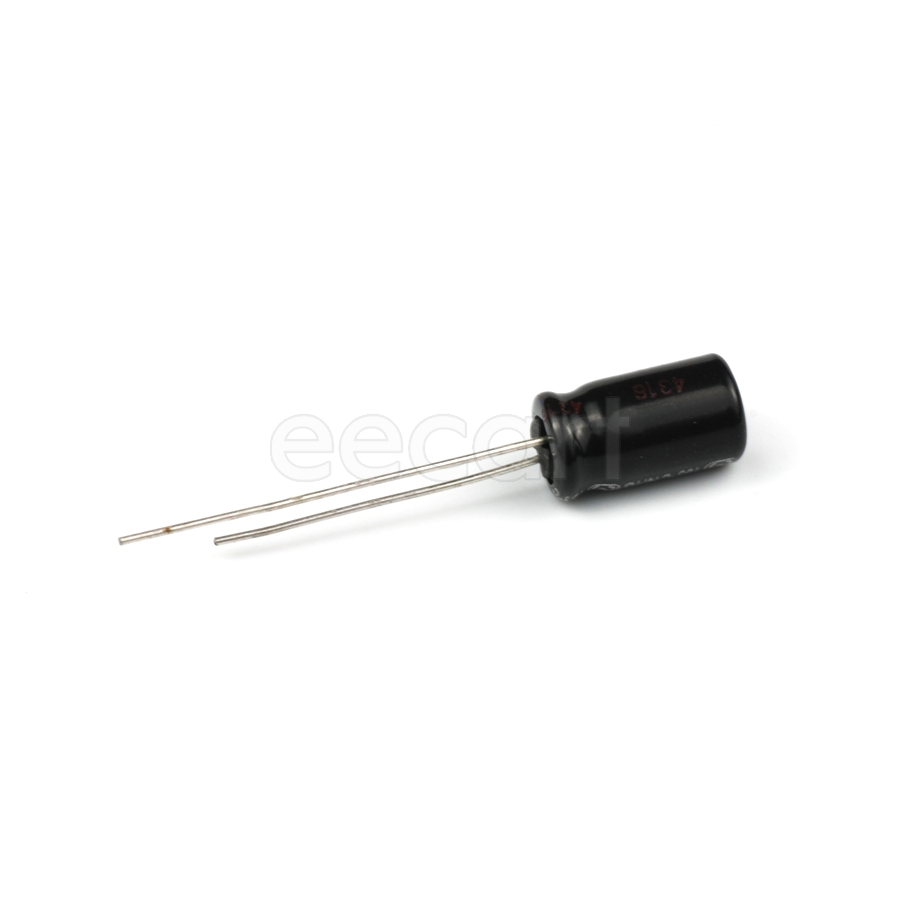

Aluminum Electrolytic Capacitors Radial,6.30mm×11.20mm Through Hole 220 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 220 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 280 mA |
| Height - Seated (Max) | 12.2 mm |
| Length | 11.2 mm |
| Termination | Radial |
| Diameter | 6.3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Voltage Rating (AC) | 16 V |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.2 % |
| Height | 11.2 mm |
| Packaging | Bulk |
| Voltage Rating | 16 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 500 µm |
| Lead Pitch | 2.5 mm |
| Voltage | 16 V |
| REACH SVHC | No SVHC |
| Ripple Current (AC) | 280 mA |
| Lead/Base Style | Straight |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Ripple Current @ High Frequency | 476 mA @ 10 kHz |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
Stock: 7898
Distributors
pcbx
pcbxUnit Price$0.16244
Ext.Price$0.16244
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16244 | $0.16244 |
| 10 | $0.07070 | $0.70700 |
| 50 | $0.05486 | $2.74300 |
| 100 | $0.04257 | $4.25700 |
| 500 | $0.03896 | $19.48000 |
| 1000 | $0.03565 | $35.65000 |
| 3000 | $0.03167 | $95.01000 |
| 5000 | $0.02813 | $140.65000 |
| 10000 | $0.02693 | $269.30000 |
