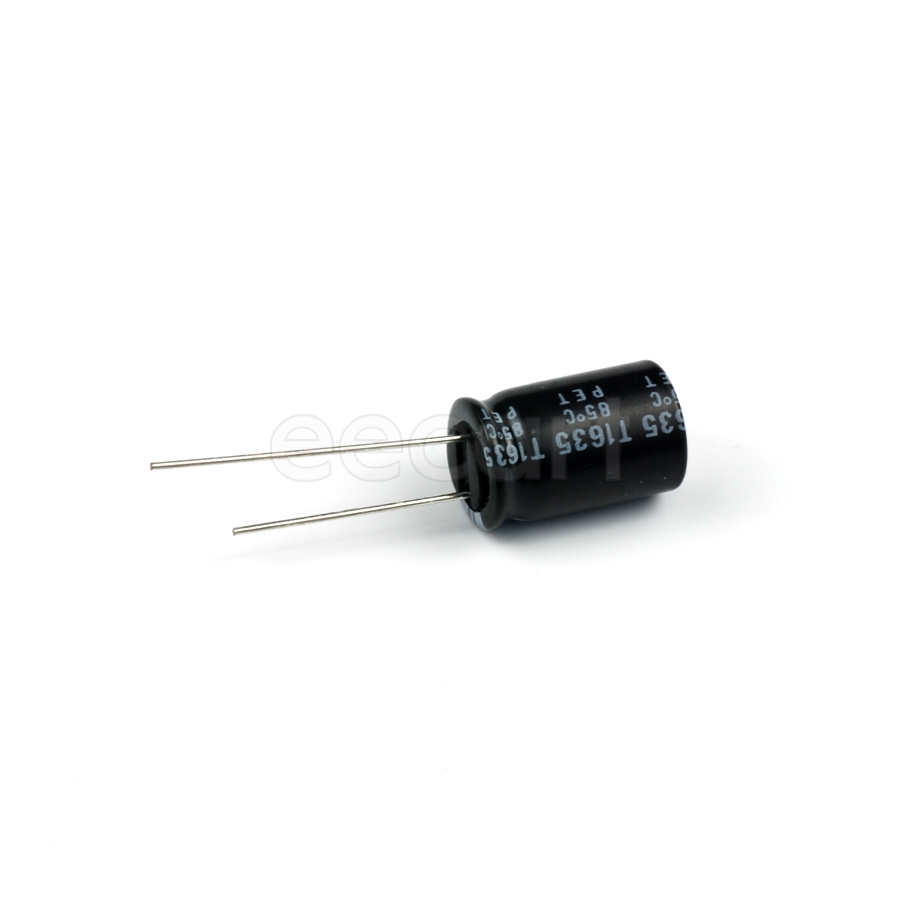

ECA-1EM471
Manufacturer:
Panasonic
Mfr.Part #:
ECA-1EM471
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial,10.00mm×12.50mm Through Hole 470 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 470 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| Life (Hours) | 2000 Hours |
| Ripple Current | 480 mA |
| Height - Seated (Max) | 12.5 mm |
| Length | 12.5 mm |
| Termination | Radial |
| Diameter | 10 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 2 |
| Leakage Current | 3 µA |
| Dissipation Factor | 0.16 % |
| Height | 12.5 mm |
| Packaging | Bulk |
| Voltage Rating | 25 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 600 µm |
| Lead Pitch | 5 mm |
| Voltage | 25 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Aluminium |
| Contact Plating | Tin |
| Lead/Base Style | Straight |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ Low Frequency | 480 mA @ 120 Hz |
| Ripple Current @ High Frequency | 816 mA @ 10 kHz |
Stock: 5651
Distributors
pcbx
pcbxUnit Price$0.23767
Ext.Price$0.23767
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23767 | $0.23767 |
| 10 | $0.13764 | $1.37640 |
| 50 | $0.12273 | $6.13650 |
| 100 | $0.10943 | $10.94300 |
| 500 | $0.10098 | $50.49000 |
| 1000 | $0.09319 | $93.19000 |
| 3000 | $0.09015 | $270.45000 |
| 5000 | $0.08720 | $436.00000 |
| 10000 | $0.07198 | $719.80000 |
