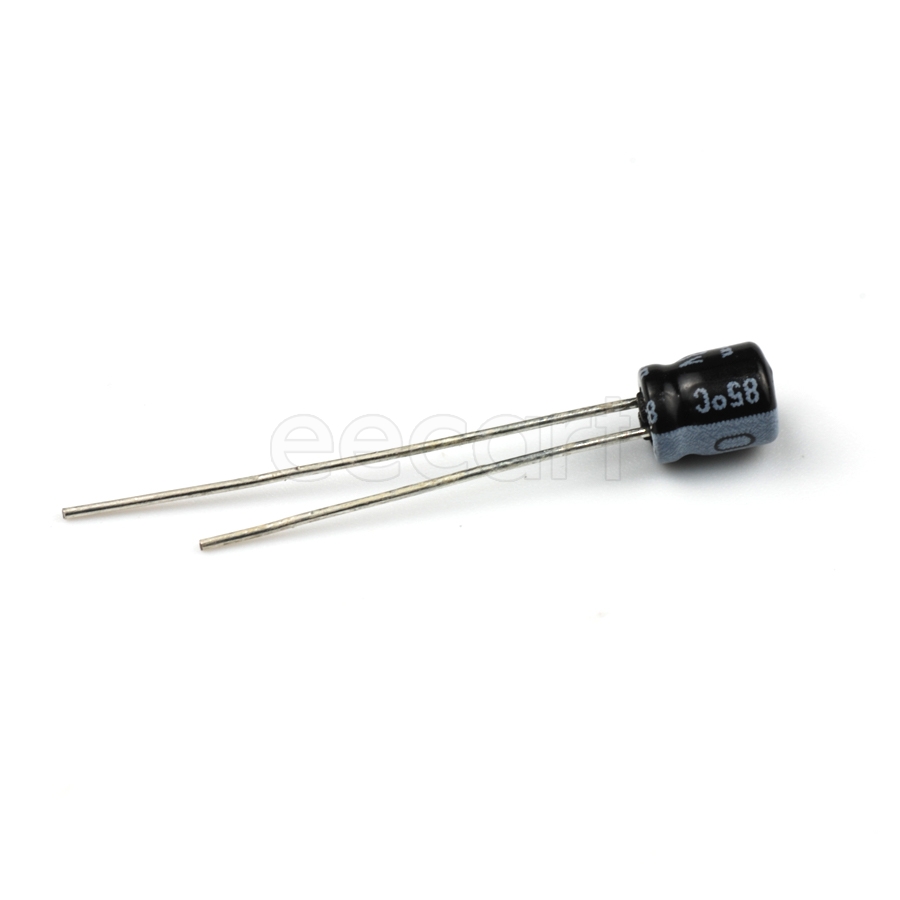

ECE-A1EKS4R7I
Manufacturer:
Panasonic
Mfr.Part #:
ECE-A1EKS4R7I
Datasheet:
Description:
Aluminum Electrolytic Capacitors Radial,4.00mm×5.00mm Through Hole 4.7 µF 20 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 4.7 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 20 % |
| Life (Hours) | 1000 Hours |
| Ripple Current | 22 mA |
| Height - Seated (Max) | 5 mm |
| Length | 5 mm |
| Termination | Radial |
| Diameter | 4 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 5 mm |
| Packaging | Ammo Pack |
| Voltage Rating | 25 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Diameter | 450 µm |
| Lead Pitch | 2.5 mm |
| Contact Plating | Tin |
| Lifecycle Status | Production (Last Updated: 5 months ago) |
| Ripple Current @ Low Frequency | 22 mA @ 120 Hz |
Stock: 3675
Distributors
pcbx
pcbxUnit Price$0.15047
Ext.Price$0.15047
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.15047 | $0.15047 |
| 10 | $0.06574 | $0.65740 |
| 50 | $0.06150 | $3.07500 |
| 100 | $0.05754 | $5.75400 |
| 500 | $0.04377 | $21.88500 |
| 1000 | $0.03941 | $39.41000 |
| 3000 | $0.03497 | $104.91000 |
| 5000 | $0.03103 | $155.15000 |
| 10000 | $0.02753 | $275.30000 |
