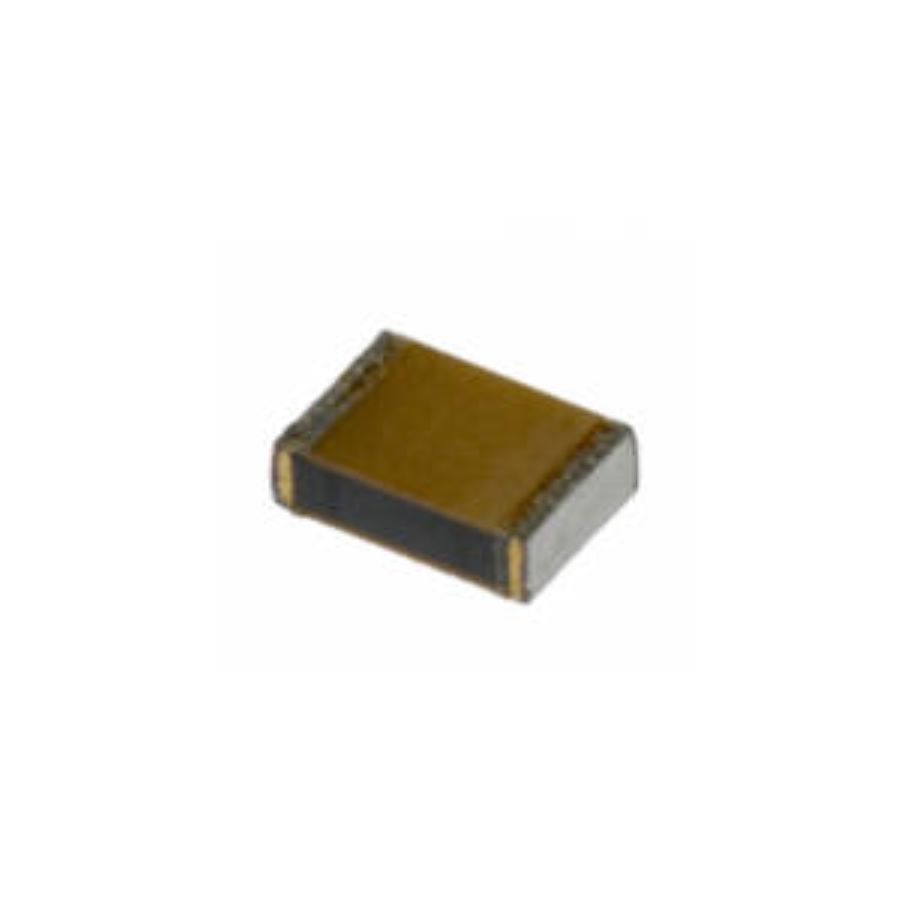

ECHU1H473JX9
Manufacturer:
Panasonic
Mfr.Part #:
ECHU1H473JX9
Datasheet:
Description:
Film Capacitors SMD/SMT 47 nF 5 % Polyphenylene Sulfide (PPS) Voltage Rating (DC):50 V Voltage Rating (AC):50 V
| Parameter | Value |
|---|---|
| Capacitance | 47 nF |
| Voltage Rating (DC) | 50 V |
| Tolerance | 5 % |
| Life (Hours) | 500 Hours |
| Height - Seated (Max) | 1.7 mm |
| Length | 4.8 mm |
| Width | 3.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Dielectric | Polyphenylene Sulfide (PPS) |
| Case Code (Imperial) | 1913 |
| Case Code (Metric) | 4833 |
| Voltage Rating (AC) | 50 V |
| Number of Pins | 2 |
| Height | 1.5 mm |
| Packaging | Reel |
| Voltage Rating | 50 V |
| Depth | 3.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 50 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Polyphenylene |
| Contact Plating | Copper, Silver, Tin |
| Schedule B | 8532250080 |
