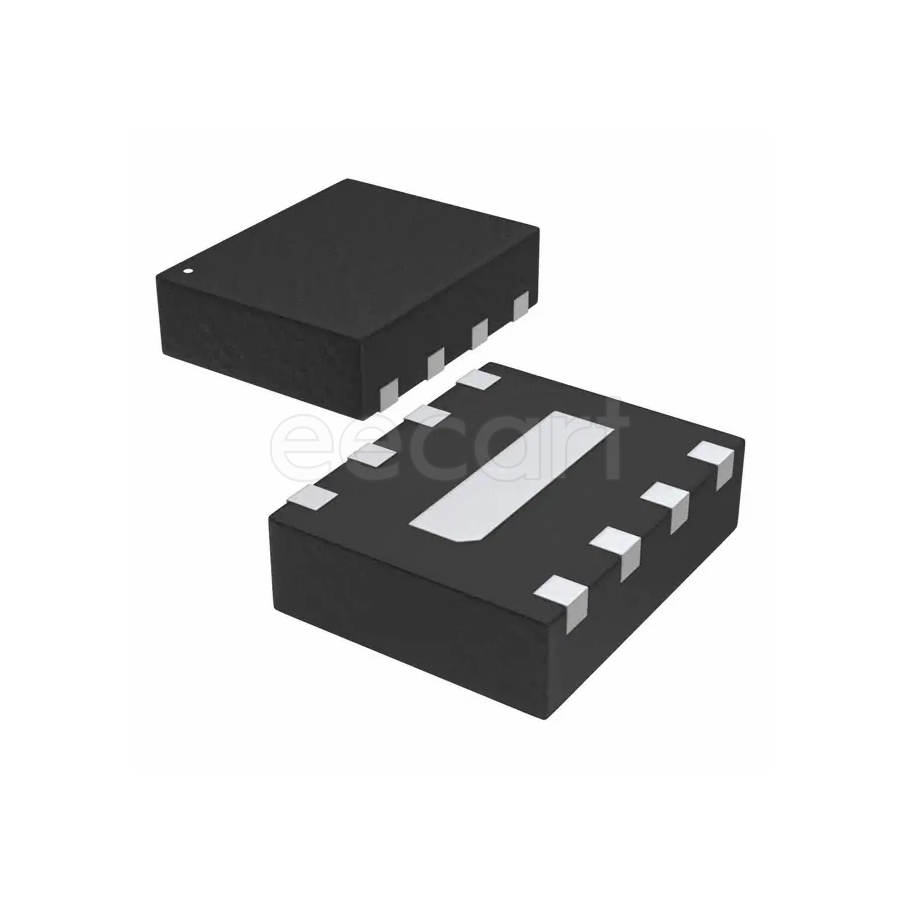

ECLAMP2465T.TCT
Manufacturer:
Semtech
Mfr.Part #:
ECLAMP2465T.TCT
Datasheet:
Description:
ESD and Circuit Protection ICs SLP1713P8T-8 SMD/SMT Working Voltage:5 V Breakdown Voltage:6 V 12 pF
| Parameter | Value |
|---|---|
| Length | 1.7018 mm |
| Width | 1.2954 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Leakage Current | 500 nA |
| Height | 431.8 µm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional |
| Number of Elements | 4 |
| Working Voltage | 5 V |
| Number of Channels | 3 |
| Max Reverse Leakage Current | 500 nA |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 6 V |
| Reverse Standoff Voltage | 5 V |
| Reverse Breakdown Voltage | 6 V |
| ESD Protection | Yes |
| Test Current | 1 mA |
| Voltage ESD Contact | 8 kV |
| Voltage ESD Air Gap | 15 kV |
| Diode Capacitance | 12 pF |
| Breakdown Voltage | 6 V |
Stock: 282
Distributors
pcbx
pcbxUnit Price$0.54459
Ext.Price$0.54459
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54459 | $0.54459 |
| 10 | $0.38643 | $3.86430 |
| 25 | $0.36851 | $9.21275 |
| 50 | $0.35142 | $17.57100 |
| 100 | $0.33513 | $33.51300 |
| 300 | $0.32515 | $97.54500 |
| 500 | $0.31547 | $157.73500 |
| 1000 | $0.29580 | $295.80000 |
| 3000 | $0.26503 | $795.09000 |
| 5000 | $0.25990 | $1299.50000 |
