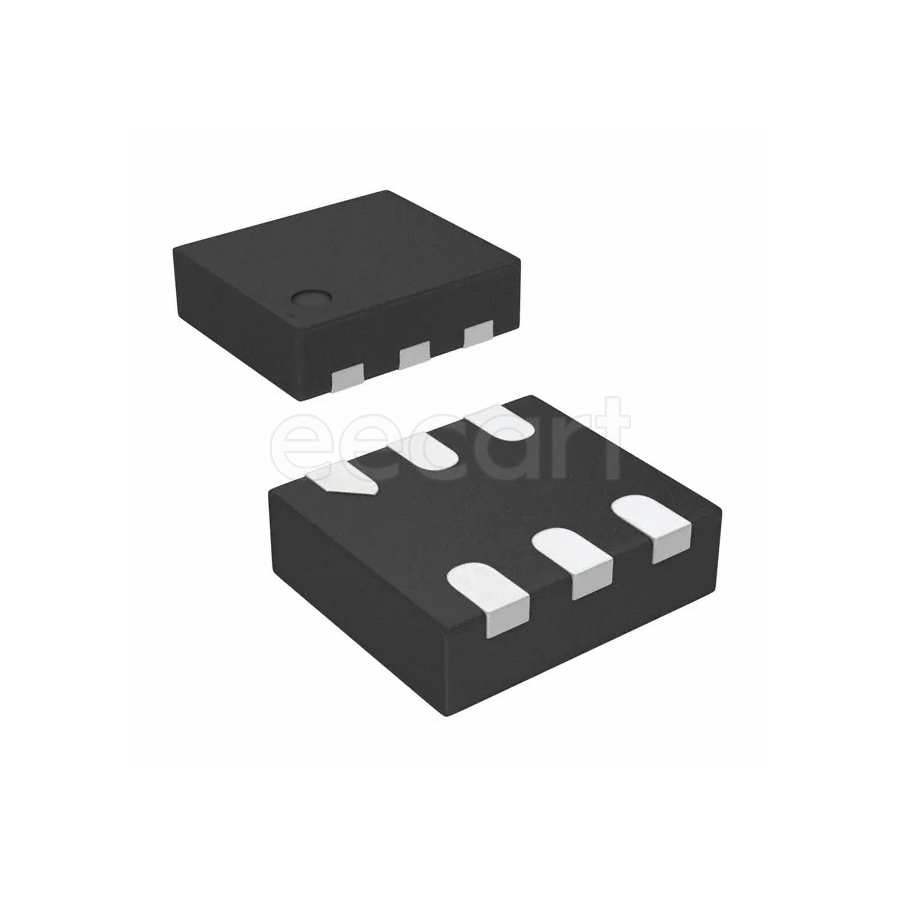

ECMF02-2AMX6
Manufacturer:
STMicroelectronics
Mfr.Part #:
ECMF02-2AMX6
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:200 mA Number of Lines:2 2.5 Ω
| Parameter | Value |
|---|---|
| Length | 1.7 mm |
| Width | 1.5 mm |
| Termination | Flat |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 550 µm |
| Packaging | Reel |
| Depth | 1.55 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Current | 200 mA |
| Current Rating | 200 mA |
| DC Resistance (DCR) | 2.5 Ω |
| Max Current Rating | 200 mA |
| Bandwidth | 6 GHz |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Number of Lines | 2 |
| Min Breakdown Voltage | 6 V |
| Max Junction Temperature (Tj) | 125 °C |
| Attenuation Value | -34 dB |
| Series Resistance | 2.5 Ω |
| Schedule B | 8504500000 |
Stock: 5470
Distributors
pcbx
pcbxUnit Price$0.42643
Ext.Price$0.42643
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.42643 | $0.42643 |
| 10 | $0.33091 | $3.30910 |
| 25 | $0.29826 | $7.45650 |
| 50 | $0.26883 | $13.44150 |
| 100 | $0.24231 | $24.23100 |
| 300 | $0.23053 | $69.15900 |
| 500 | $0.21932 | $109.66000 |
| 1000 | $0.20554 | $205.54000 |
